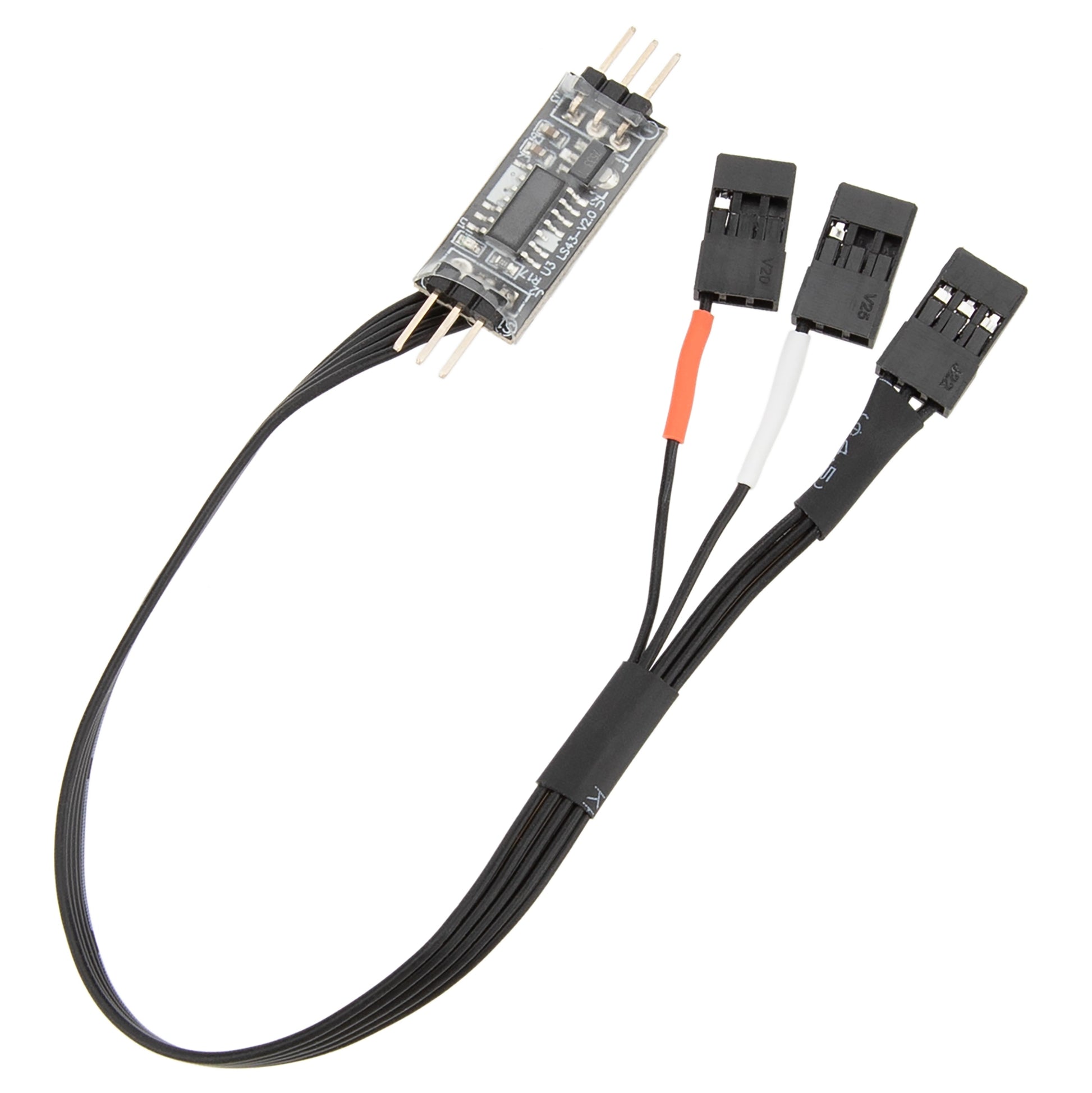

MEUS Racing 4WS Four-Wheel Steering Control Line Upgrades with Control Board & Servo Control Lines for SCX10 TRX4 SCX24 TRX4M

MEUS Racing 4WS Four-Wheel Steering Control Line Upgrades with 4WS Control Board, and Servo Control Line for 4WS car models such as 1/10 SCX10, TRX-4, 1/8 Redcat Gen, 1/24 SCX24, and 1/18 TX4M, etc.

Key Features:

• Enable four-wheel steering to bring your crawler to the next level without a high-cost transmitter.
• Not compatible with the stock TRX4M transmitter, the transmitter must have CH2 and CH3.
• Four optional modes:
  1. Front wheel steering (rear servo locked),
  2. Rear wheel steering (front servo locked),
  3. Four-wheel steering(same direction),
  4. Four-wheel steering(opposite direction)

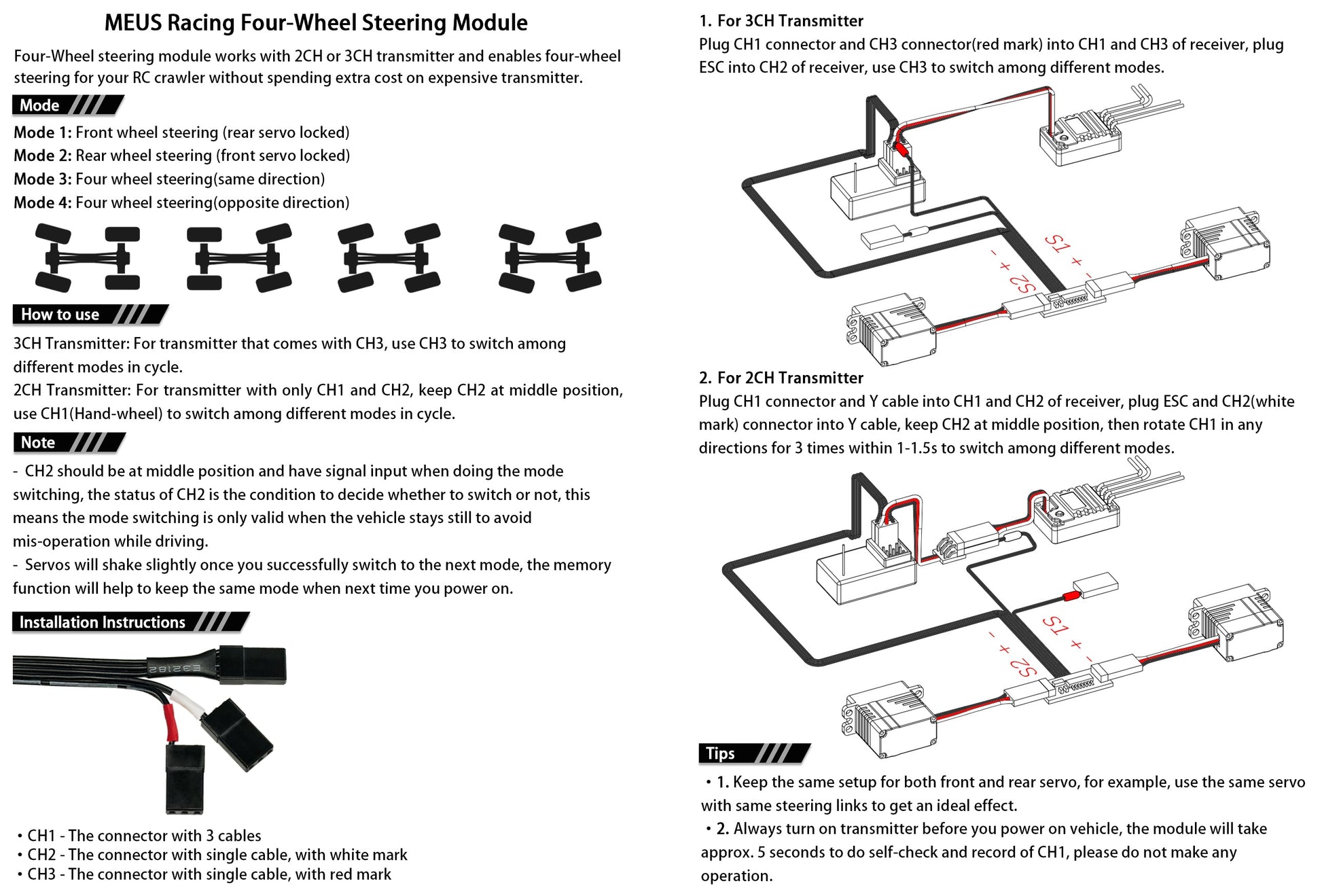

• Two methods to switch among different modes:
  (1) Plug in CH1 and CH3, press CH3 button to switch modes
  (2) Plug in CH1 and CH2, keep the throttle at the middle position, and make sure there is a signal at CH2.
• Fast-rotate (1-1.5s) the wheel clockwise or counter-clockwise three times to switch modes, which means you can’t switch modes while the crawler is running, and it also prevents you from misoperation while running.

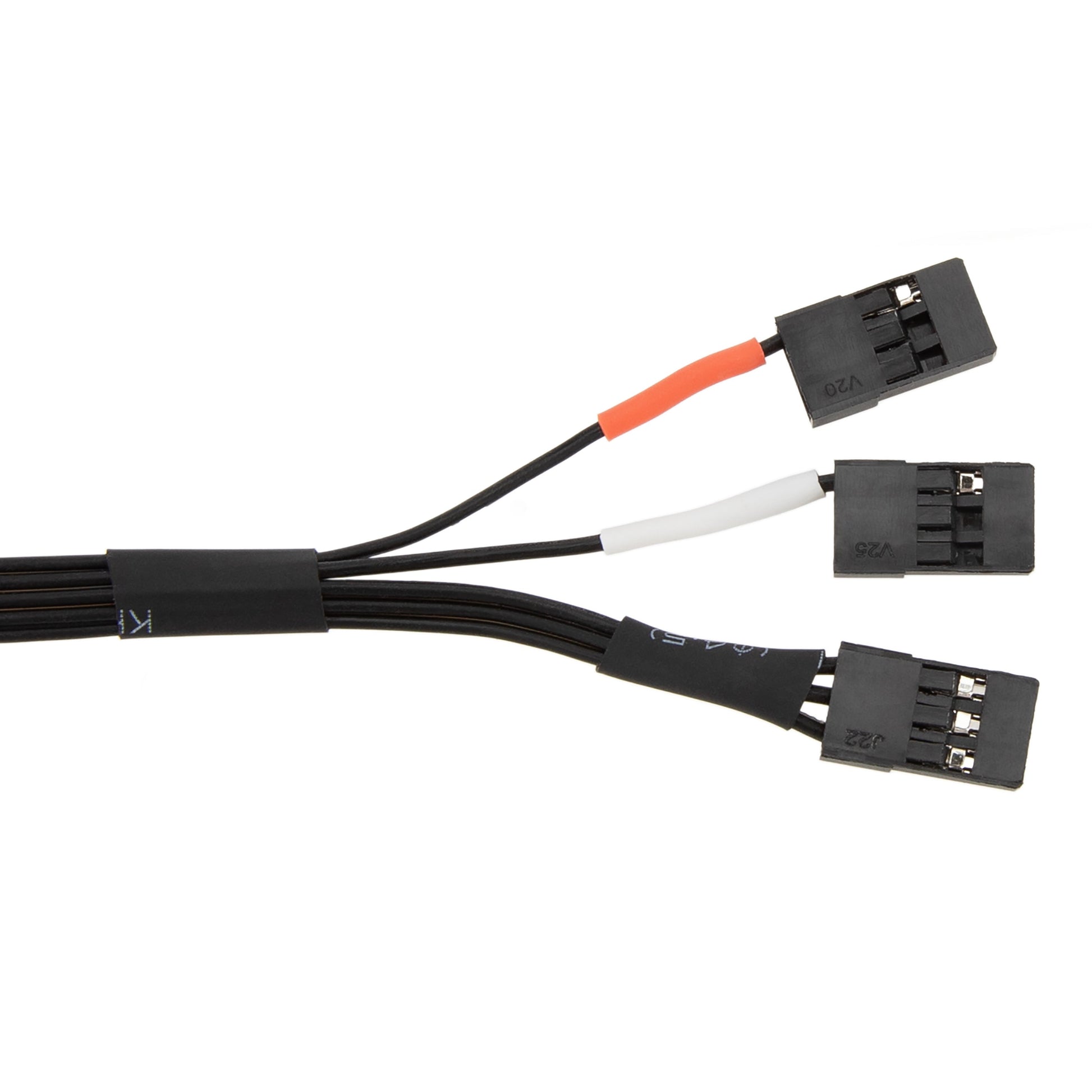

• CH1: Black; CH:2 White; CH3: Red.

Package List:

1 × 4WS cable
