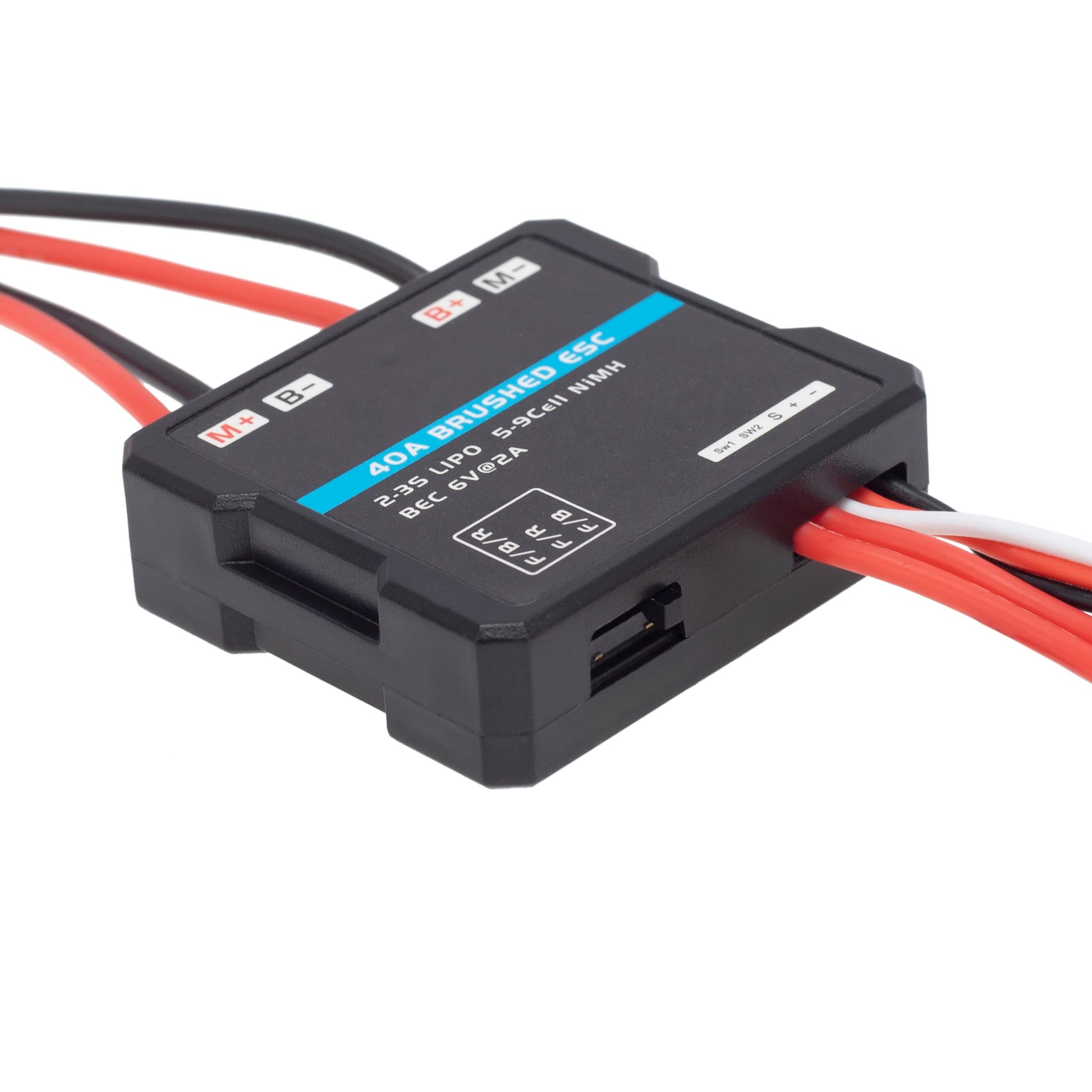

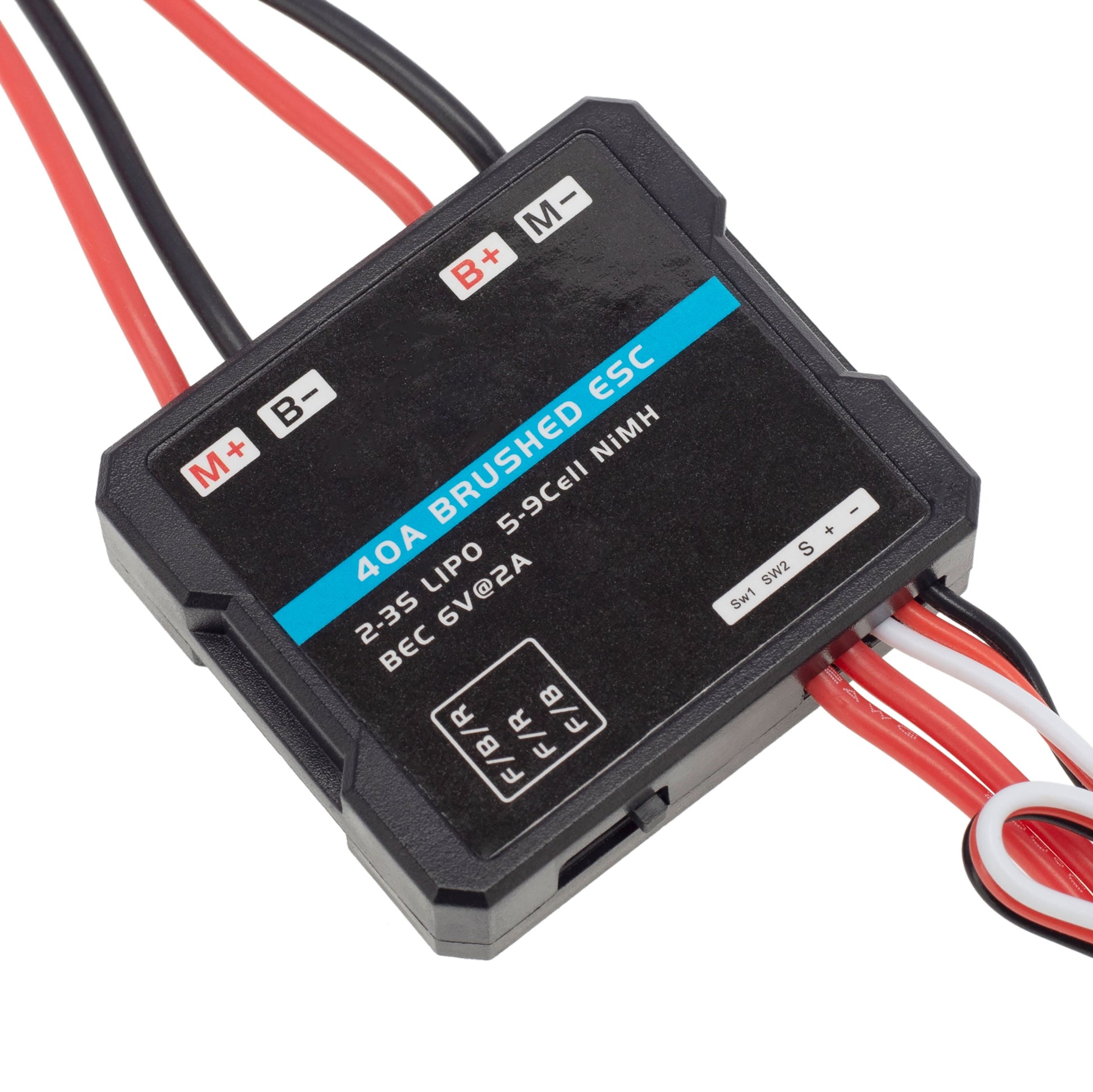

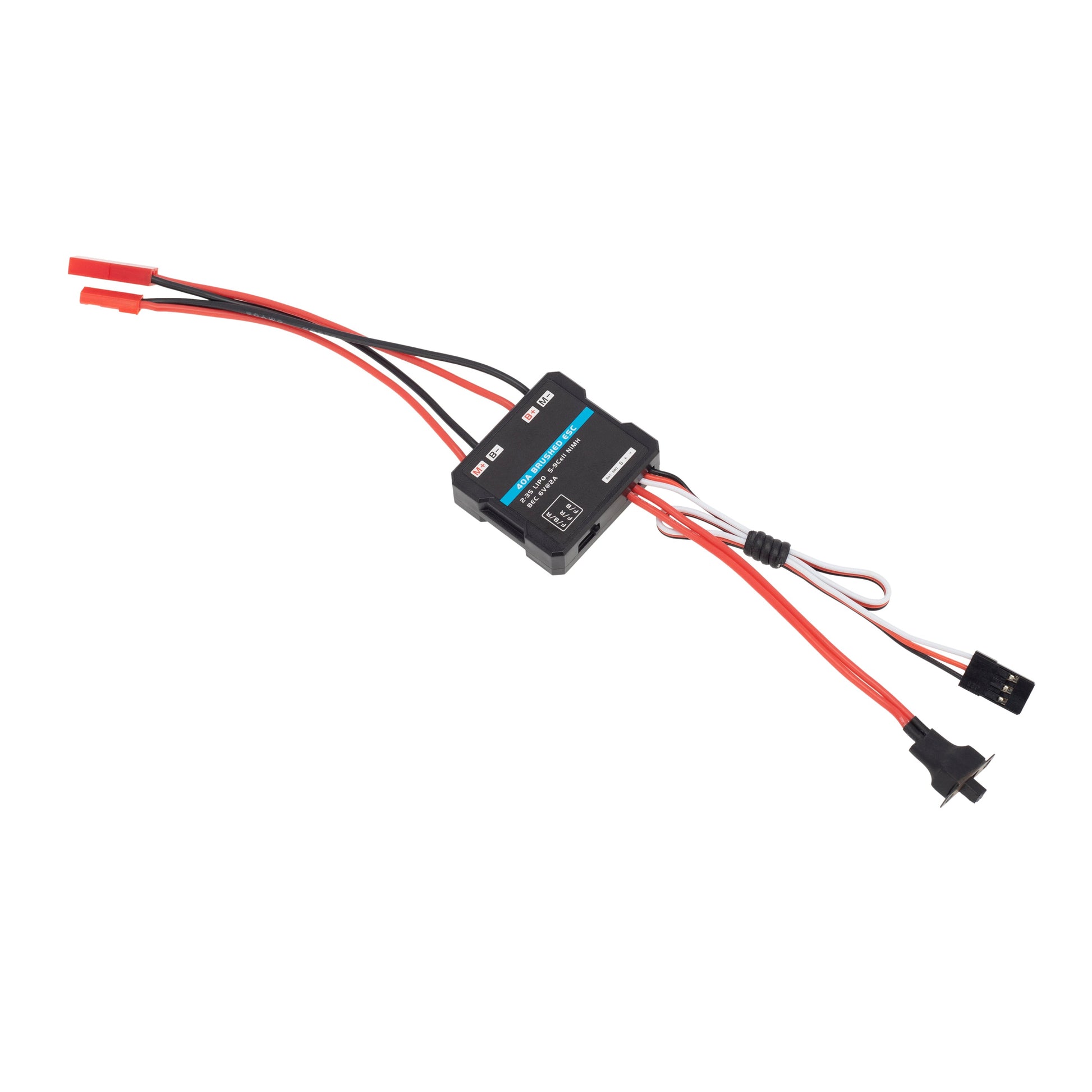

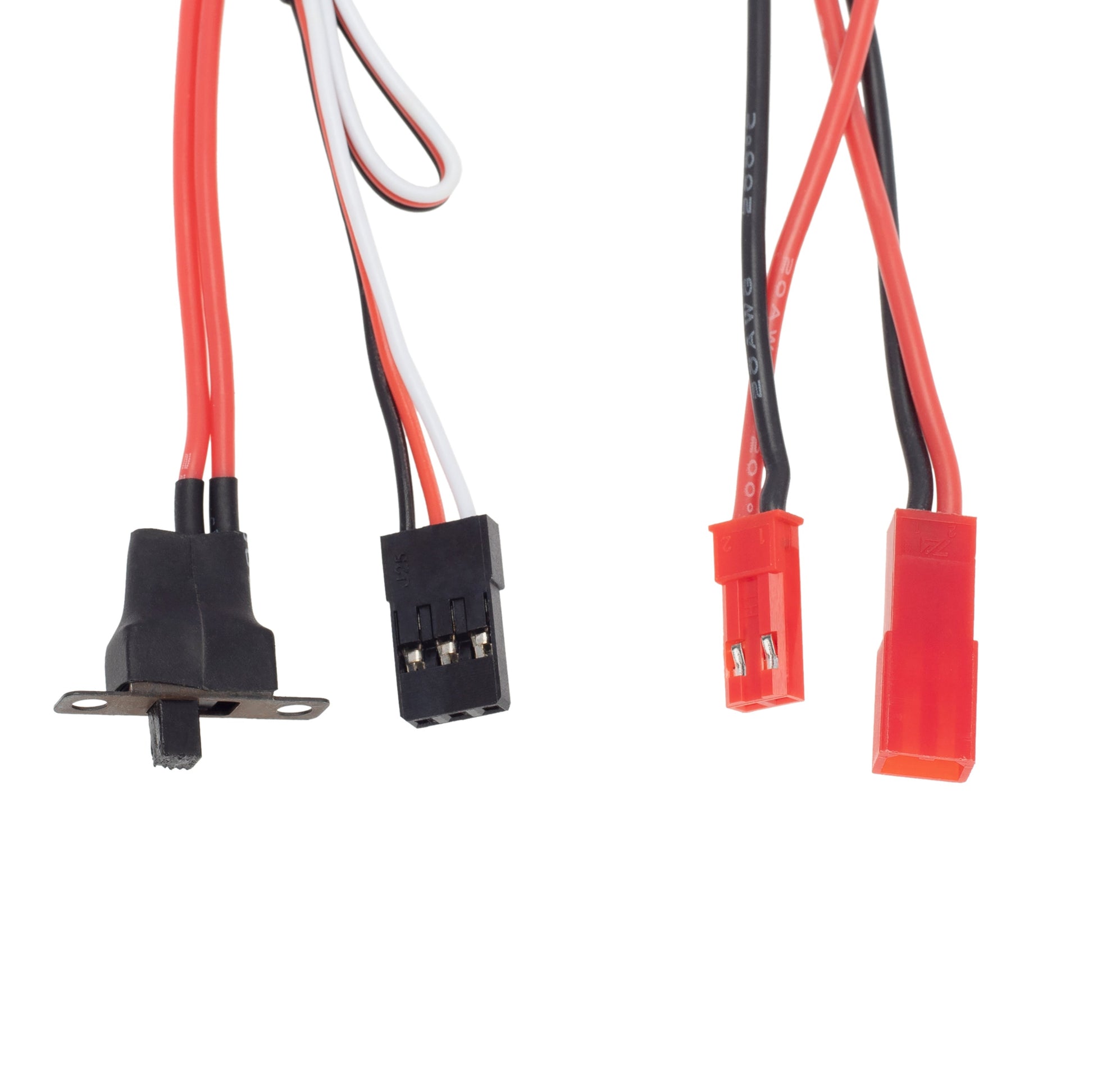

MEUS Racing Brushed ESC 40A RC Motor Electric Speed Controller for SCX24 AX24 TRX4M FCX24 FCX18 2PCS

MEUS Racing Brushed ESC 40A RC Motor Electric Speed Controller for 1/16 1/18 1/24 RC Crawler SCX24 AX24 TRX4M FCX24 FCX18 RC Accessories Parts.

Key Features:

• 1. It is designed for smoother and more precise driving, perfect for navigating challenging terrains.
• 2. Support 2-3S LIPO or 4-9 NIMH batteries 6-12.4V. High effect output 40A, compatible with 030 050 130 180 380 370 and other RC motors.
• 3. Suitable for RC Crawler such as 1/16 1/18 1/24 SCX24 AX24 TRX4M FCX24 FCX18 etc.
• 4. Note: 6V or 2S-lipo motor speed should not be higher than 30000@7.2V, and 12V or 3S motor speed should not be higher than 20000@7.2V.
• 5. Multiple Protections including battery low-voltage protection, overheat protection, throttle signal loss protection, BEC over-current protection, and short circuit protection ensure a safe and reliable operation.
• 6. Mainly applicable models: 1/16 1/18 Electric touring car/Electric off-road vehicle/Trolley: electric touring car, electric off-road vehicle, short truck, truck, truck, climbing car, tank.
• This ESC works with MEUS Racing ME-8B RC Transmitter, just plug and play into the transmitter.

Specifications:

• Support: Motor/T numbers.

• 2 lithium batteries or 6 nickel hydrogen: 280, 370, or 380 size motor RPM is lower than 30000@7.2V.

• 3-cell lithium battery or 9-cell Ni-MH: 280, 370 or 380 size motor RPM is lower than 20000@7.2V.

• BEC output: 3A / 6V (switching regulator mode).

• Operating mode: one-way/two-way / Climbing.

• Forward: continuous current/peak current 40A/160A.

• Reverse: continuous current/peak current 20A/80A.

• Support voltage range: 2-3 Lipo or 5-9 NiMH batteries.
• Material: Composite material.

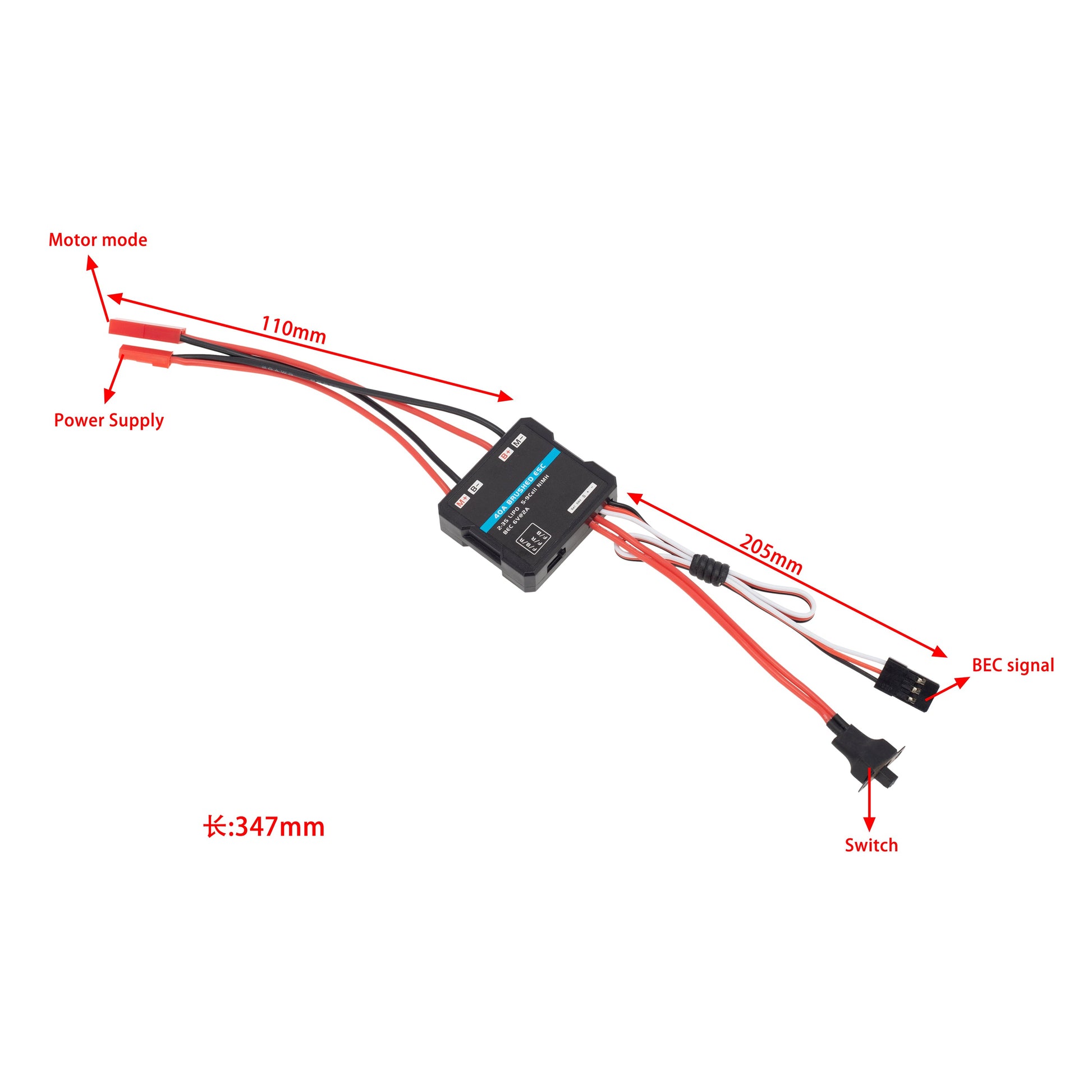

• ESC size: 36*31.7*16mm

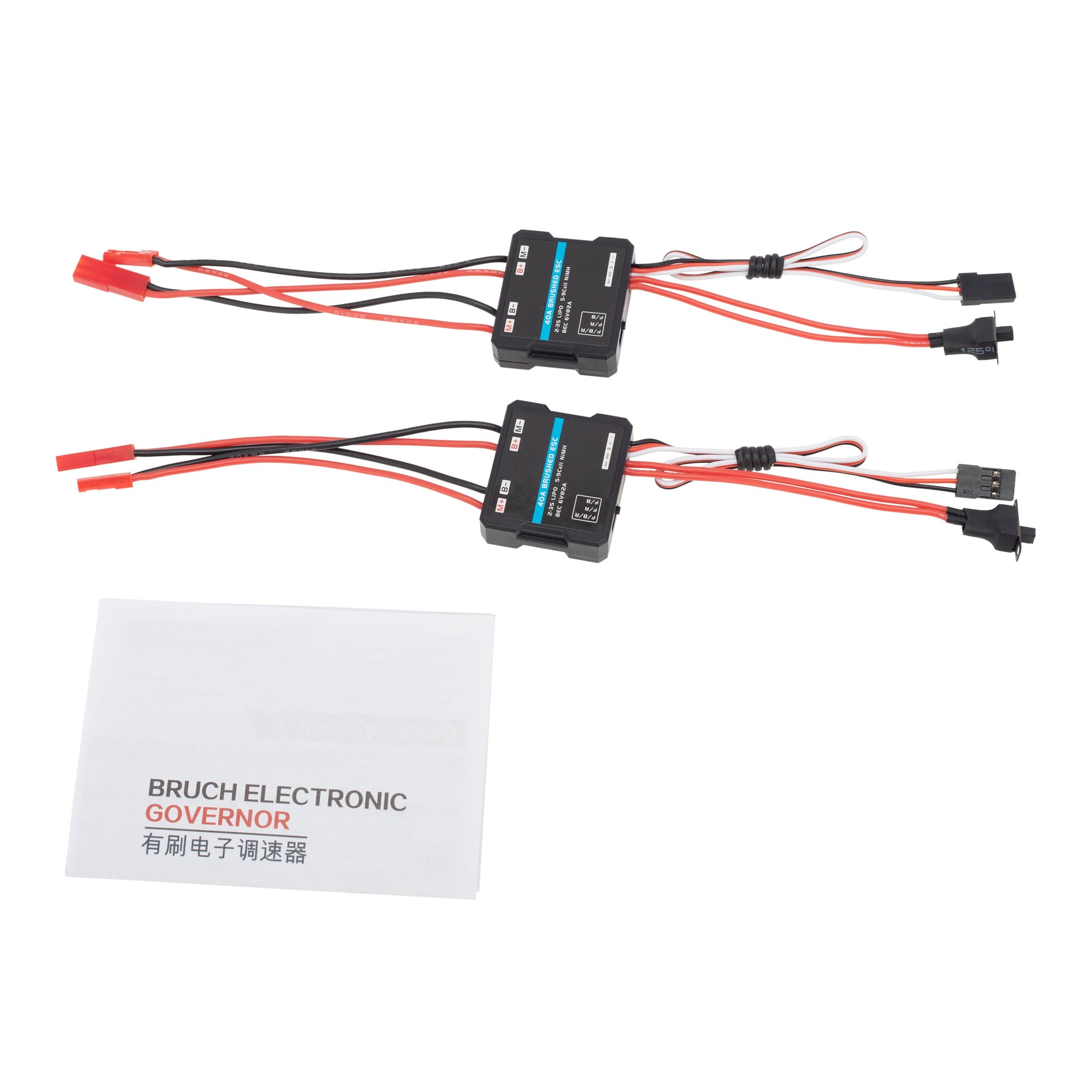

Package list:

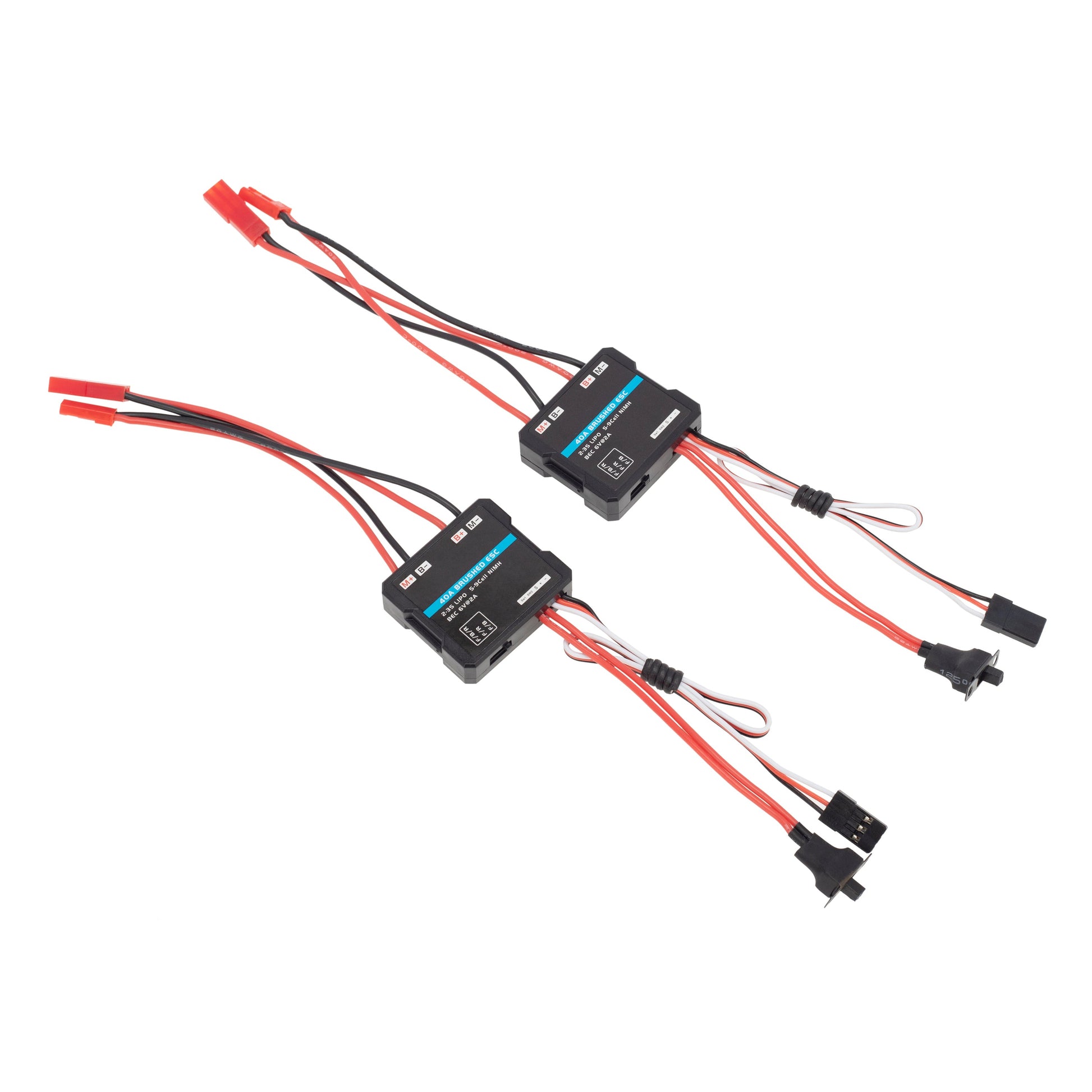

• 2 x 40A Brushed ESC

• 1 x User Manual
