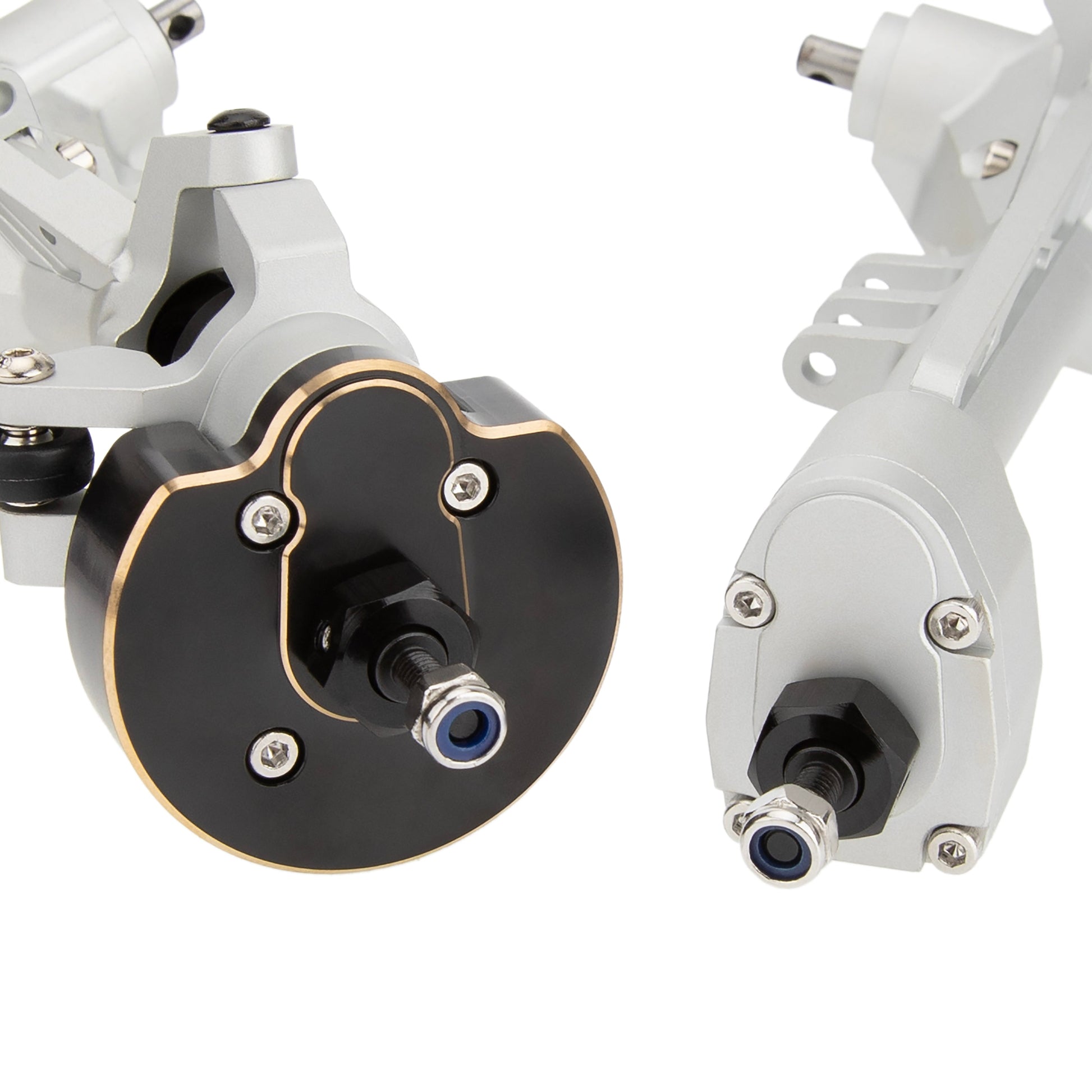

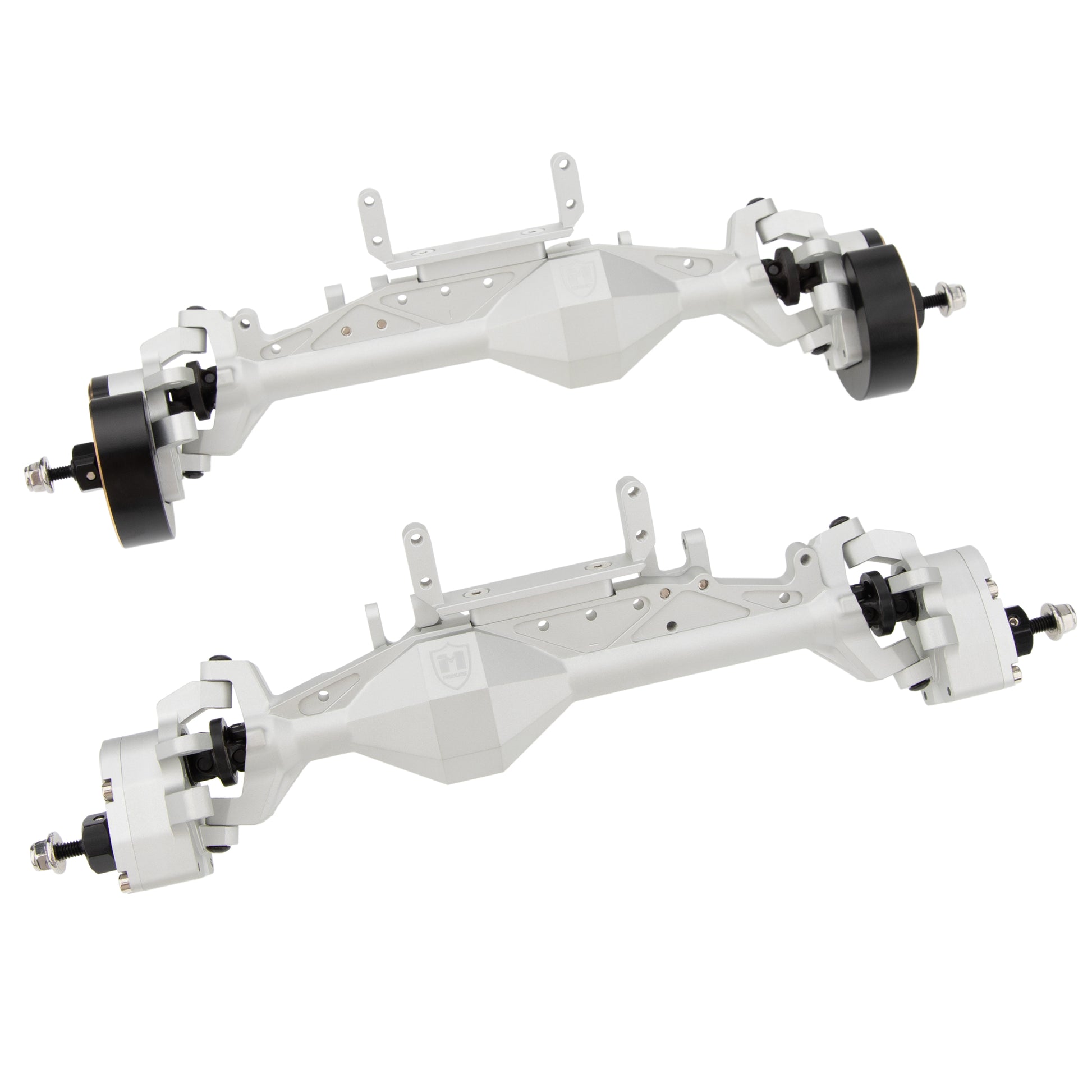

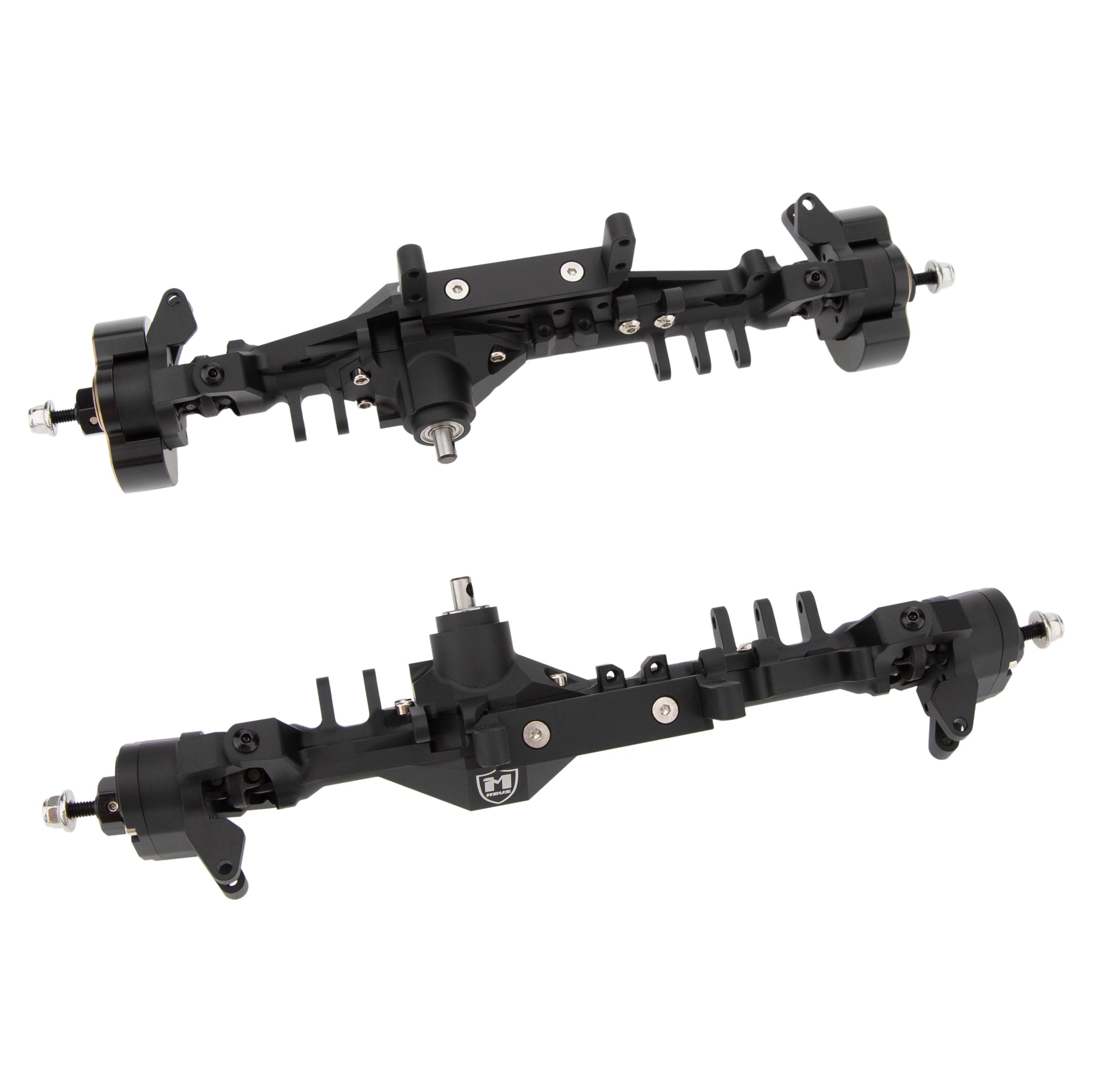

MEUS Racing CHEAT CODE Capra 1.9 Isokinetic Axles Kit for Axial Capra 1.9 UTB and DIY SCX10 SCX10 II Upgrades Parts

MEUS Racing CHEAT CODE Capra 1.9 UTB Isokinetic Axles Kit (Shorter version) for Axial Capra 1.9 4X4 and DIY SCX10 SCX10 II Upgrades Parts.

Key Features:

• 1. This CHEAT CODE version is specially designed for Capra 1.9 and DIY SCX10 SCX10 II chassis with lots of amazing upgrades and features.

• 2. Comes with modified wheel distance, 5mm shorter at the front and 10mm shorter at the rear than the normal version, making it easier to pass some narrower places to win points!

• 3. The thickened CVD brings better strength to overcome larger loads and tough terrains.

• 4. Made of high-quality aluminum alloy, equipped with 40CR 6mm output shaft(longer than 5mm stock shaft, fixed with M4 nut) and 20CR 8T-30T gears for greater hardness and durability.

• 5. US patented (Patent No.: US D1,053,707 S) Isokinetic 3-section CVD ensures that there are no jerks when turning at large angles, 52° max: steering angle, default max.

• 6. The steering angle is 48°, and it can be upgraded to 55° by grinding the limit structure on the steering knuckles and modifying ET to get a wider wheelbase.

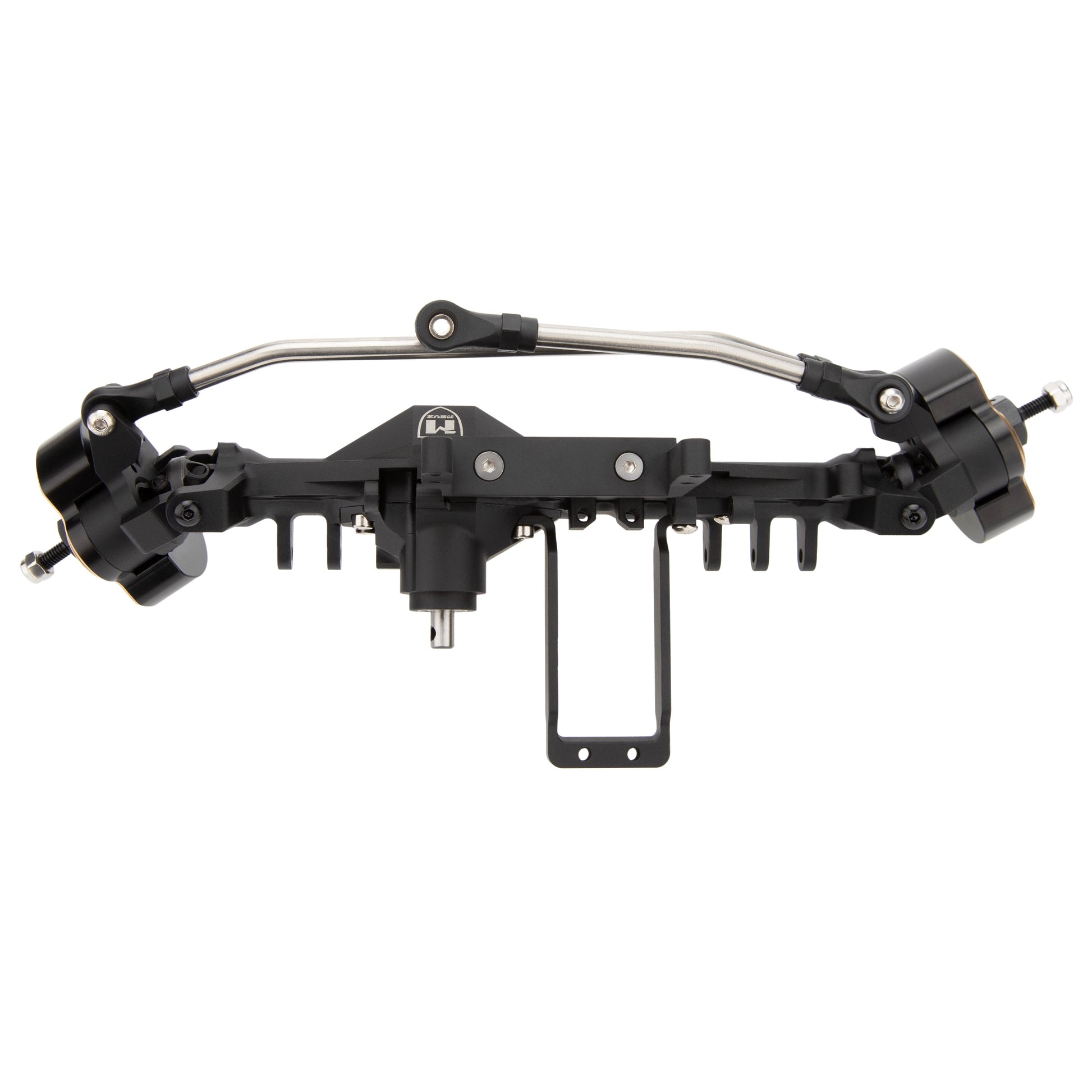

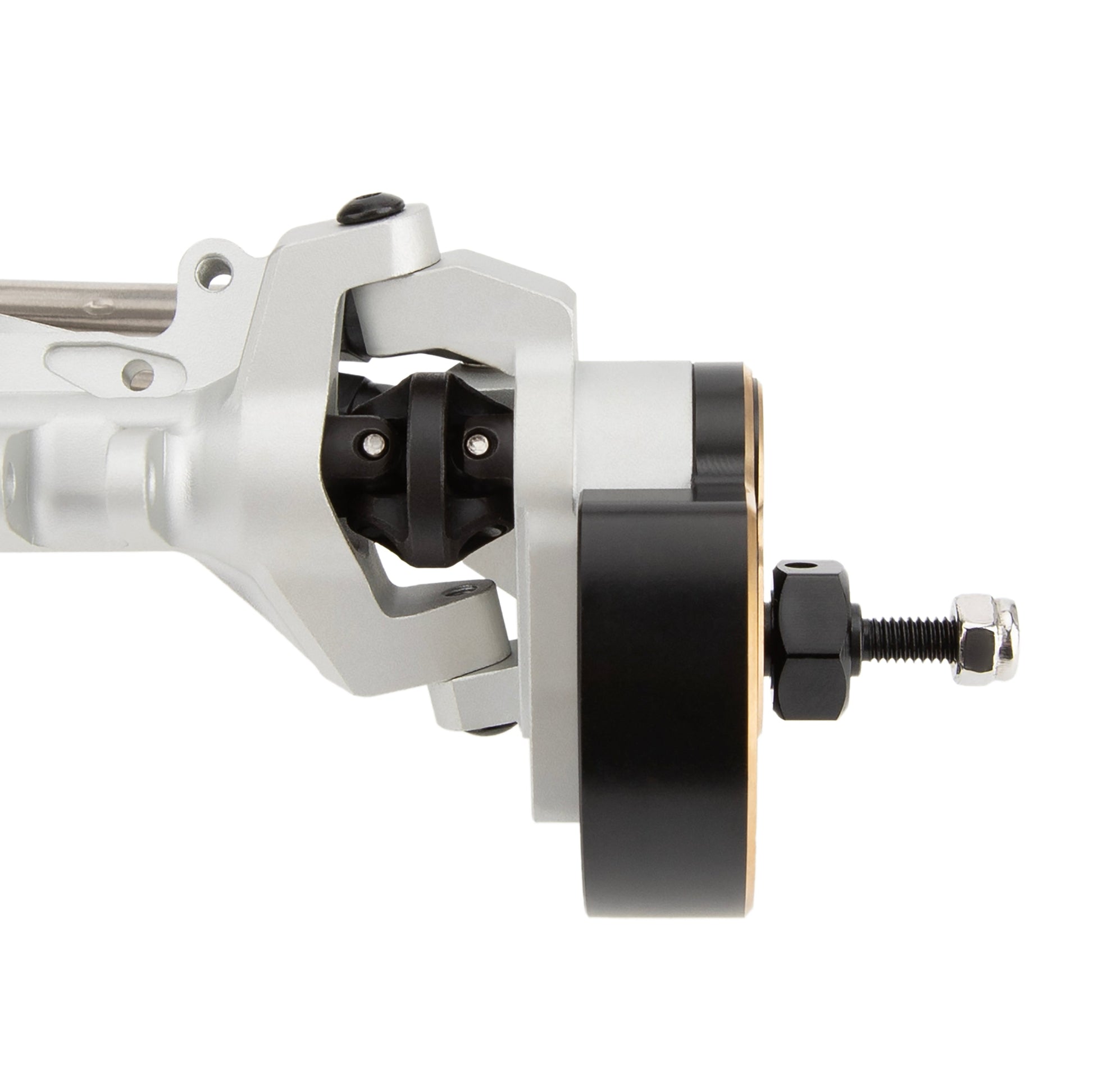

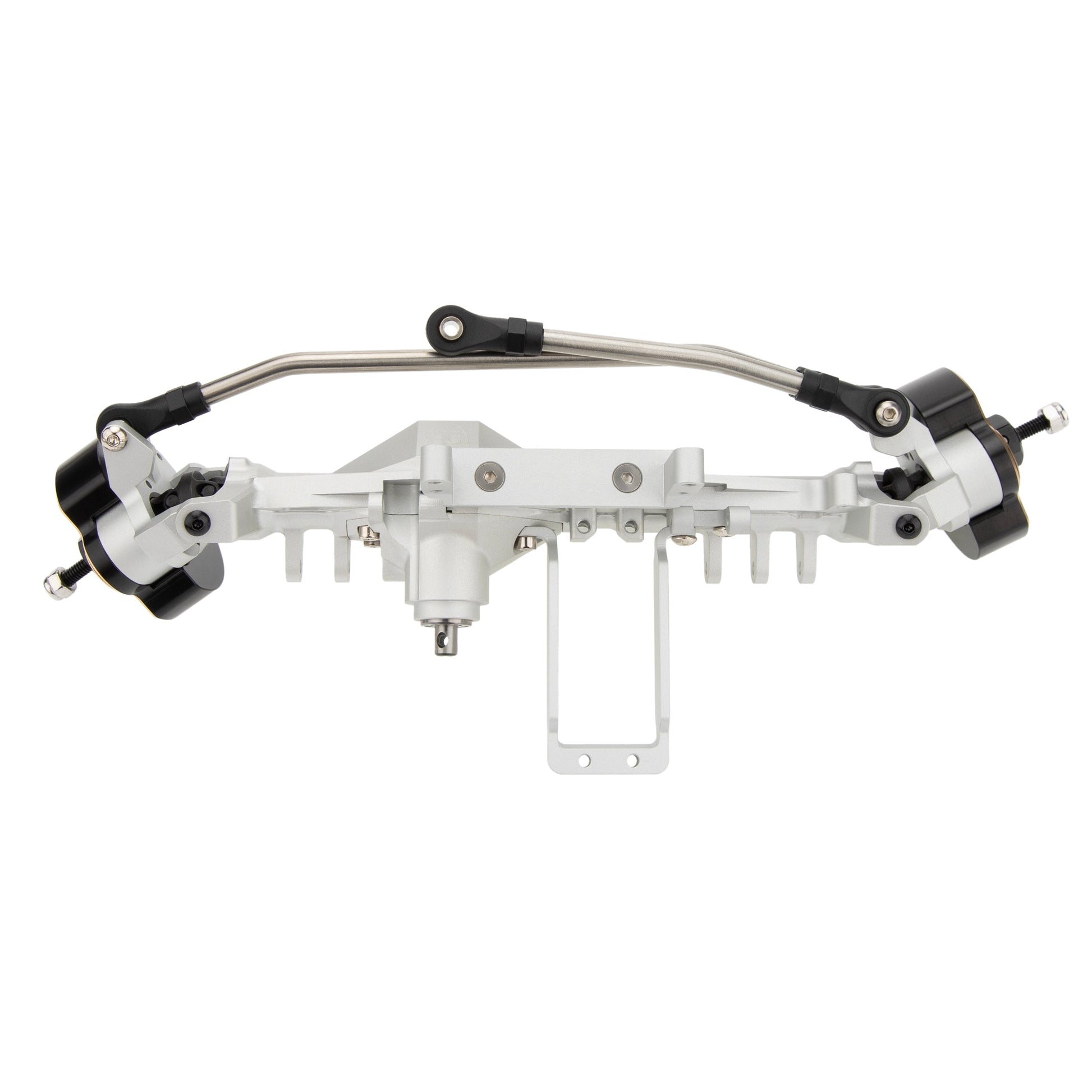

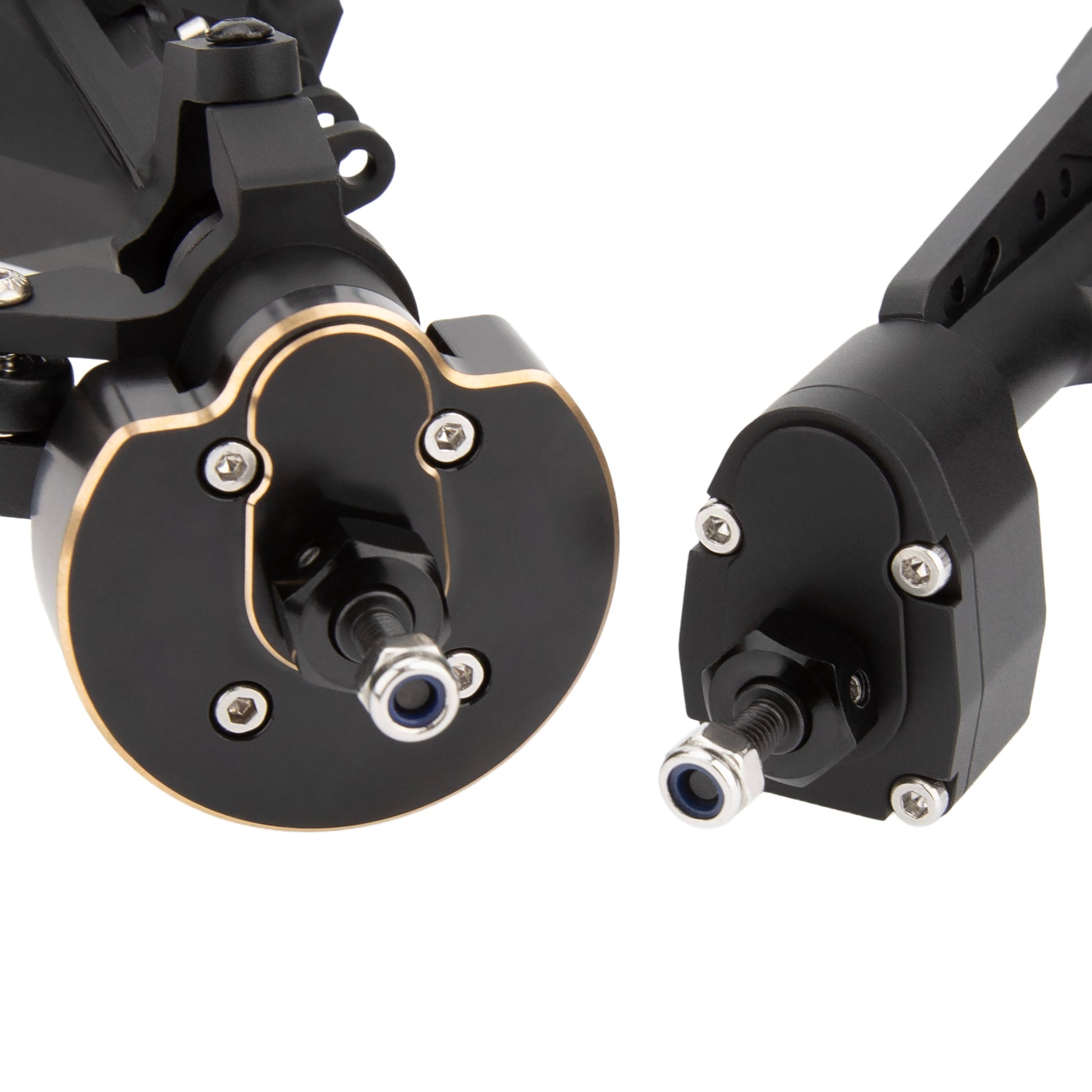

• 7. The kit comes with front and rear axles. The front axle is equipped with a smaller C-Hub plus 96g brass axle cover at each side to get lower center gravity for better trafficability, the Ackerman steering structure allows smoother steering and prevents tires from slipping sideways.

• 8. Providing 2 servo placement options for you to choose according to different scenarios, adding a pre-drilled hole on the front axle for thrust rod installation for better stability.

Specifications:

• Axle housing material: Aluminum alloy

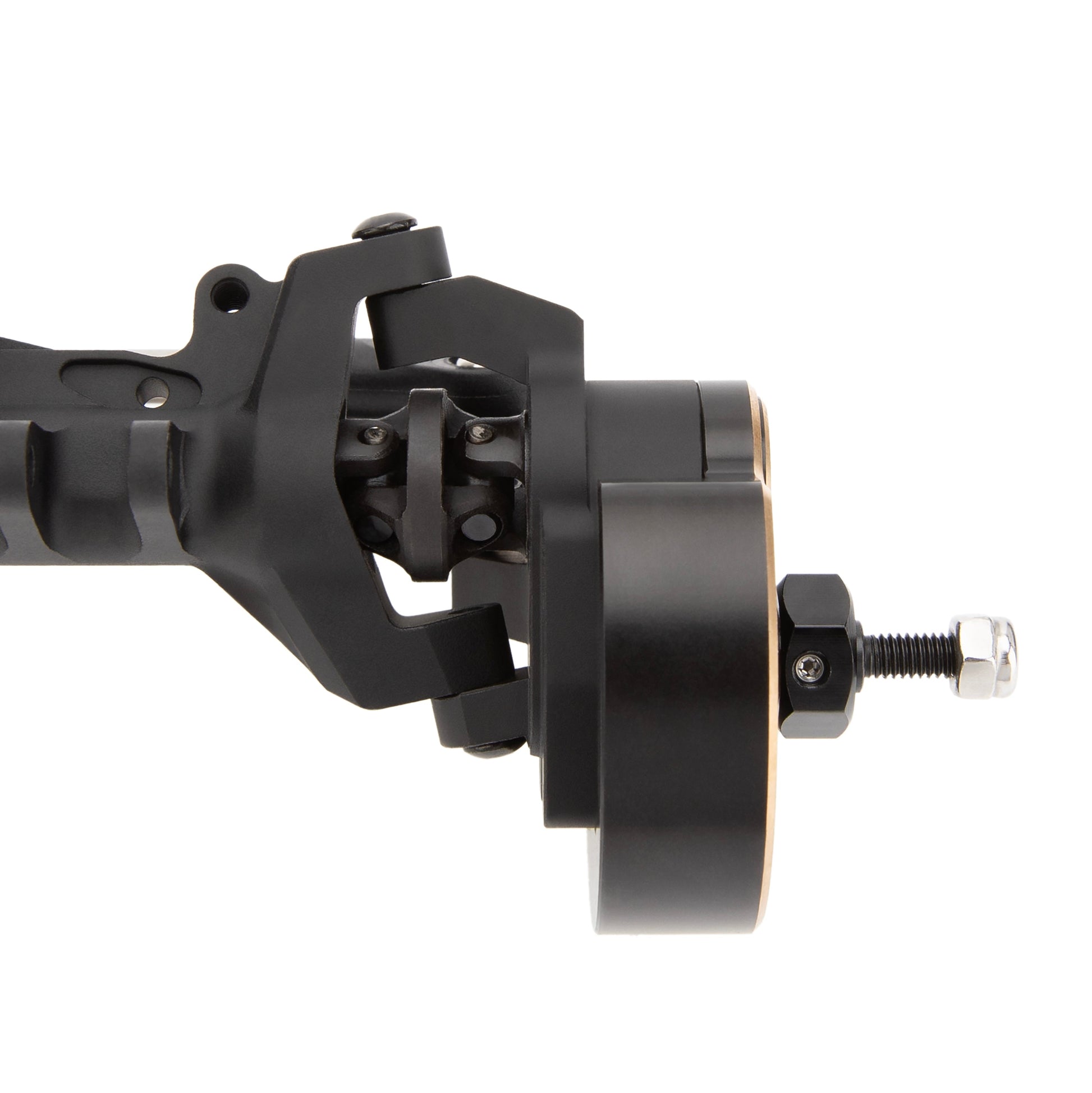

• Steering knuckle material: Brass

• Gear Cover: Brass

• Gear material: 20Cr Alloy Steel

• CVD shaft material: 40CR Alloy Steel

• Gear ratio: 8/30T

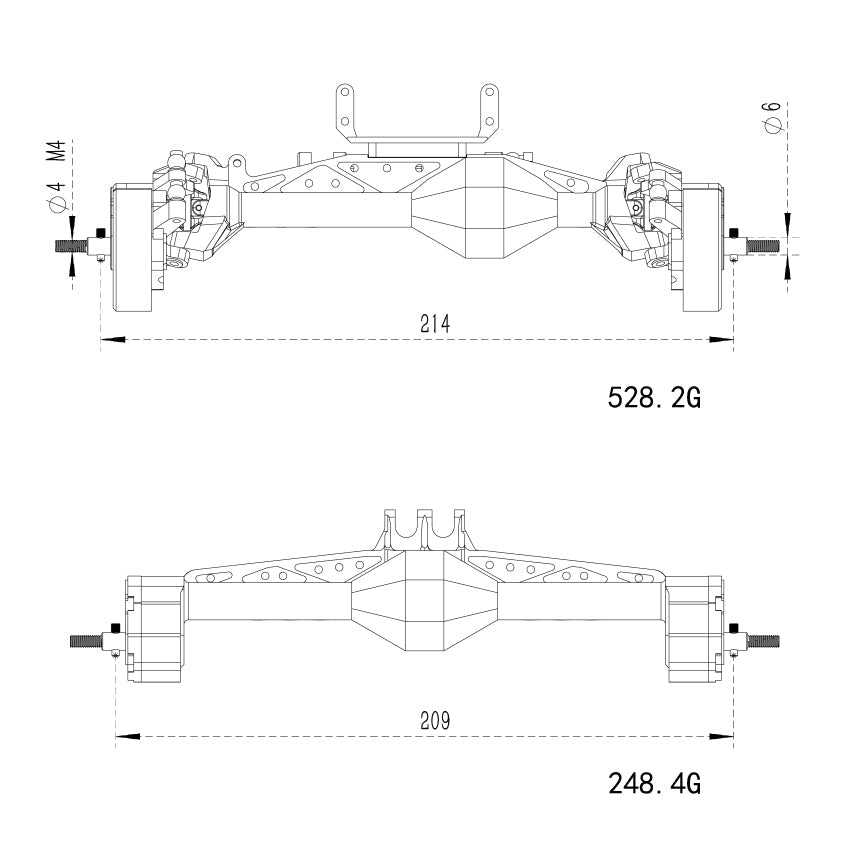

• Front axle total length: 214mm(8.42in)

• Rear axle total length: 209mm(8.23in)

• Front axle weight: 528.2g

• Rear axle weight: 248.4g

• Wheel hex adapter size: 6mm

• The rear axle portal gear ratio is: 23T/12T

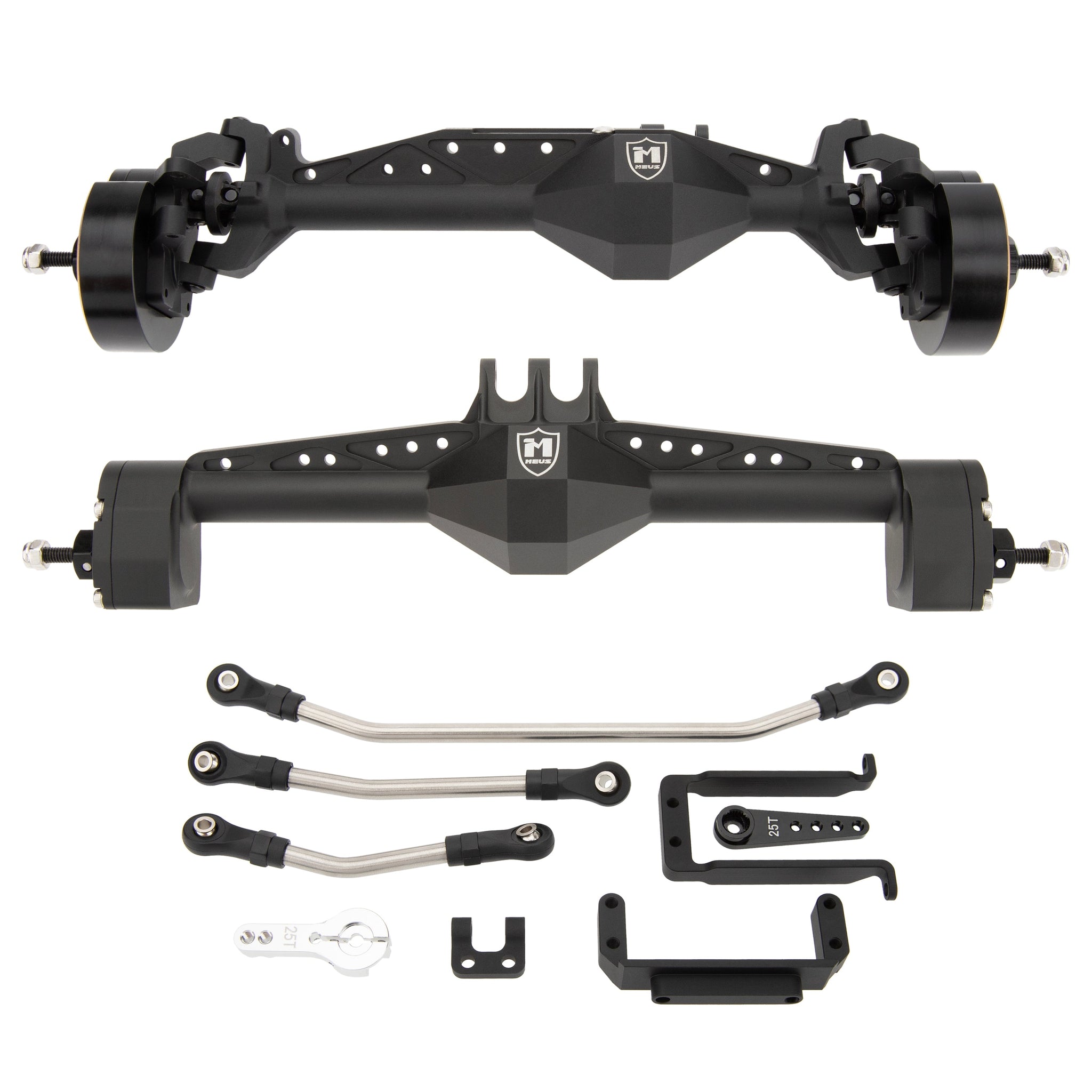

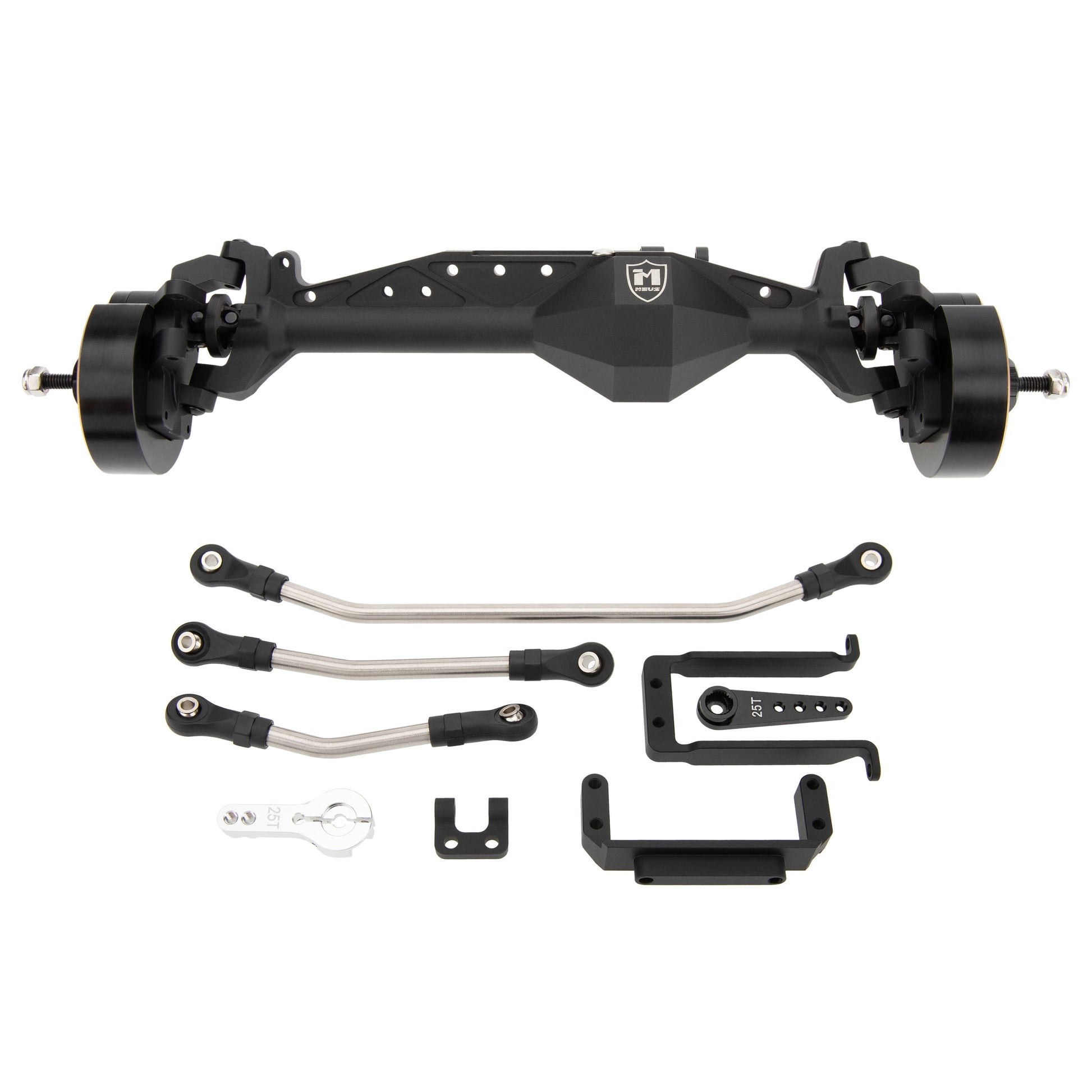

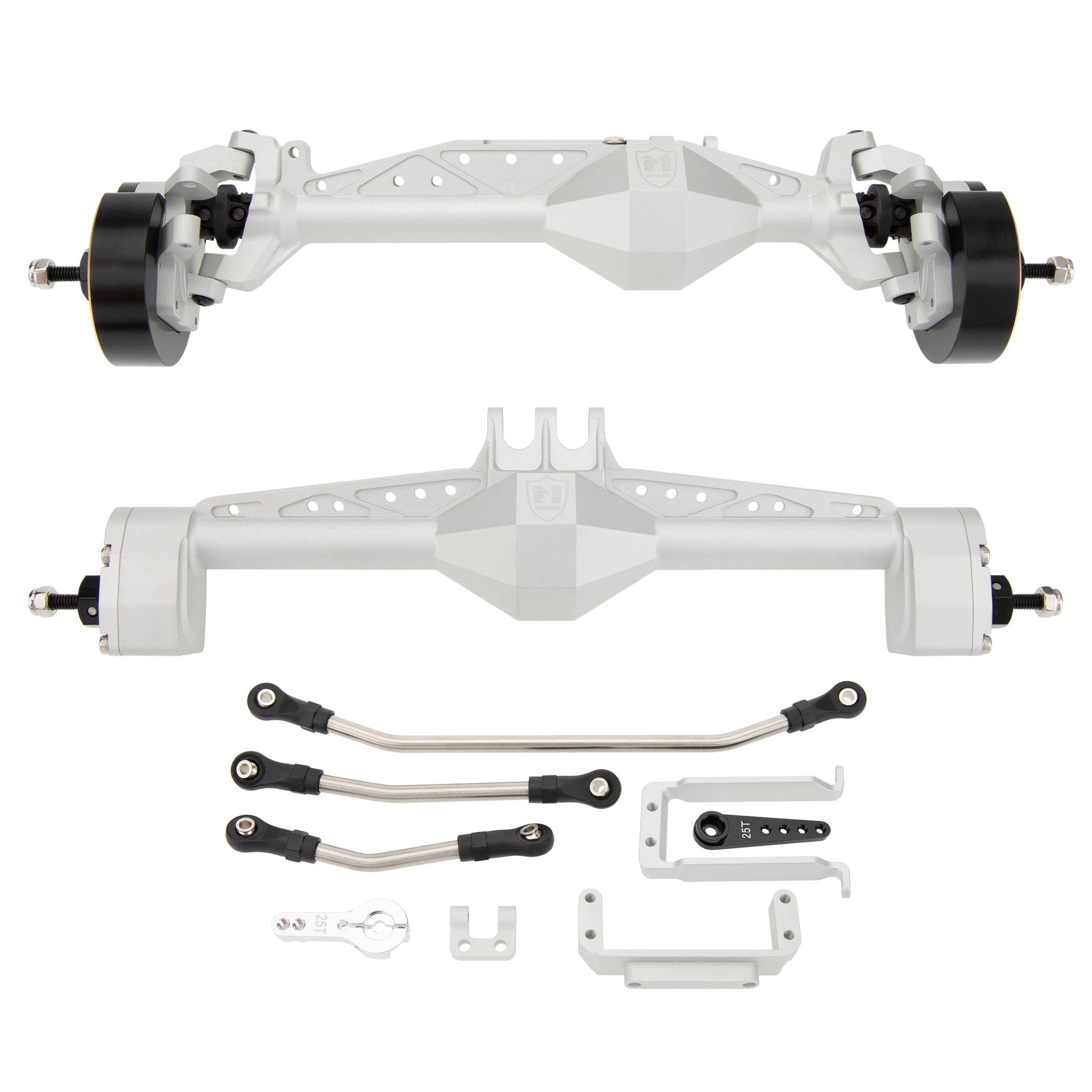

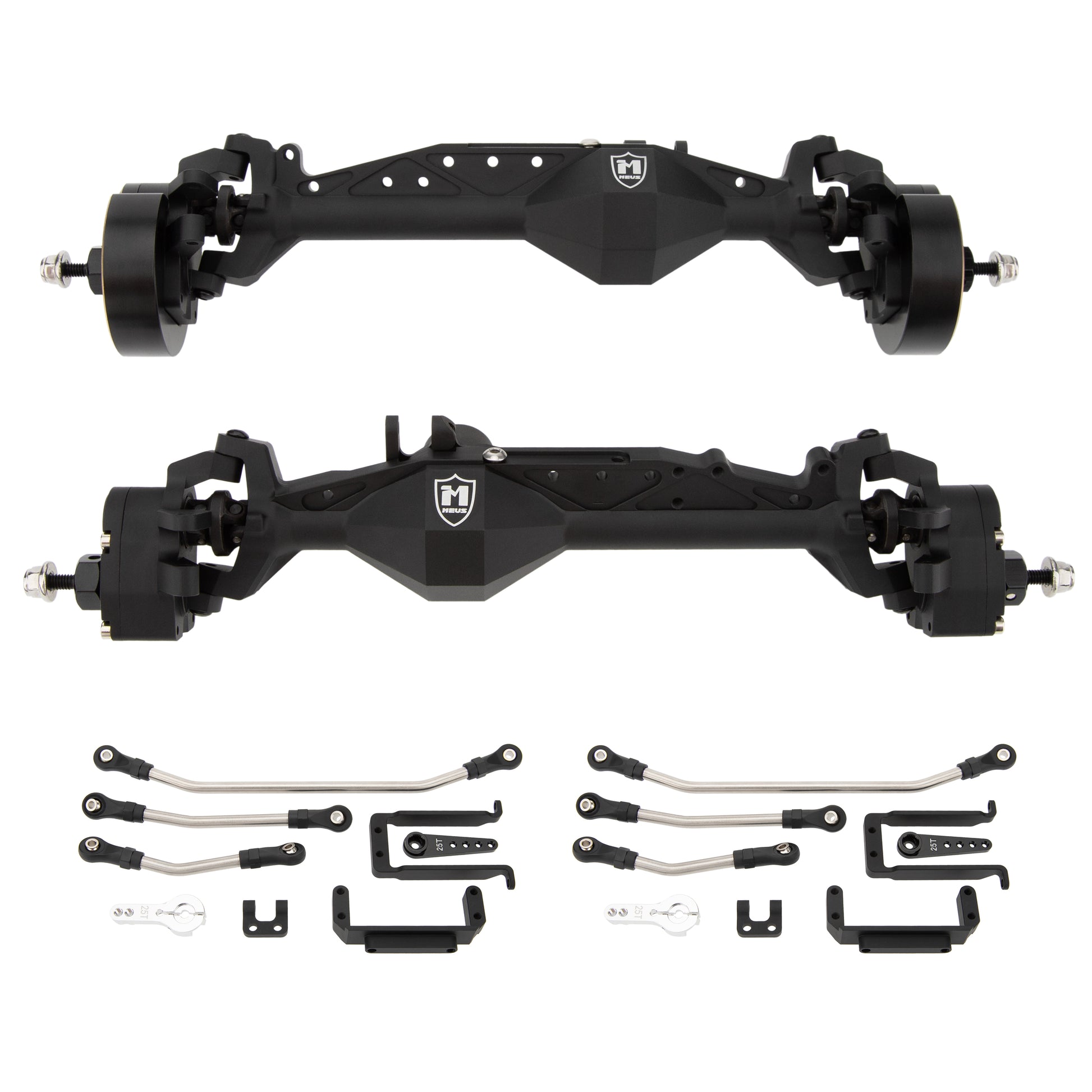

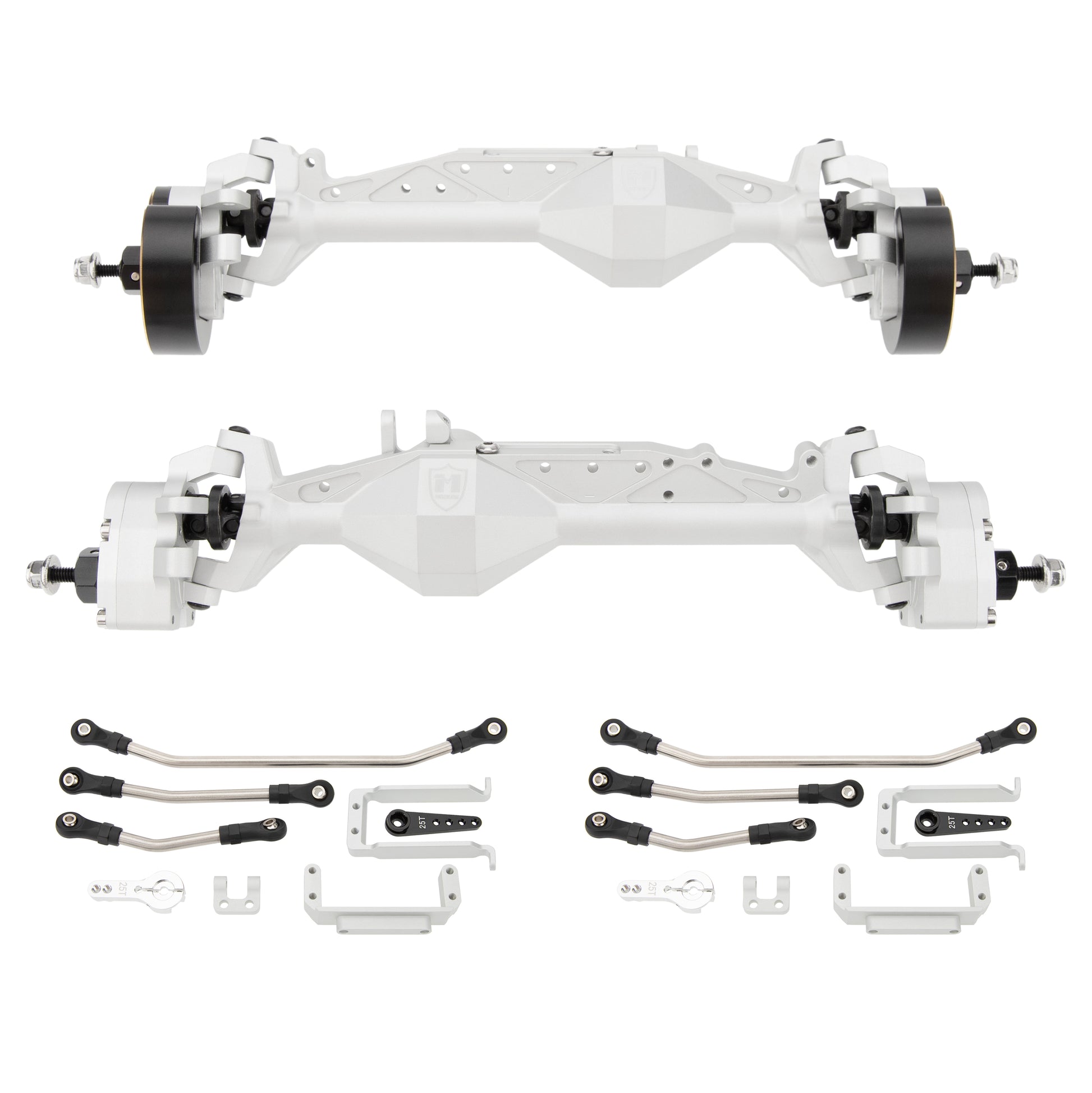

Package List:

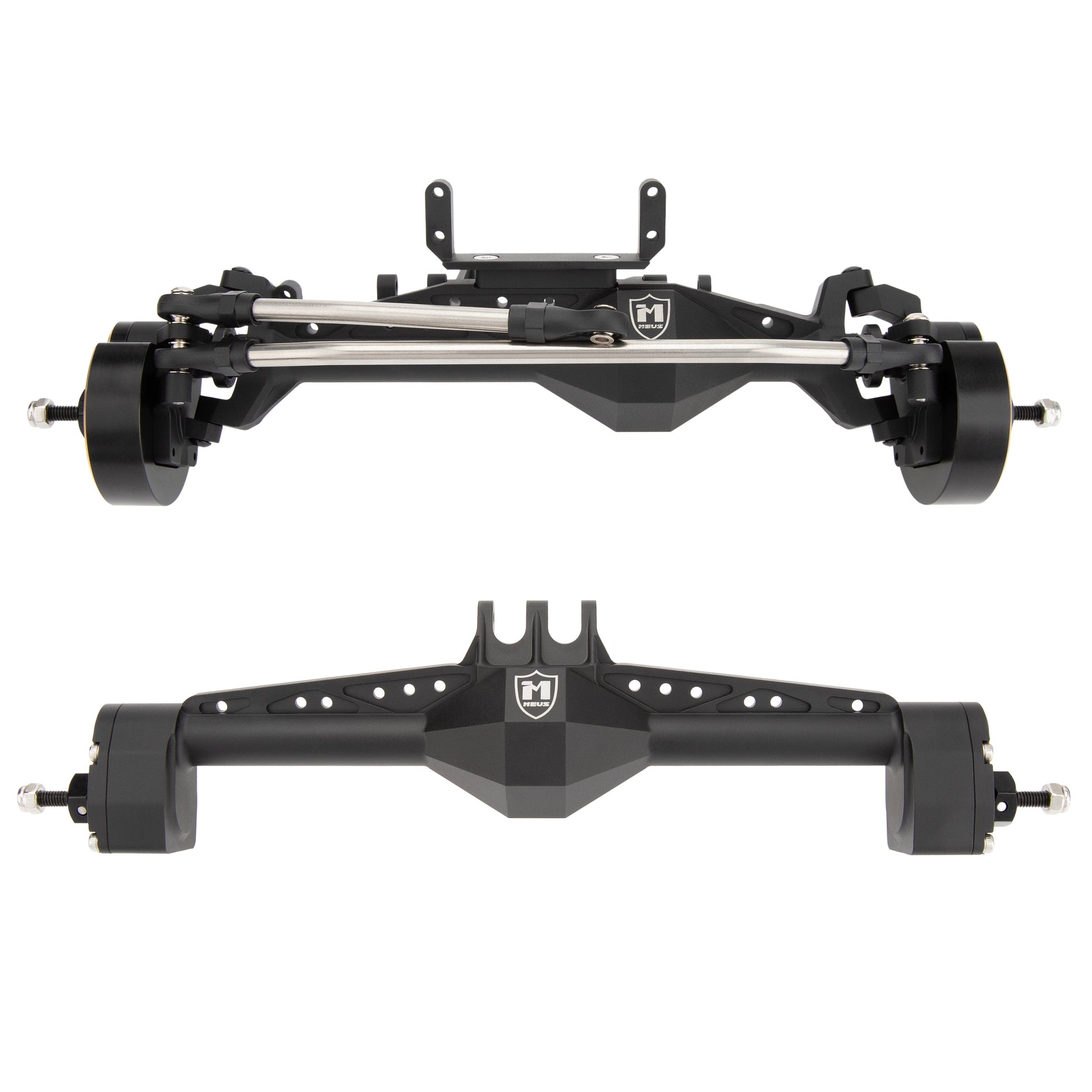

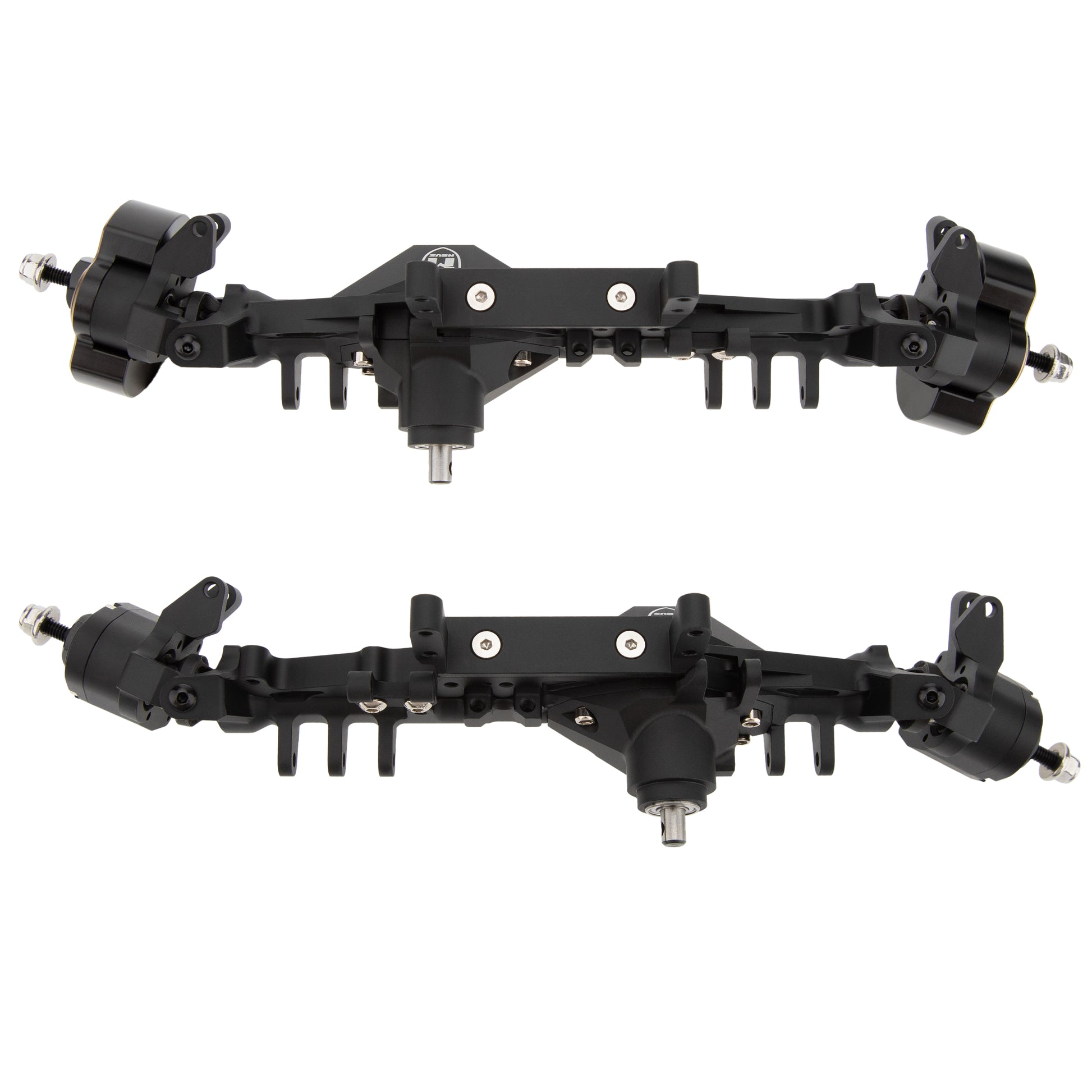

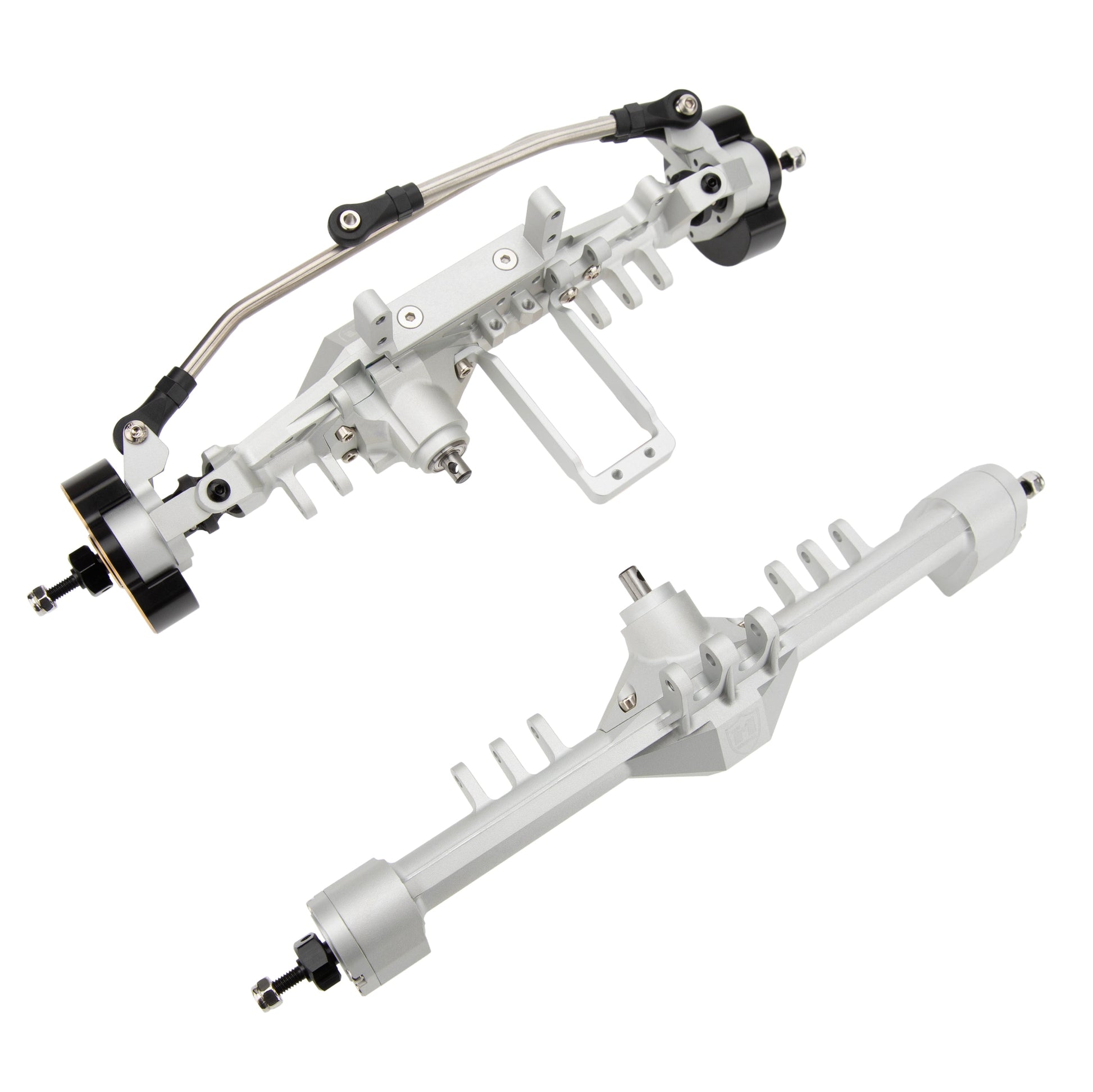

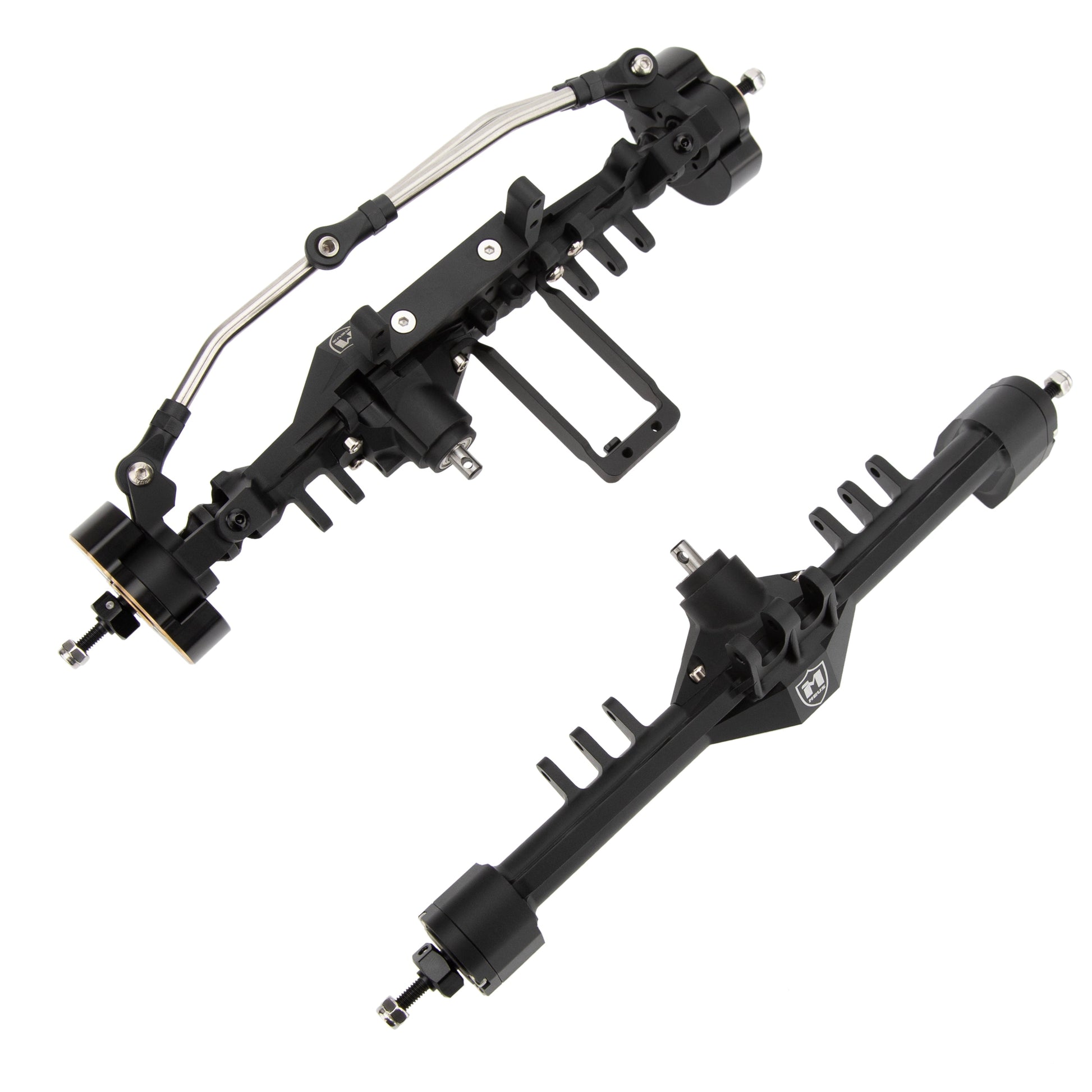

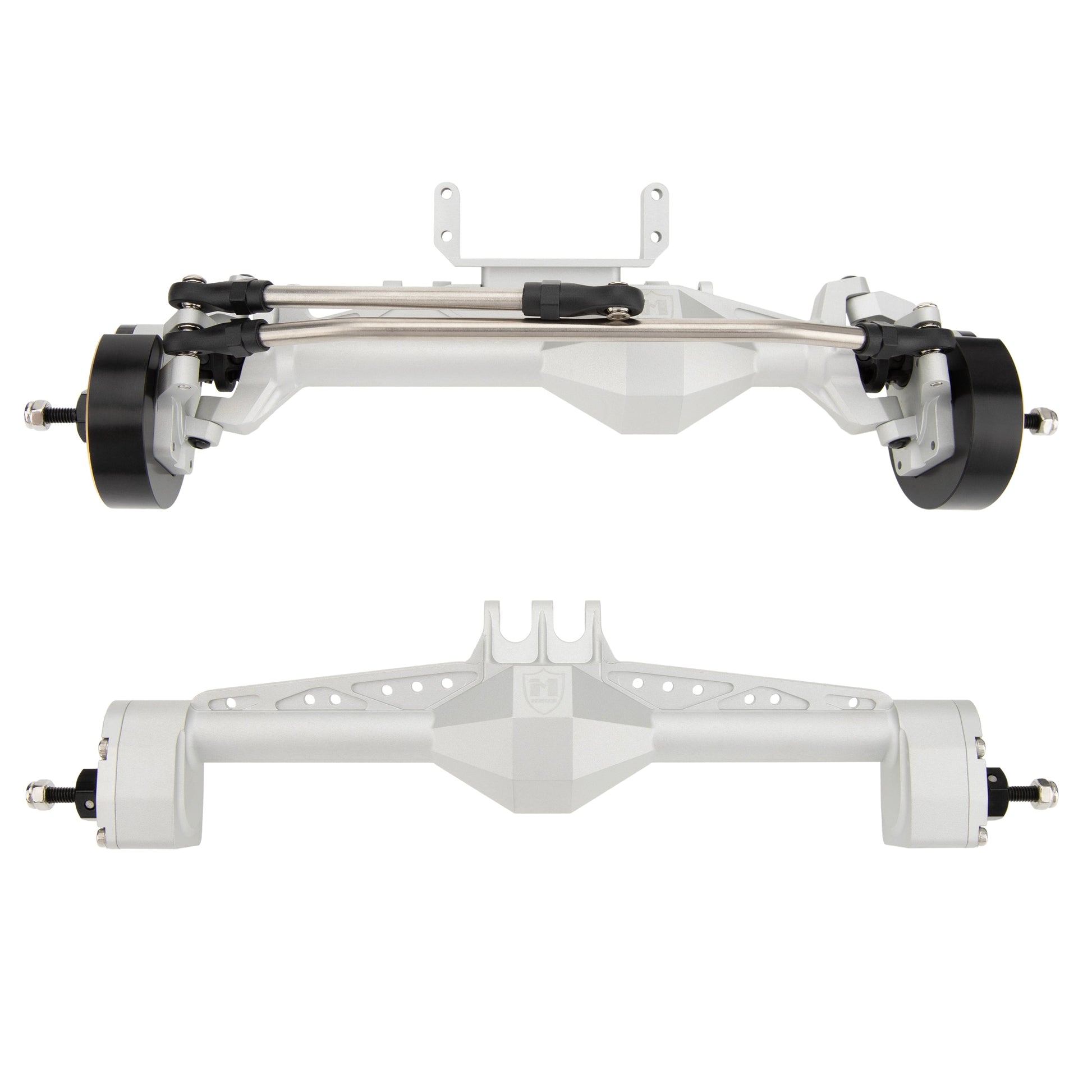

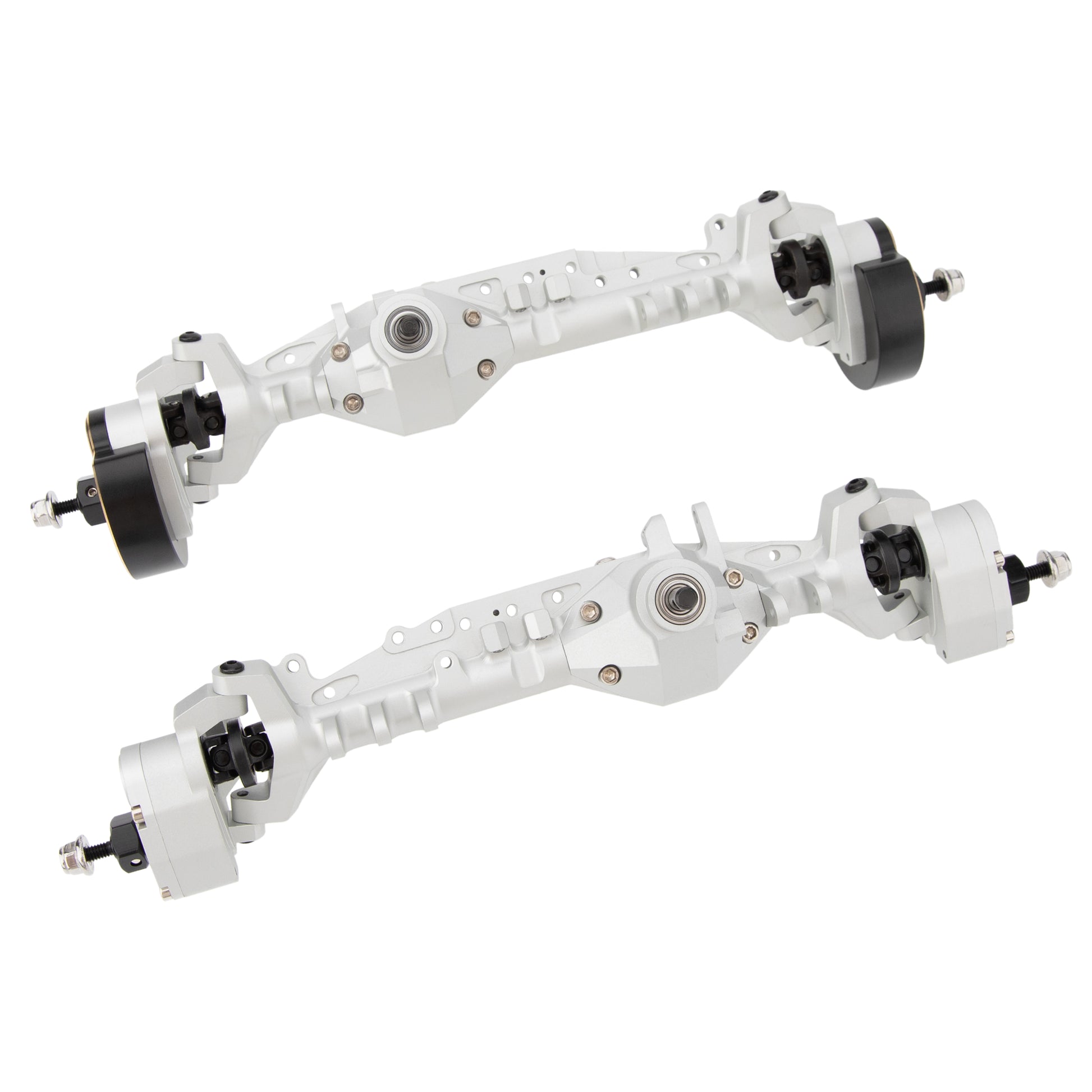

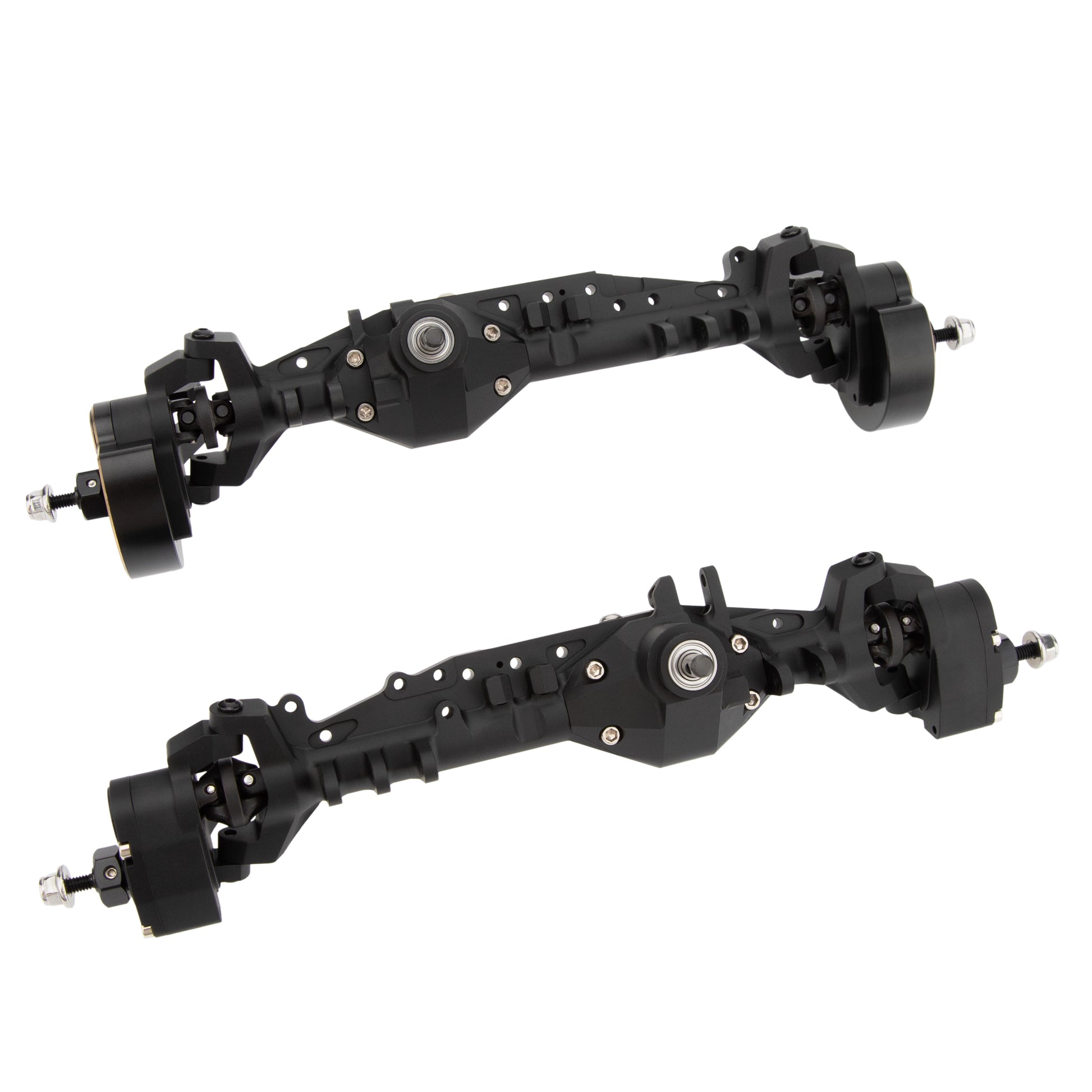

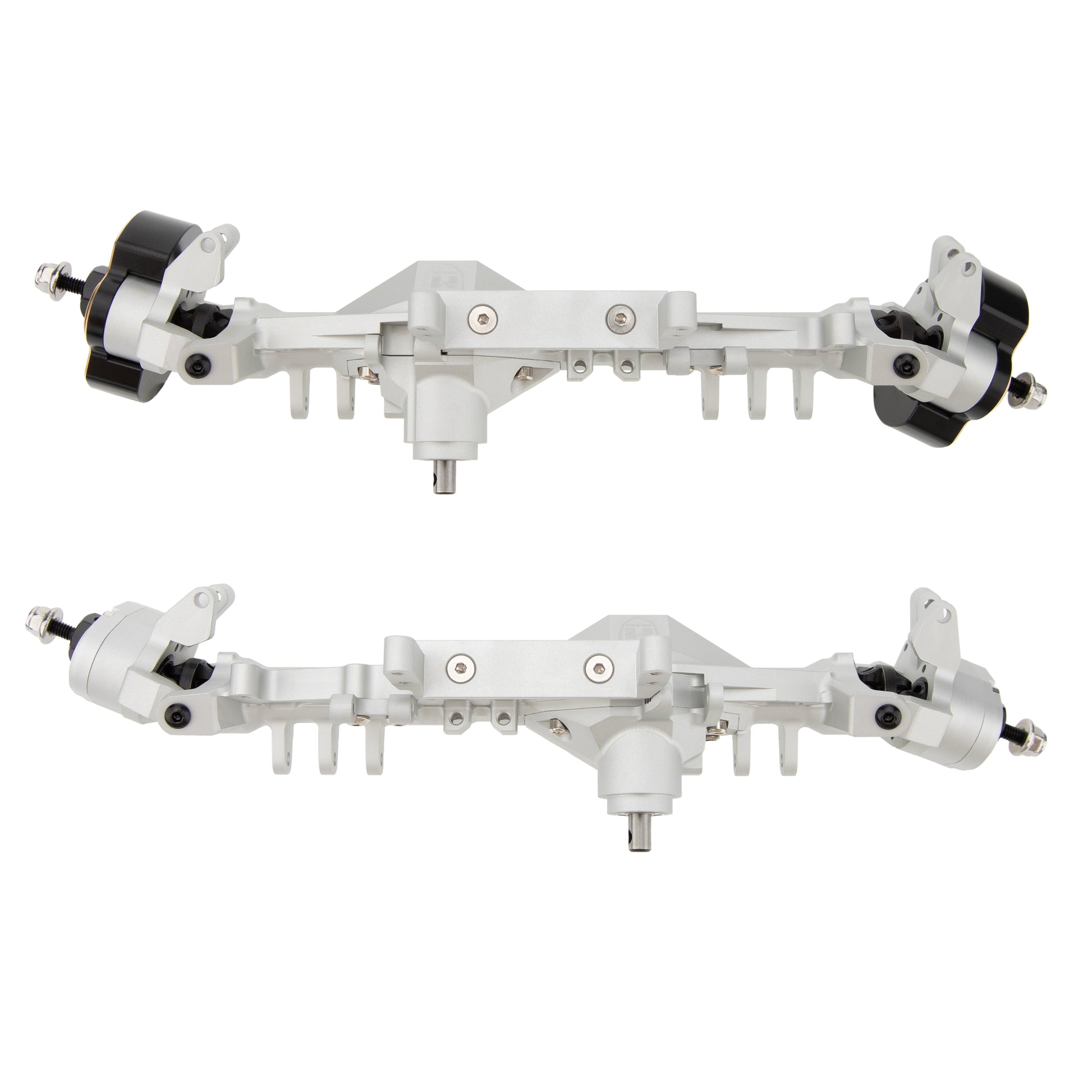

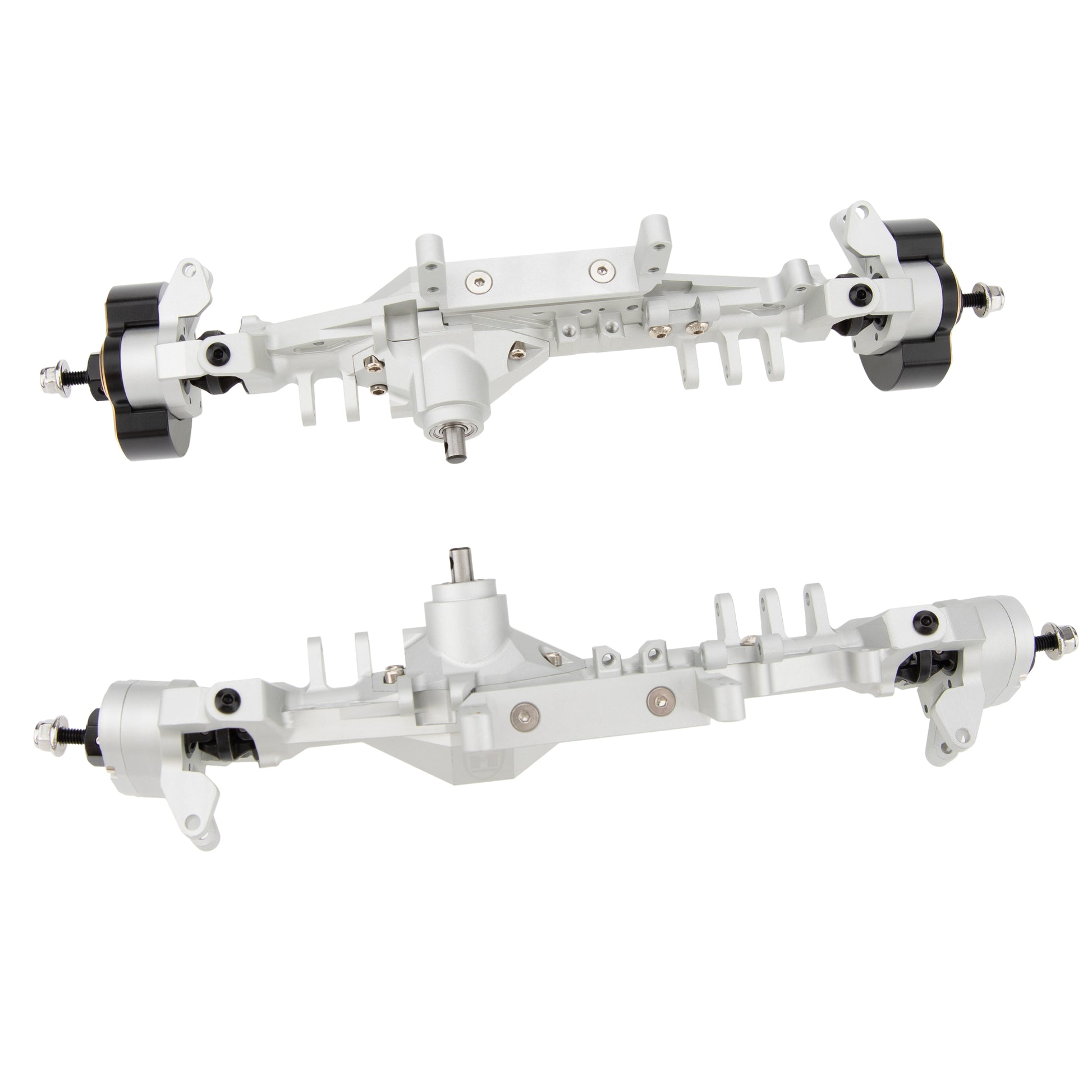

• 1 × CHEAT CODE Capra 1.9 Isokinetic front axle

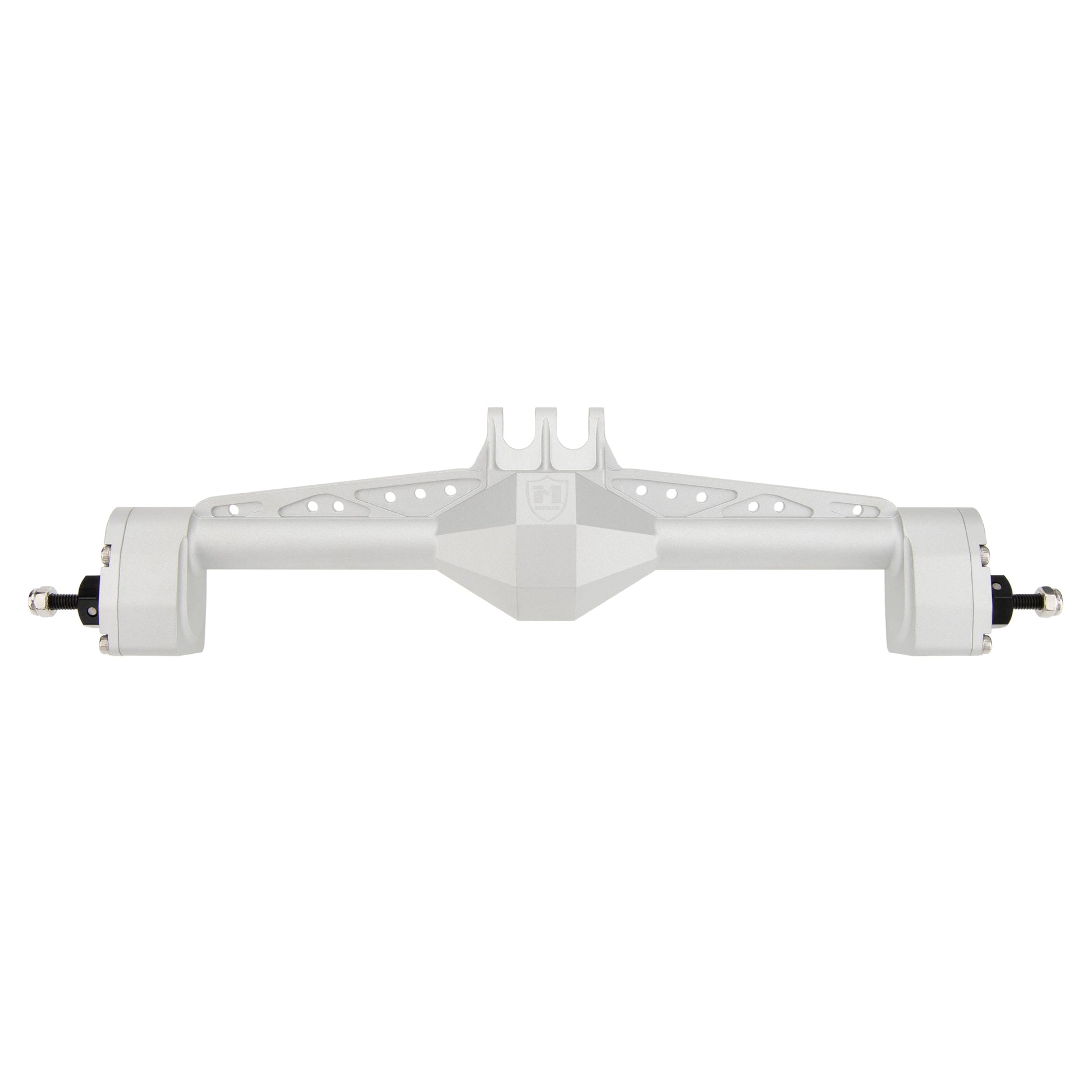

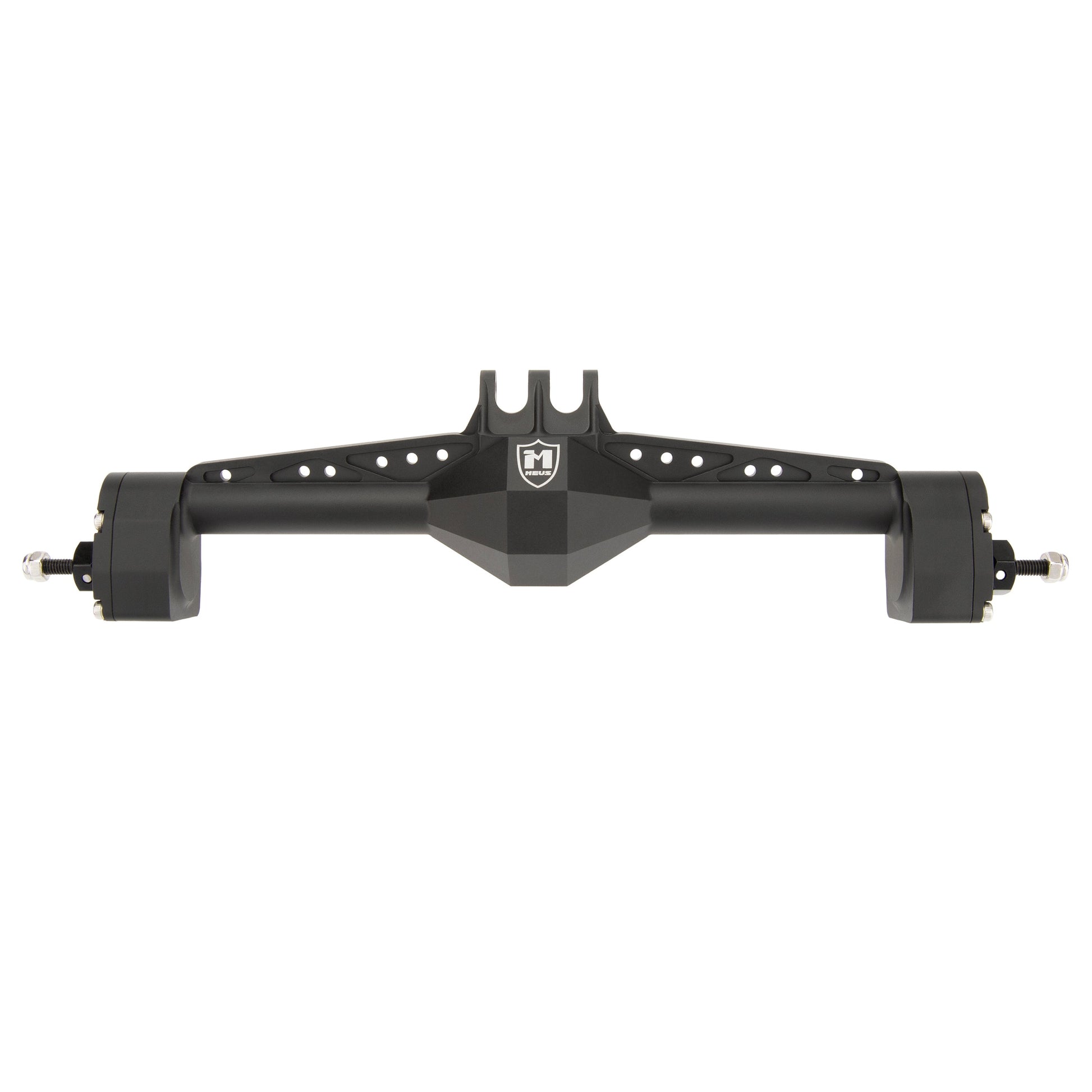

• 1 × CHEAT CODE Capra 1.9 rear axle
• 3 × Steering Links

• 2 × Servo Mount

• 2 × 25T Servo horns
• 1 × Link mount
