MEUS Racing CHEAT CODE V2 Capra 1.9 Isokinetic Portal Axles for 1/10 Axial Capra 1.9 & DIY SCX10 SCX10 II

MEUS Racing CHEAT CODE V2 Capra 1.9 Isokinetic Portal Axles for 1/10 Axial Capra 1.9 & DIY SCX10 & SCX10 II Upgrades.

Key Fearures:

• 1. This Cheat code V2 version is designed for the Capra 1.9 and DIY SCX10 / SCX10 II chassis

• 2. Pin-to-pin wheel distance: front axle 214mm; rear axle 209mm. Compared to the regular version, the front axle is 5mm narrower, and the rear axle is 10mm narrower, making it easier to pass through some narrower places to win points!

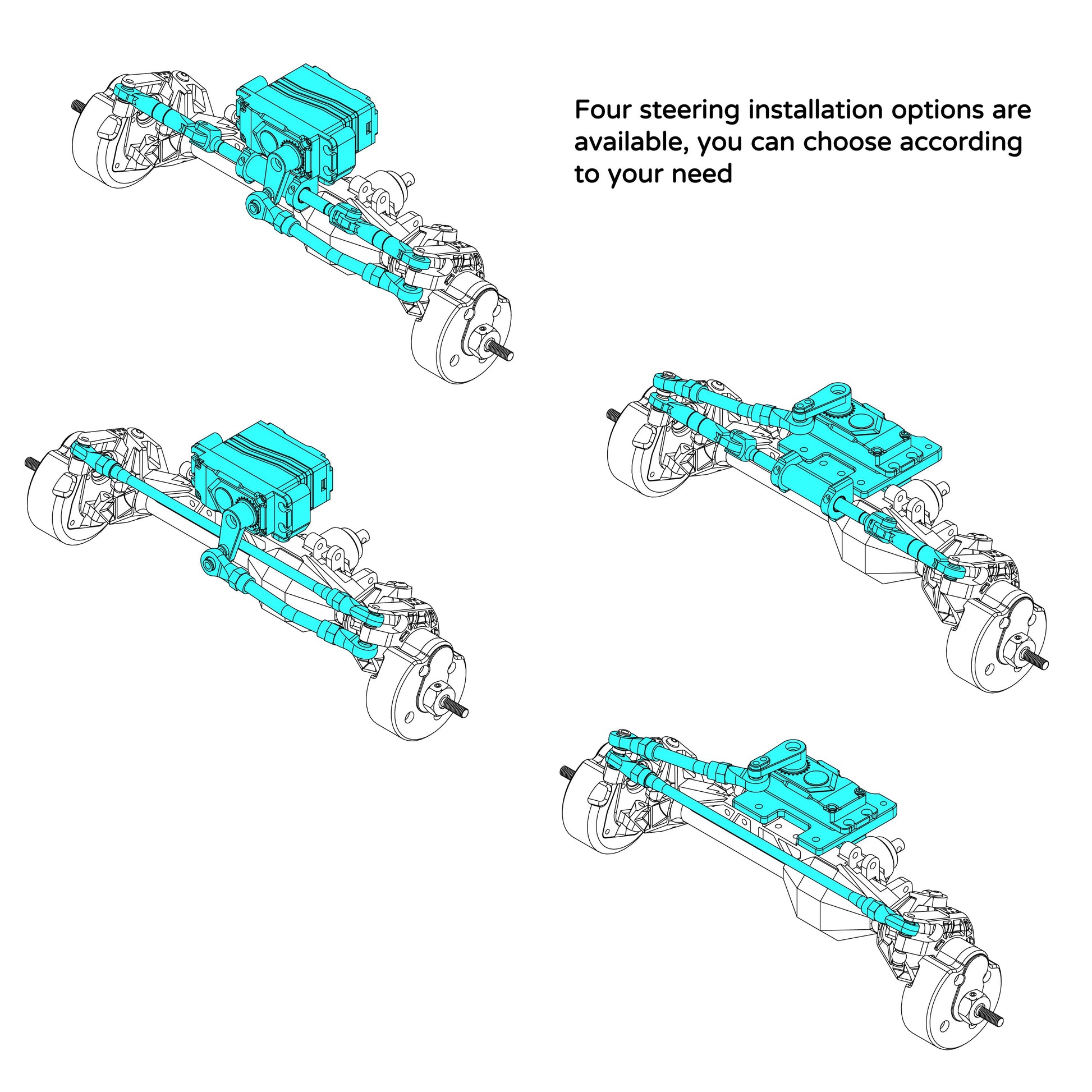

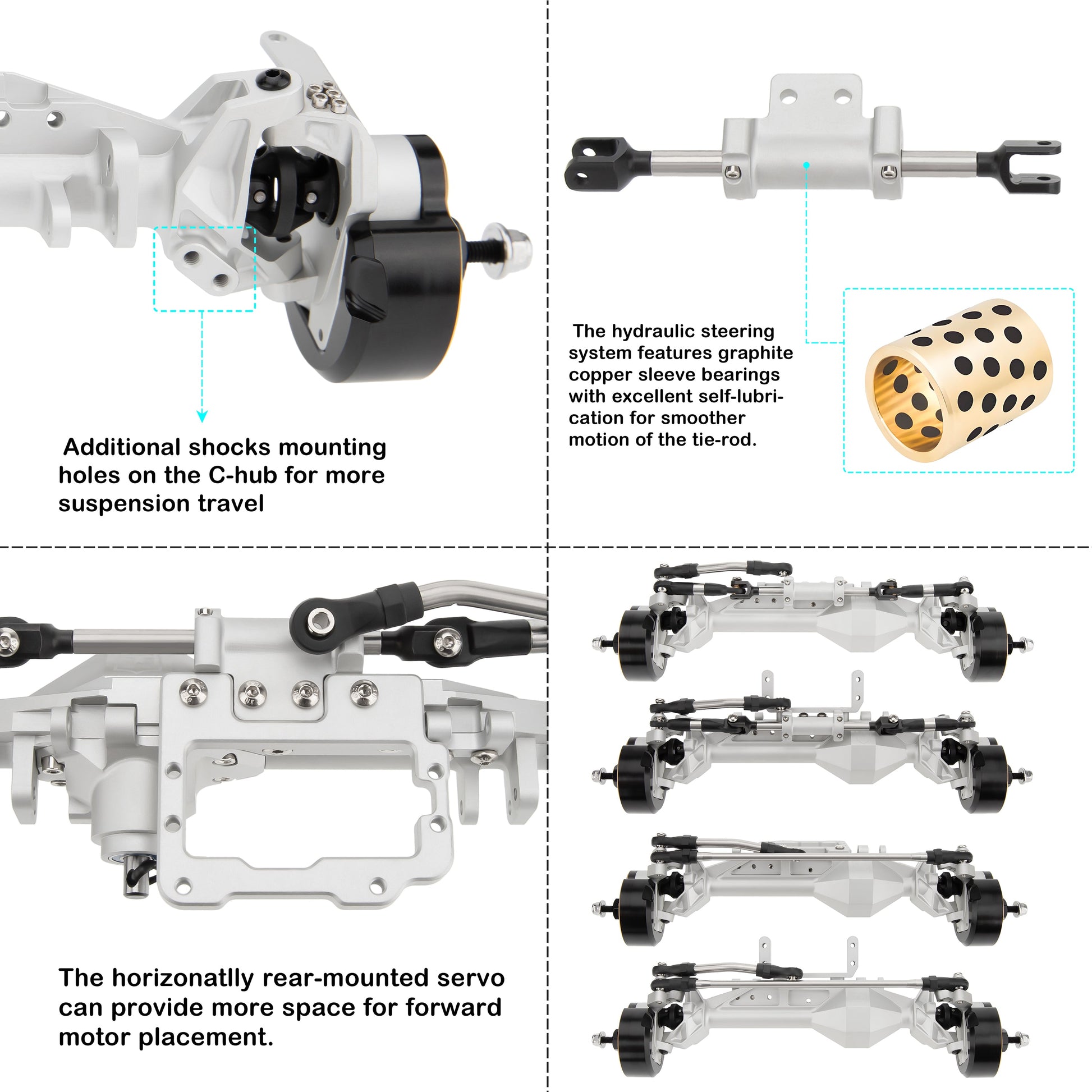

• 3. The front axle features a caster angle of 22° and a kingpin angle of 12° for more flexible steering; two servo mounting options are available(SOA and BTA). The horizontally rear-mounted servo can provide more space for forward motor placement.

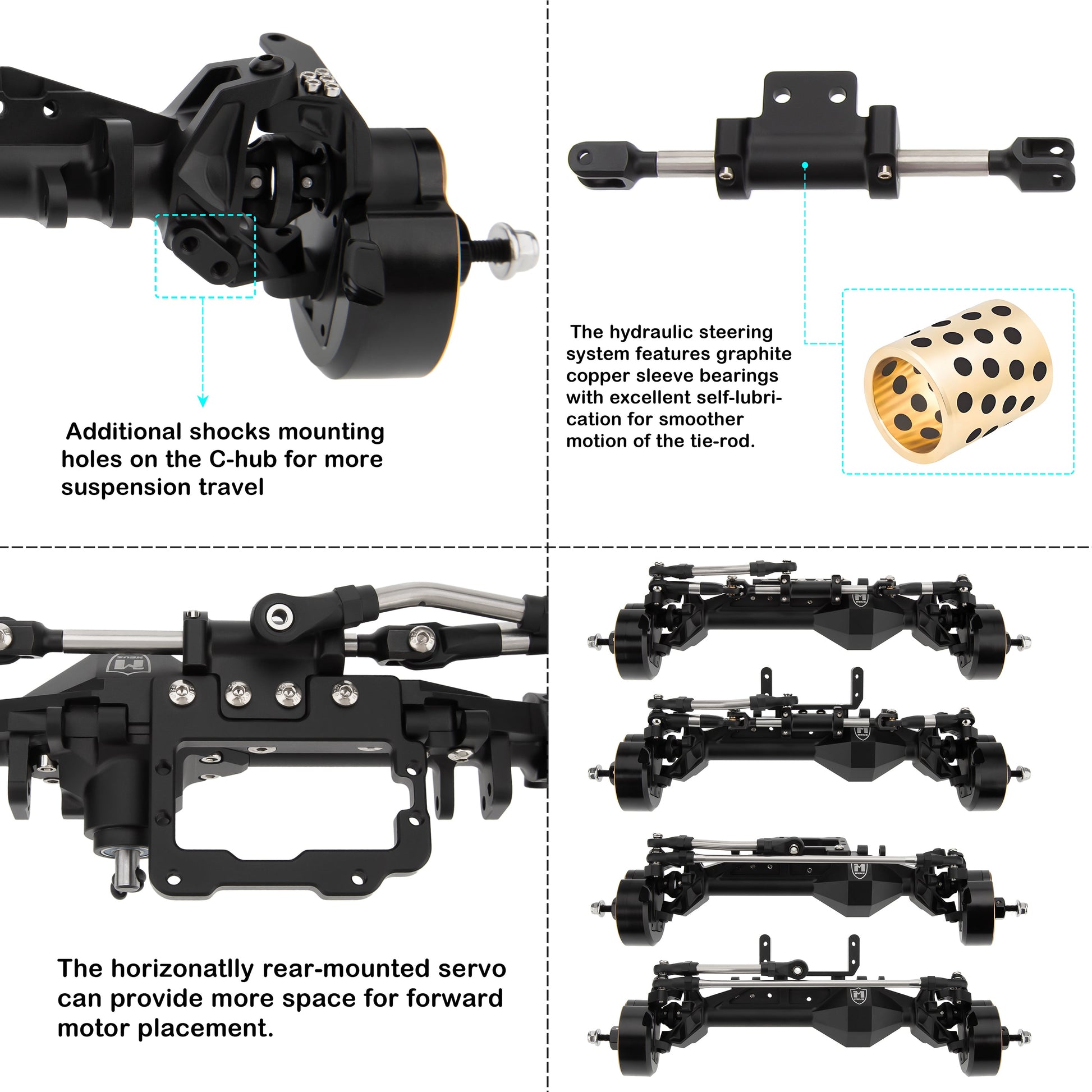

• 4. Available in two steering configurations: a hydraulic steering structure and a traditional steering links structure. The hydraulic steering system features graphite copper sleeve bearings for smoother motion.

• 5. Additional shock mounting holes are added on the C-hub, allowing greater suspension travel, especially for cage structure cars.

• 6. The 3-section CVD ensures smooth operation without binding or jolting, even at extreme steering angles(max. of 52°). It is equipped with a 40CR 6mm output shaft (longer than the original 5mm shaft, secured with an M4 nut).

Note:
The CVDs, steering knuckles, portal covers, diff covers, and steering links of the Cheat Code V2 are not compatible with the V1 version; only the differential gears and portal gears are shared with the V1.

Specifications:

Axle housing material: Aluminum alloy
Steering knuckle material: Brass
Gear Cover: Brass
Gear material: 20Cr Alloy Steel
CVD shaft material: 40Cr alloy steel
Gear ratio: 8/30T

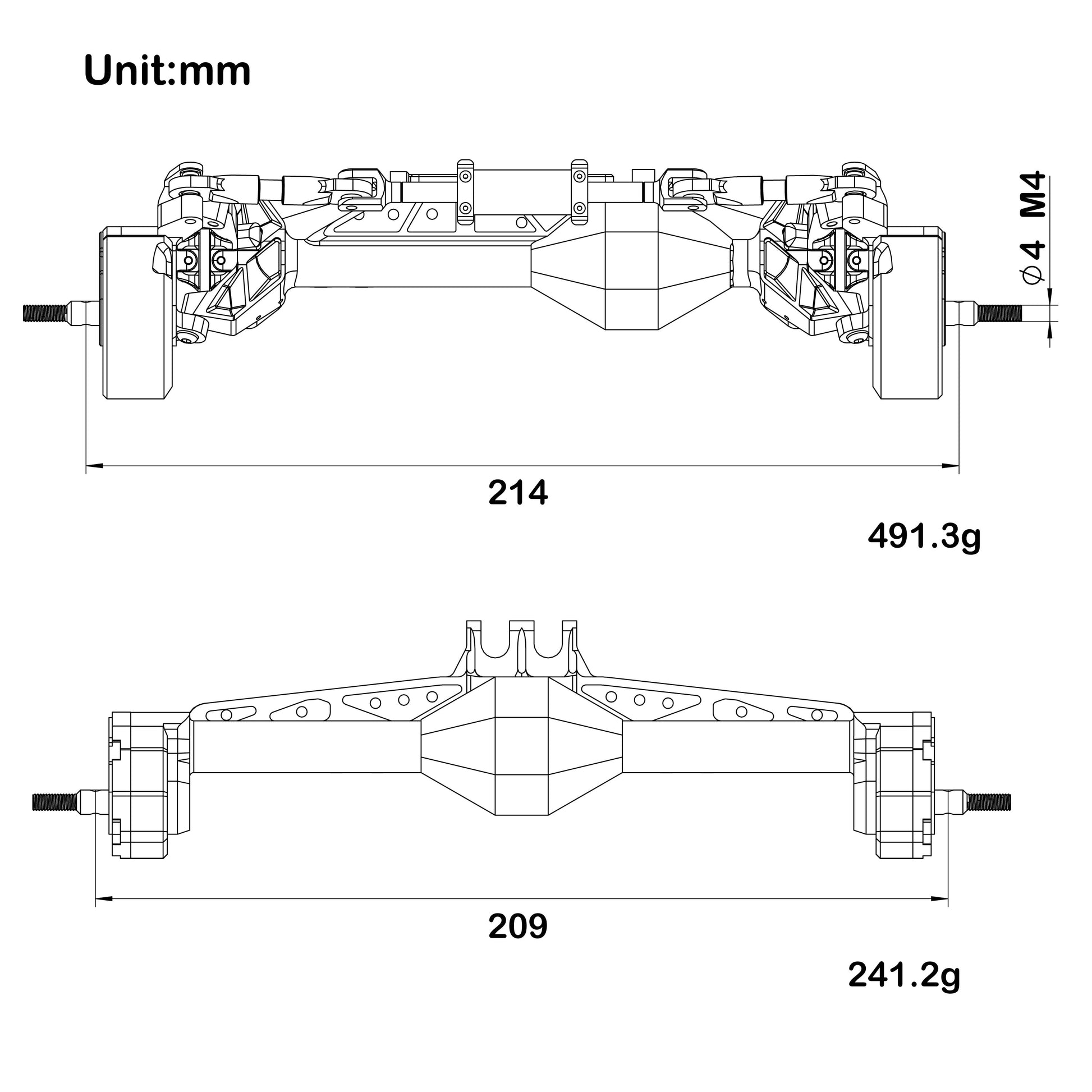

Front axle total length: 214mm(8.42 in)
Rear axle total length: 209mm(8.23 in)
Front axle weight: 491.3g
Rear axle weight: 241.2g
Rear steering axle weight: 302.3g
Wheel hex adapter size: 6mm
The rear axle portal gear ratio is: 23T/12T

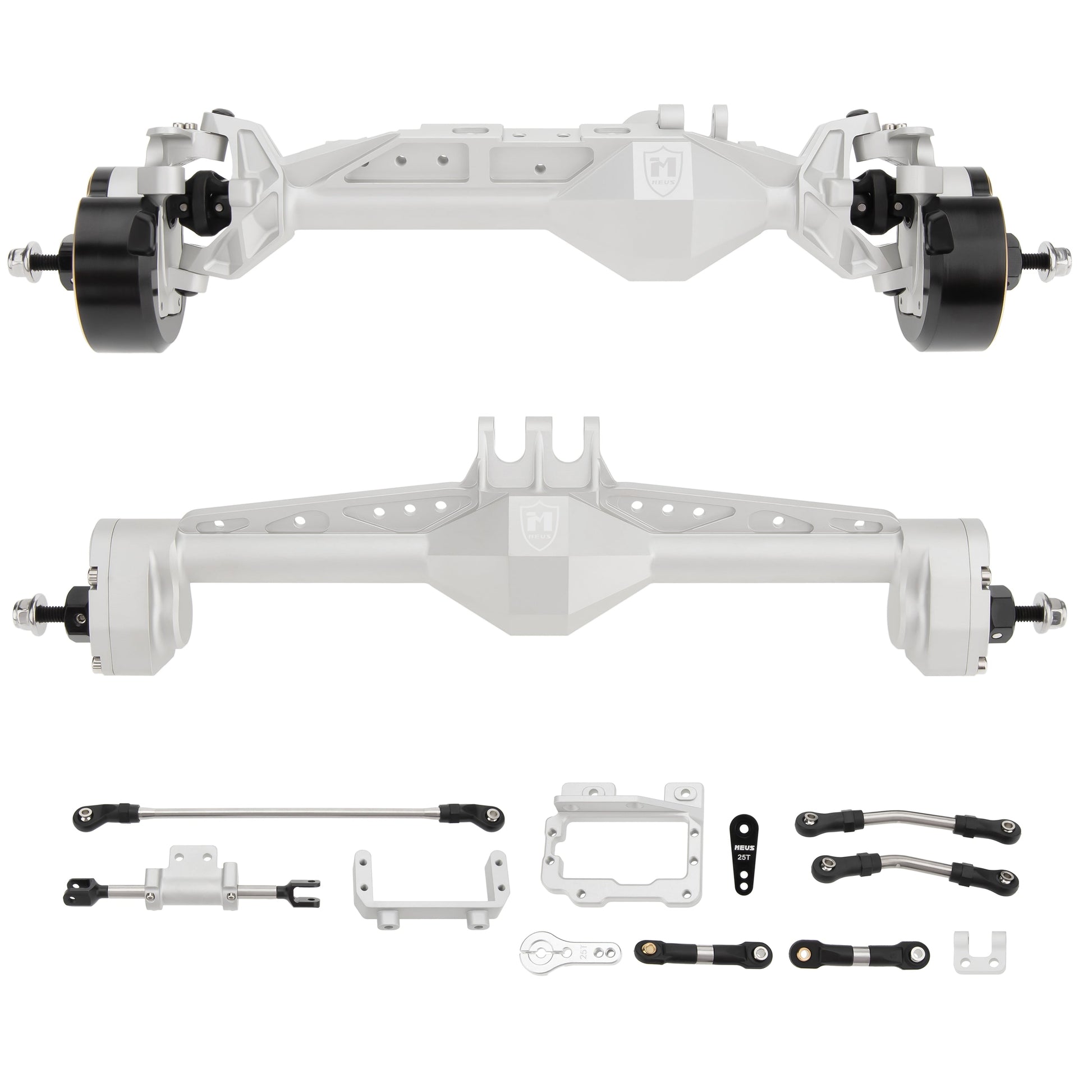

Package List:

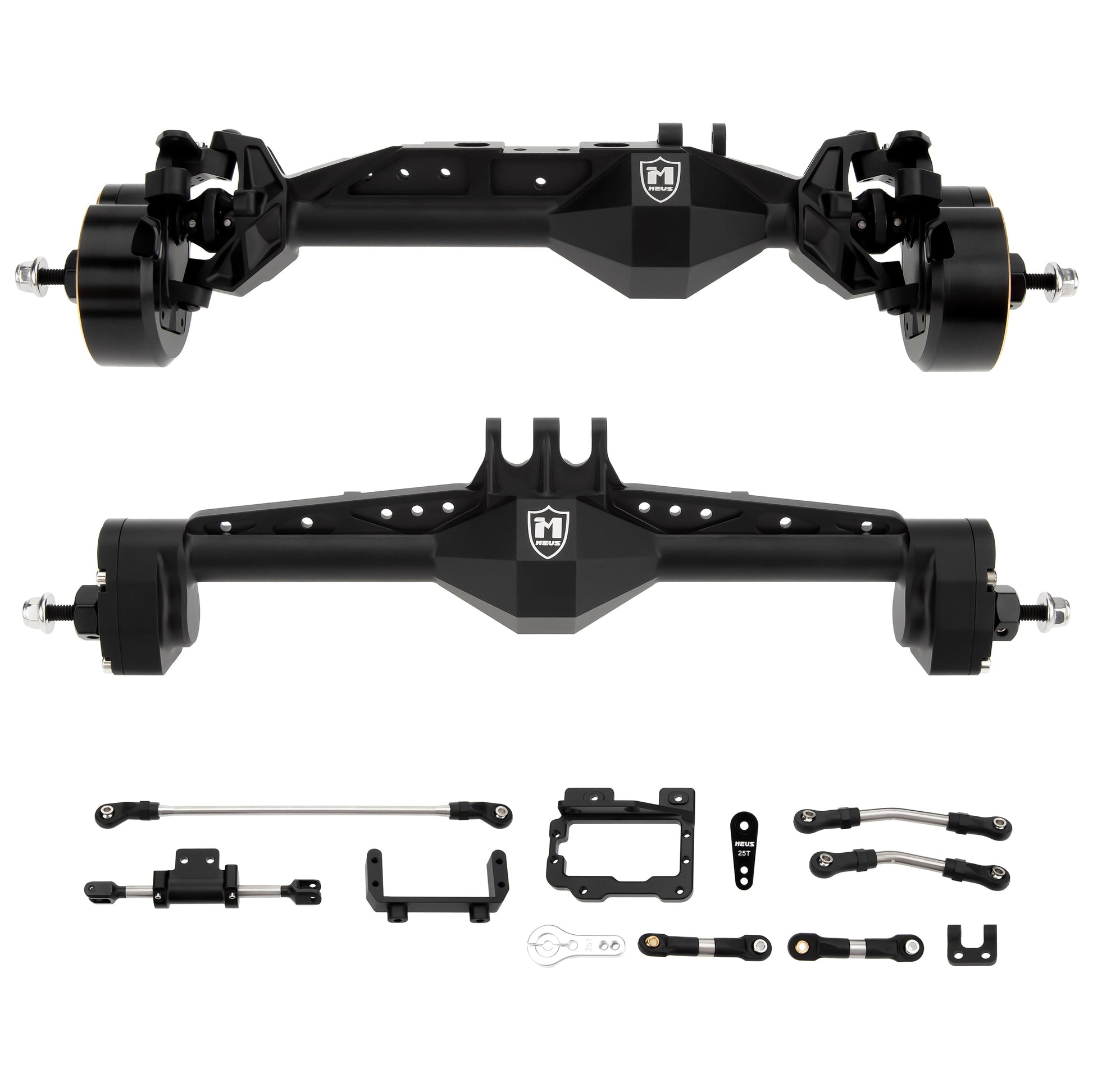

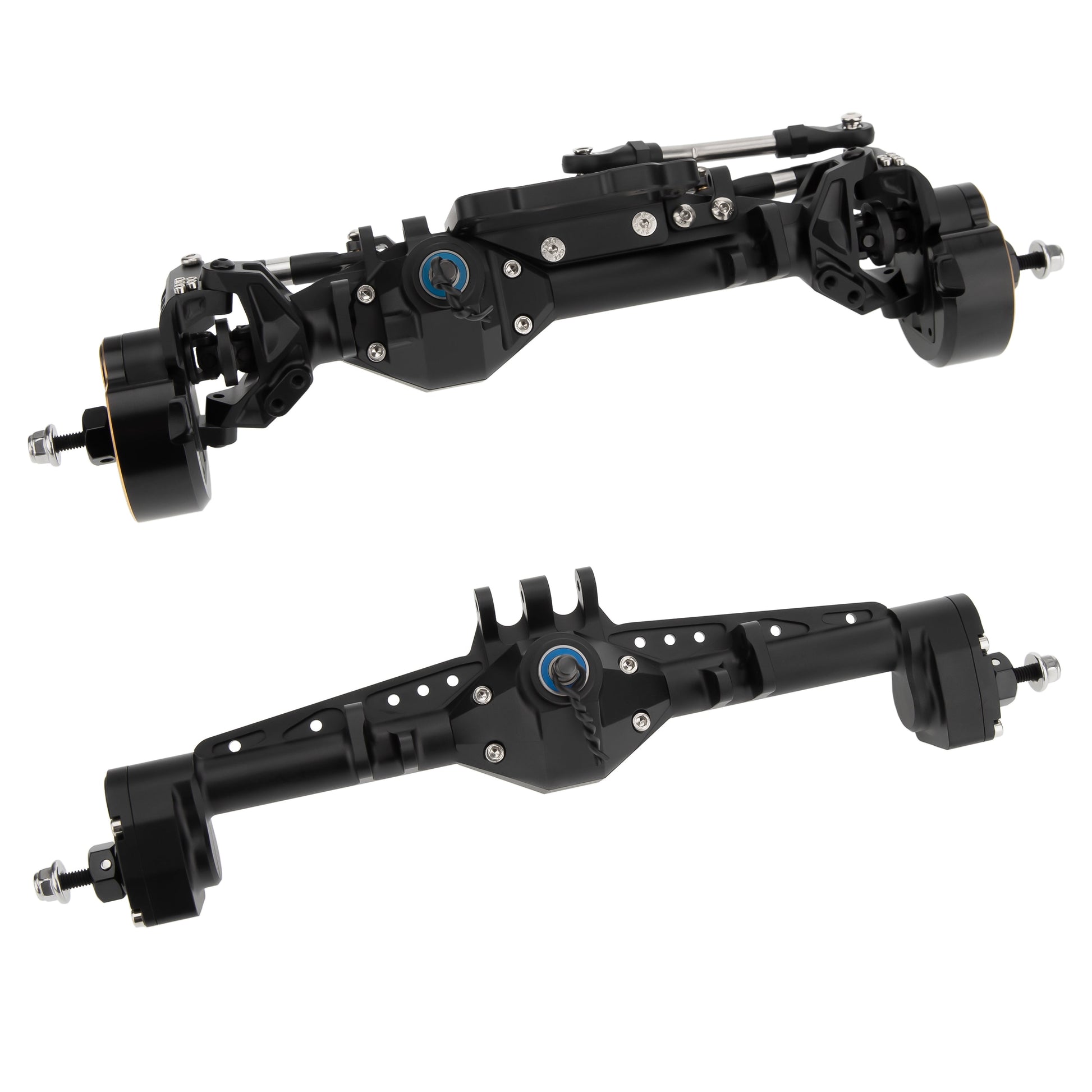

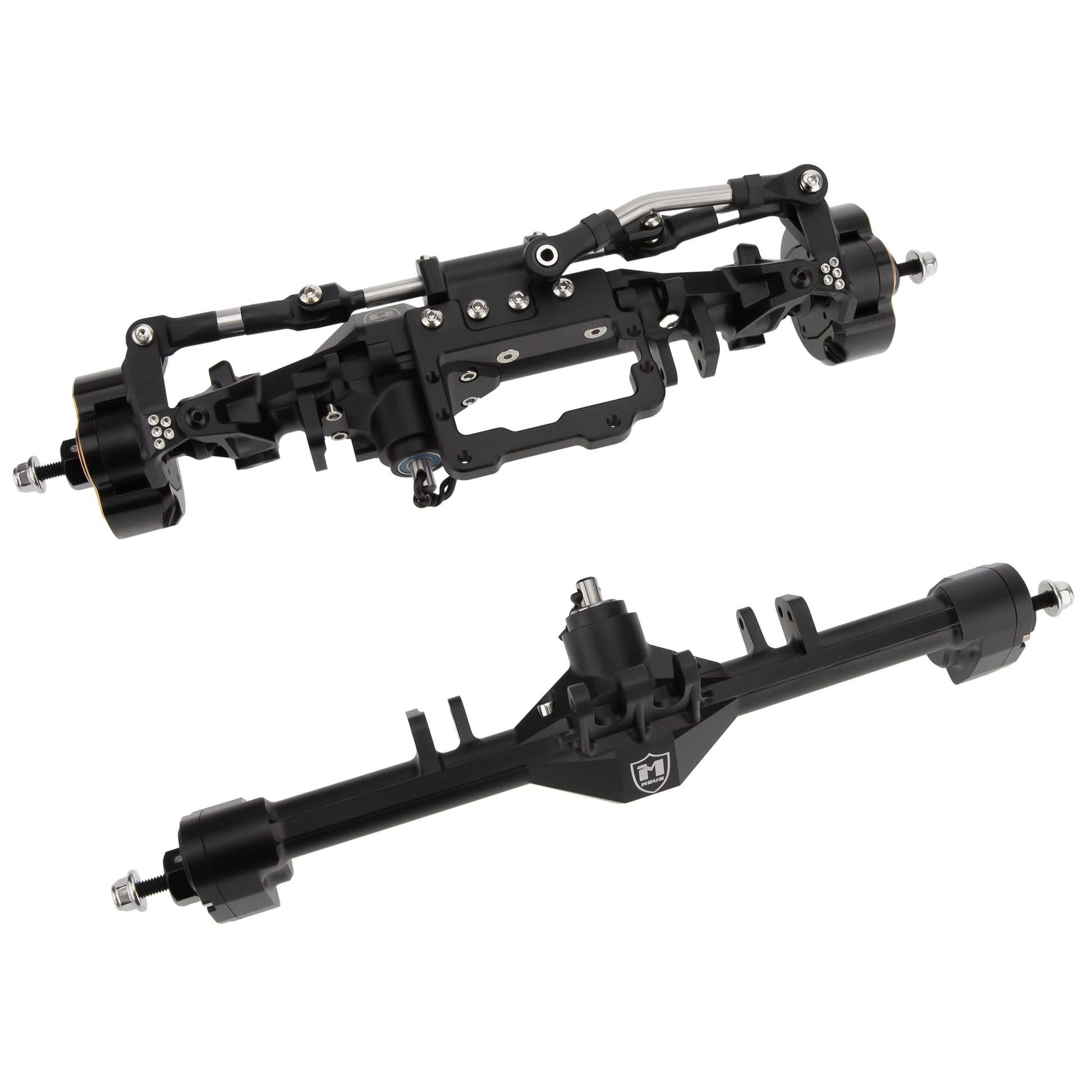

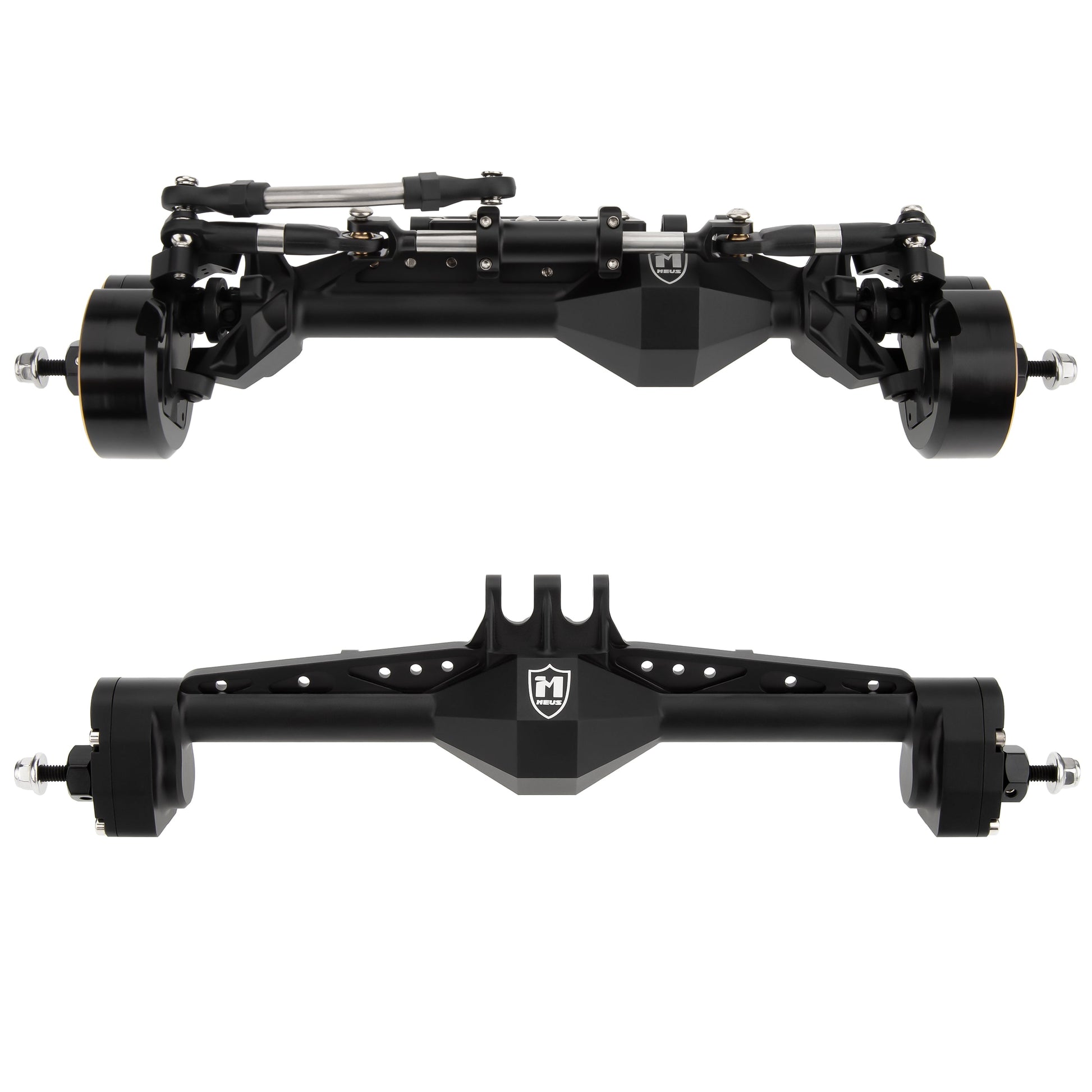

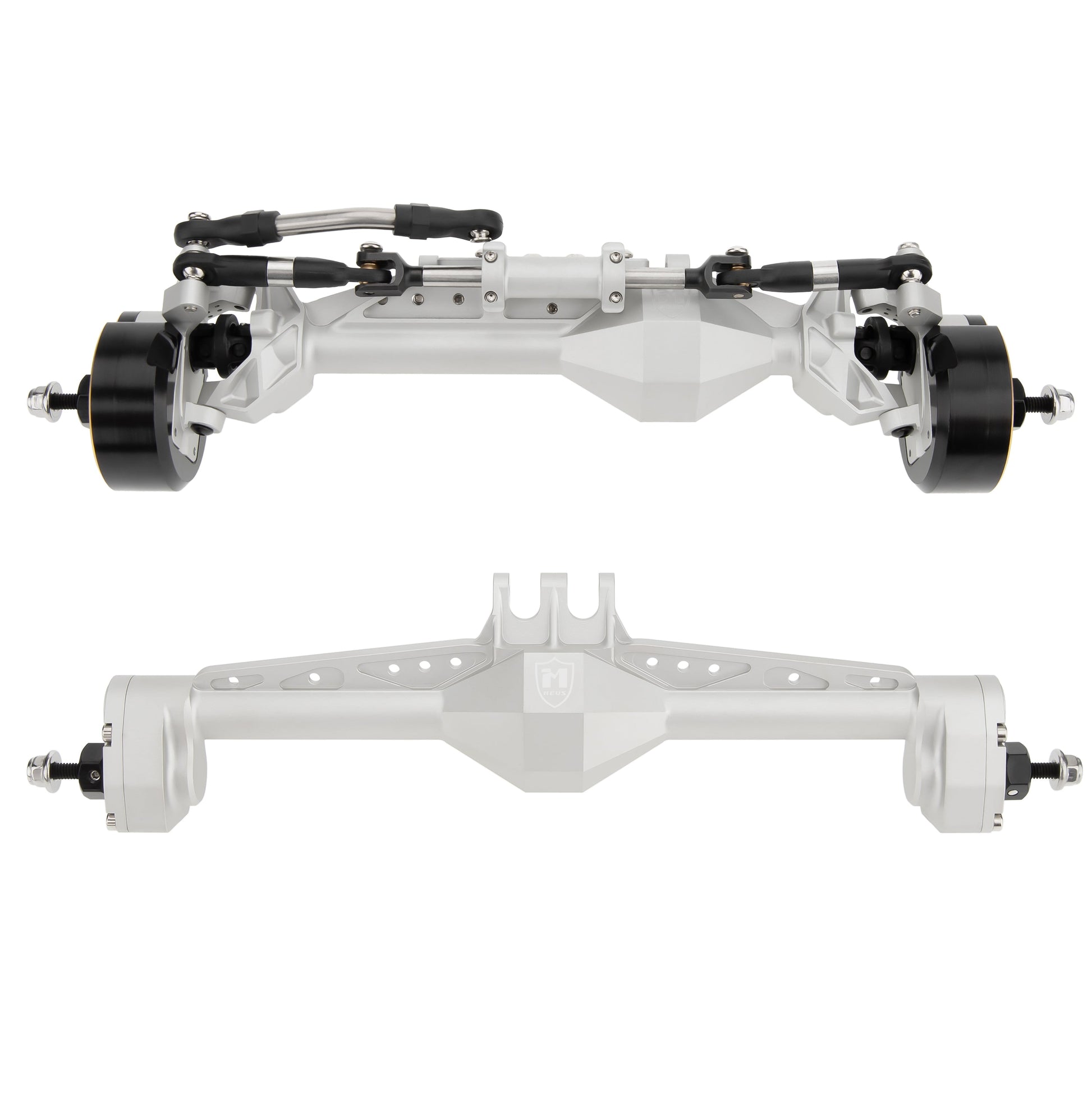

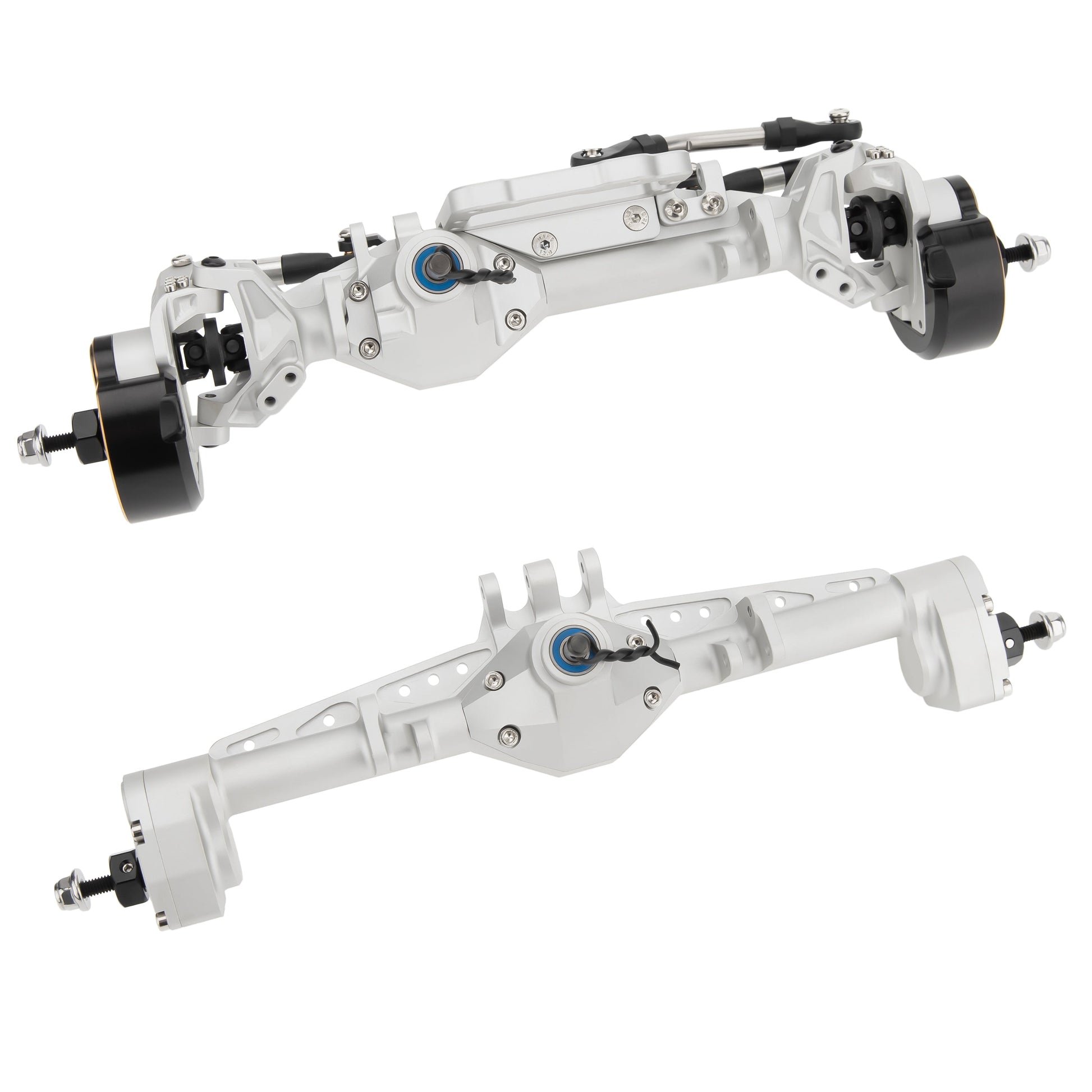

Front & rear axles

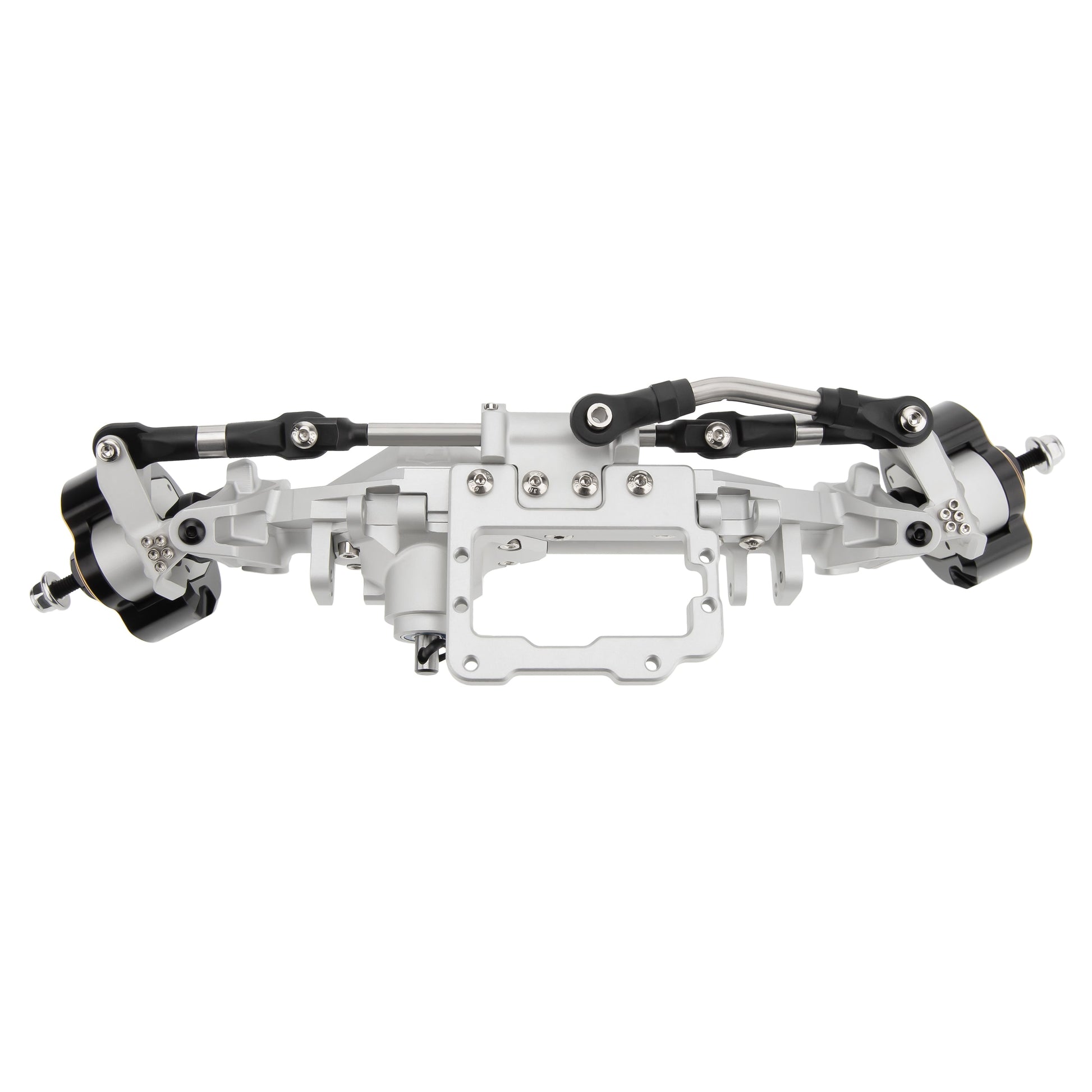

1 × CHEAT CODE V2 Capra 1.9 Isokinetic front axle
1 × CHEAT CODE V2 Capra 1.9 rear axle
1 set  × Steering Links
1 × Horizontal Servo Mount
1 × Vertical Servo Mount.
1× 25T Servo horns.

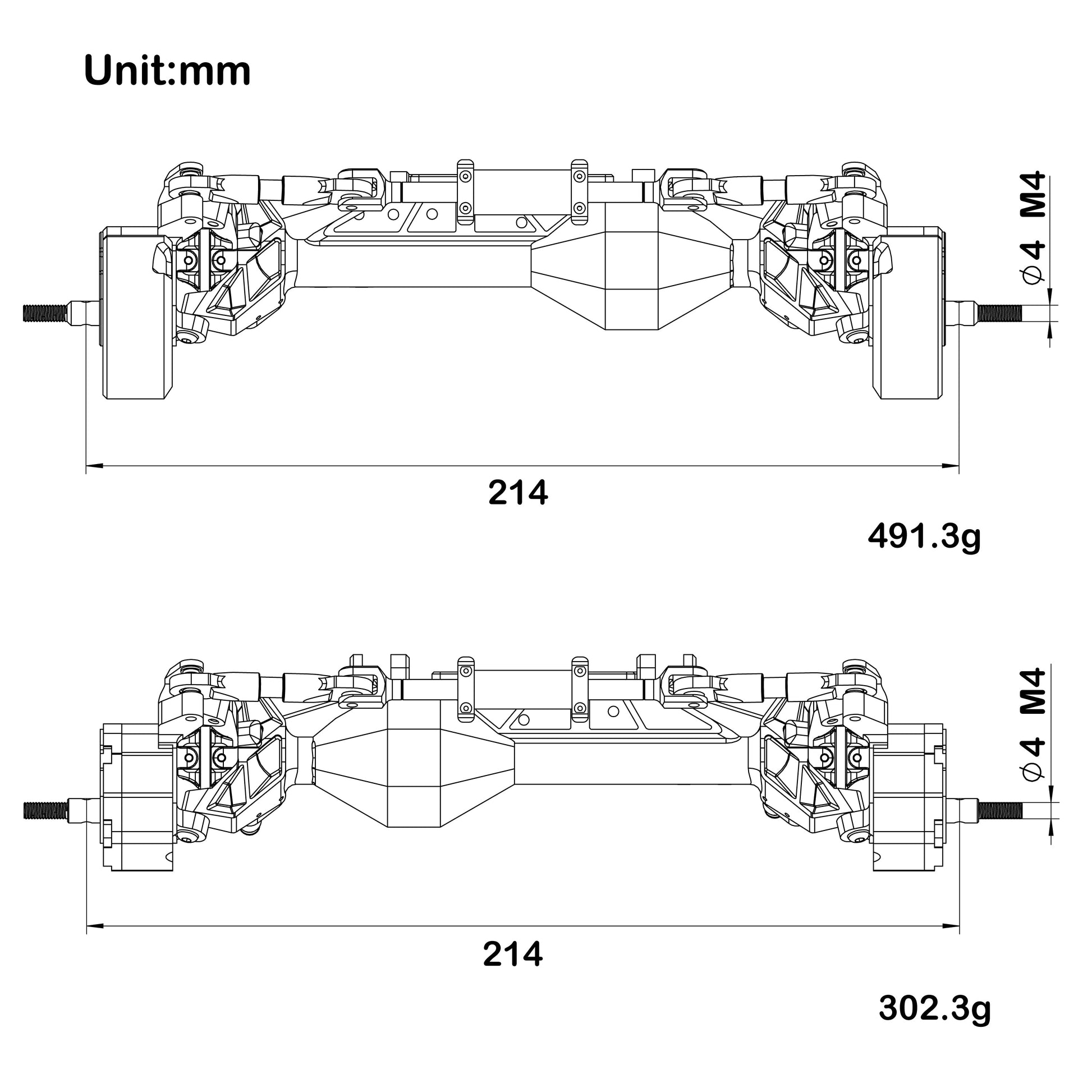

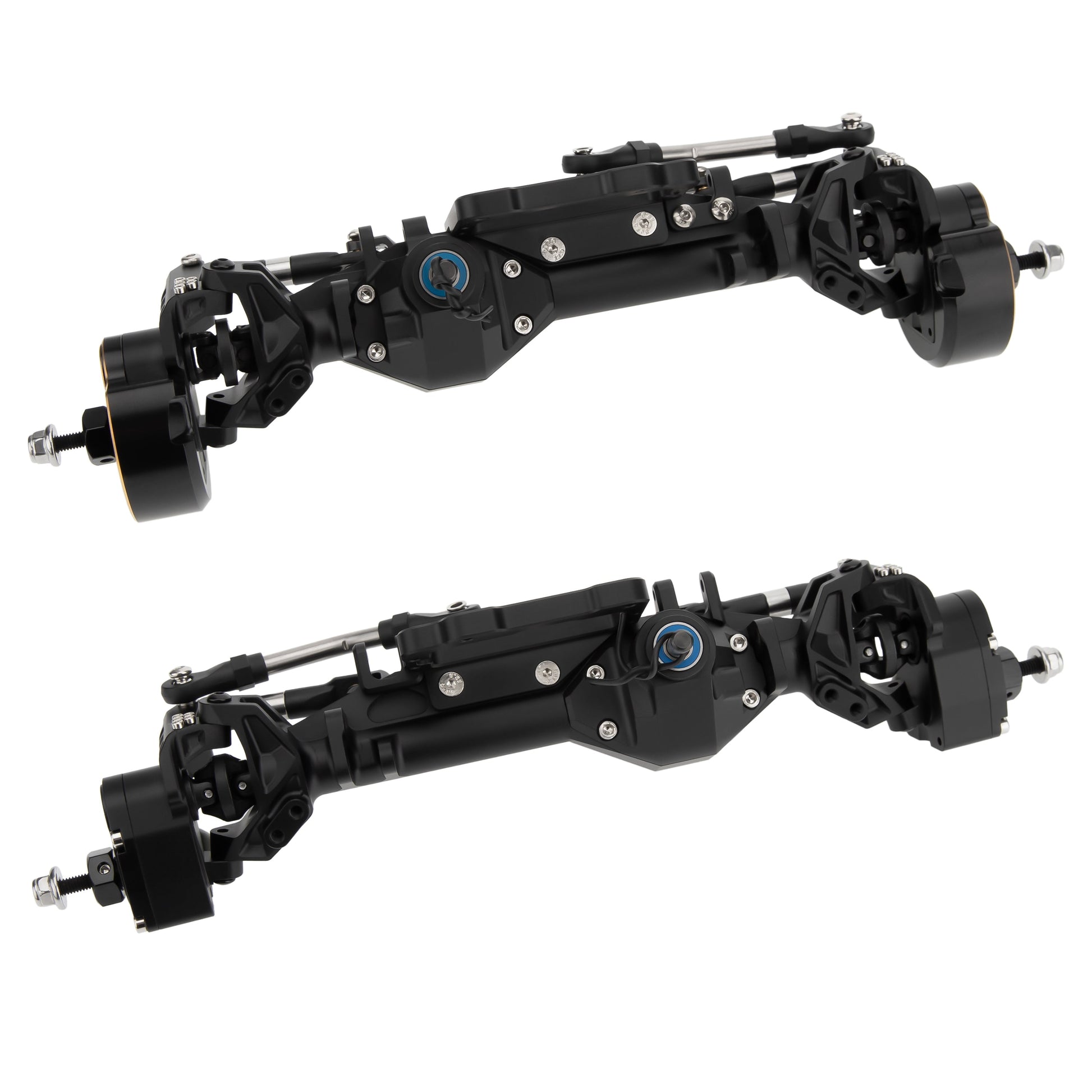

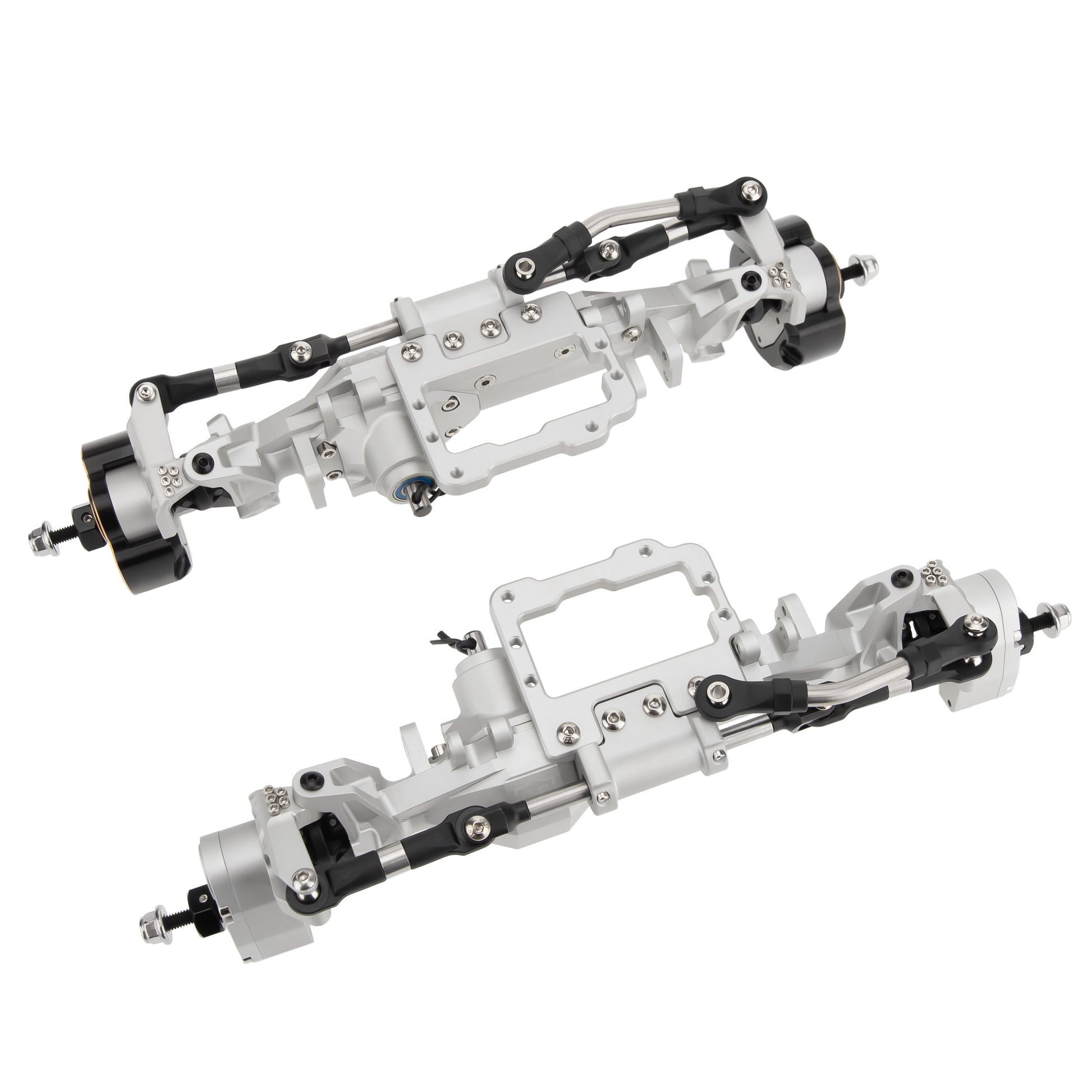

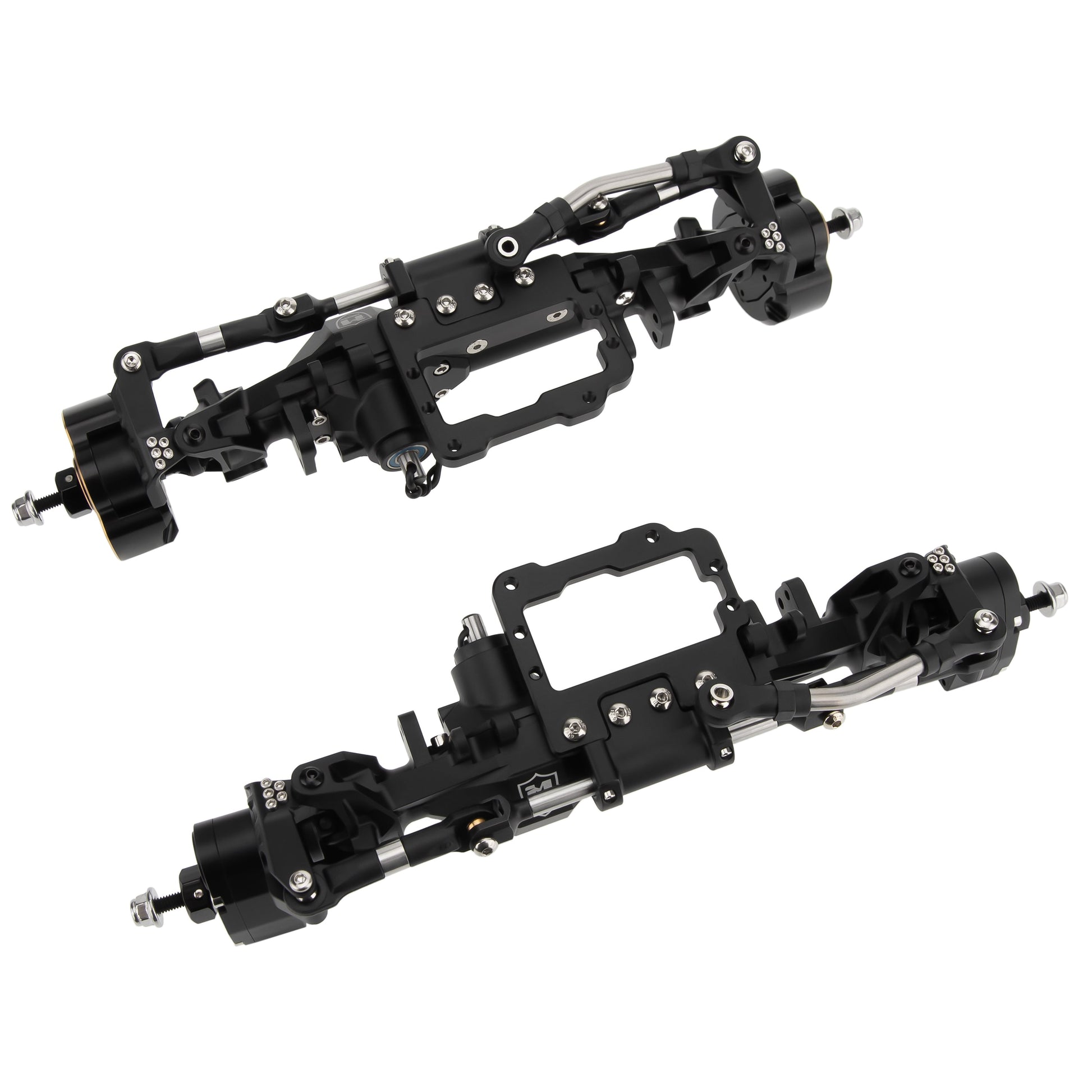

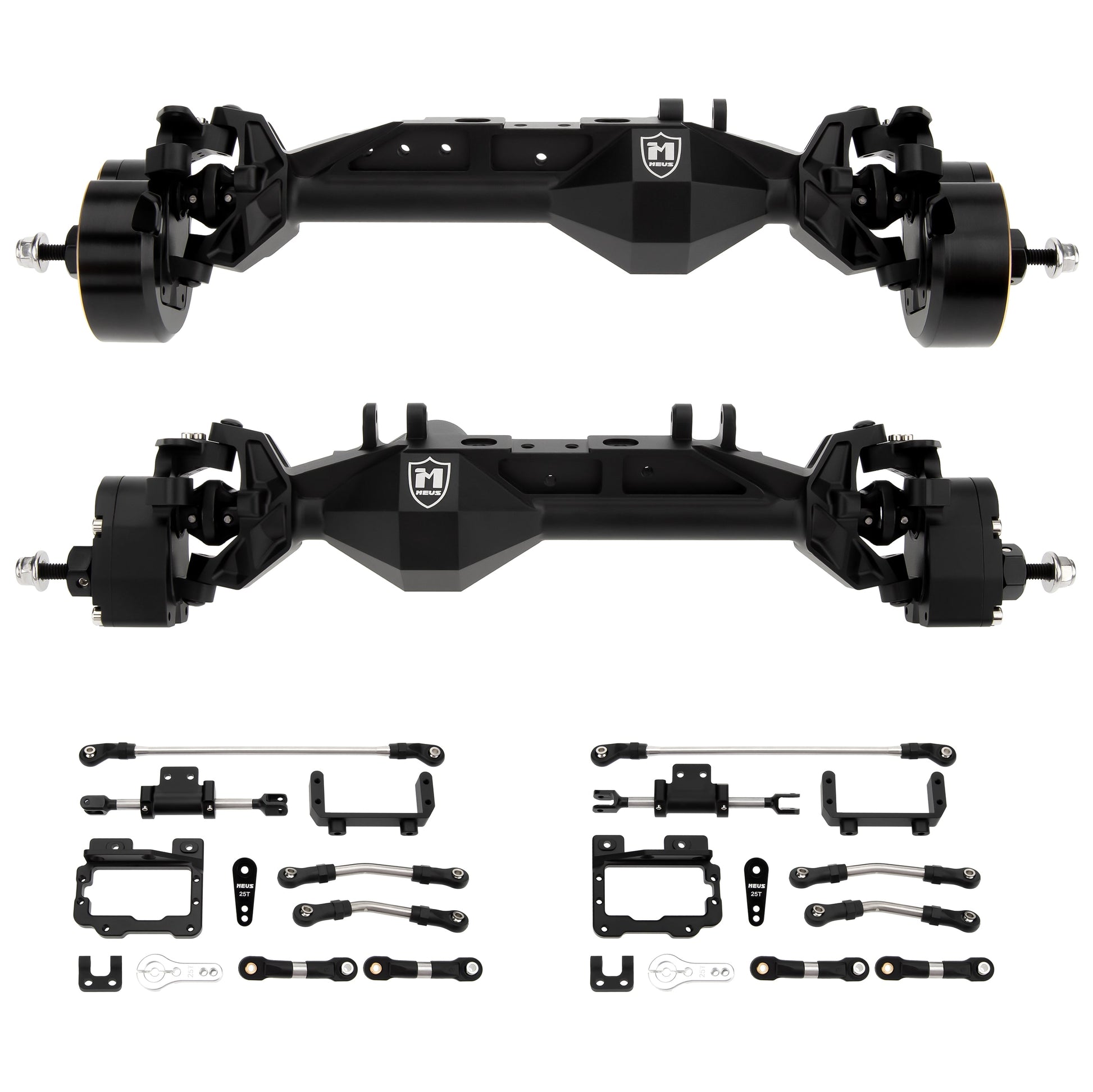

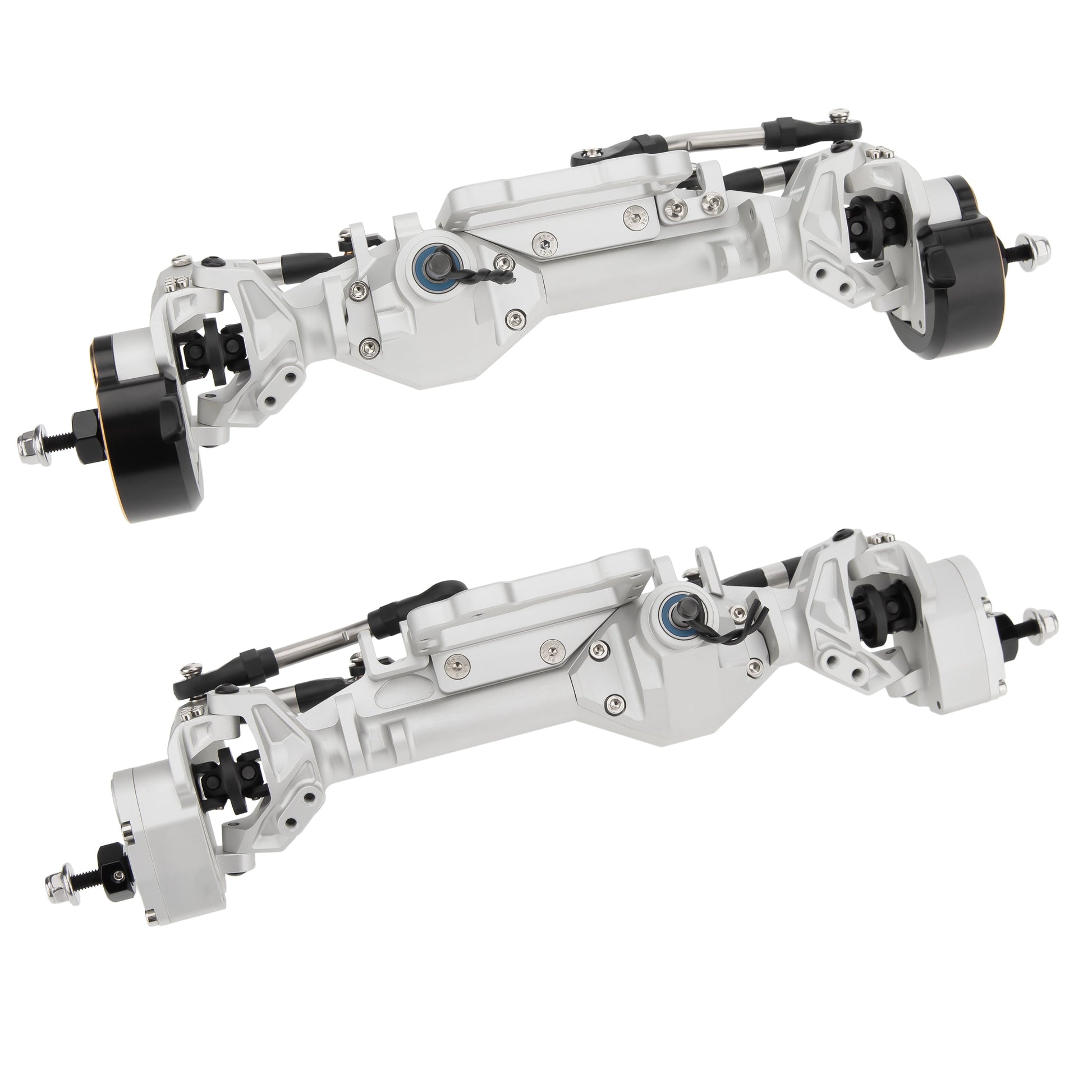

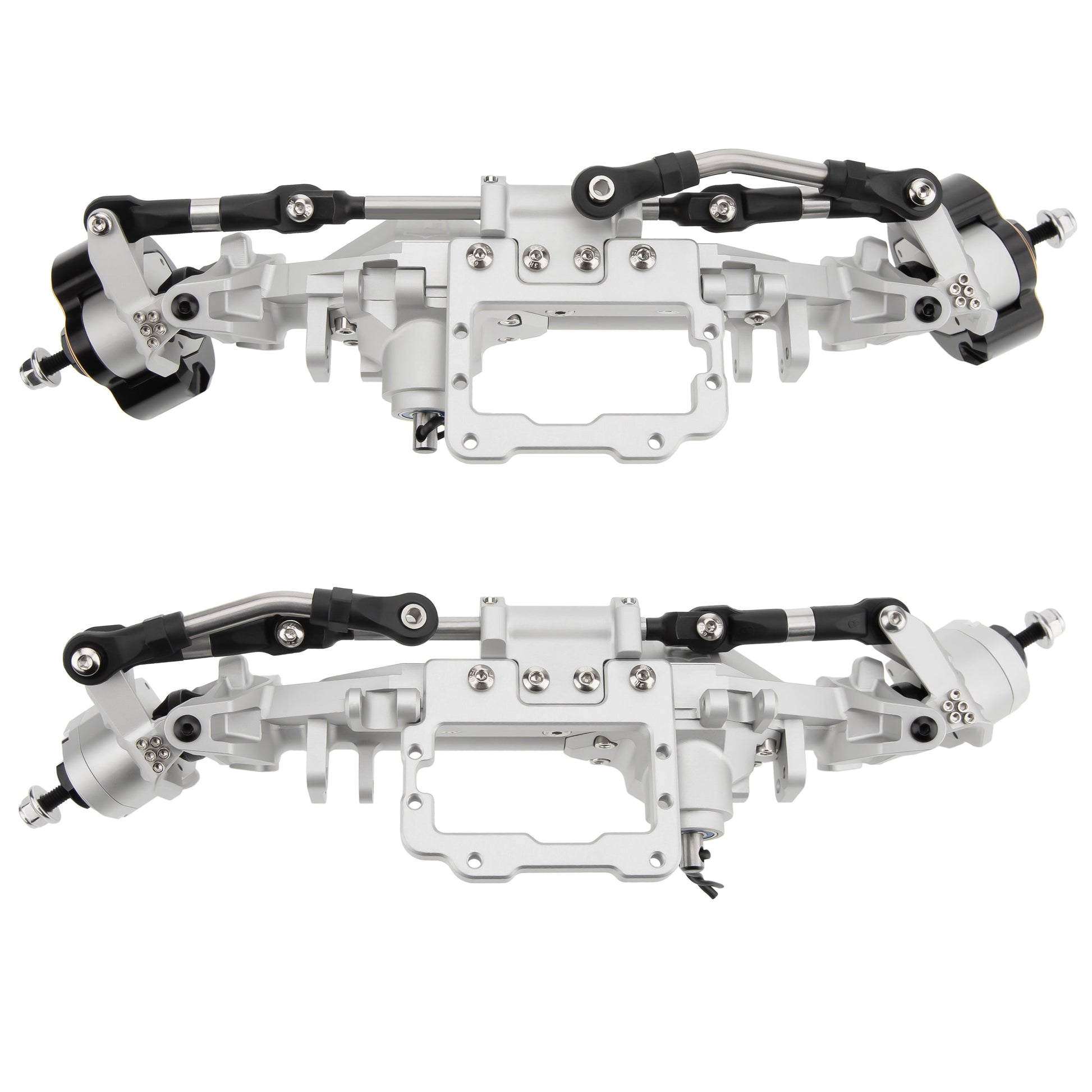

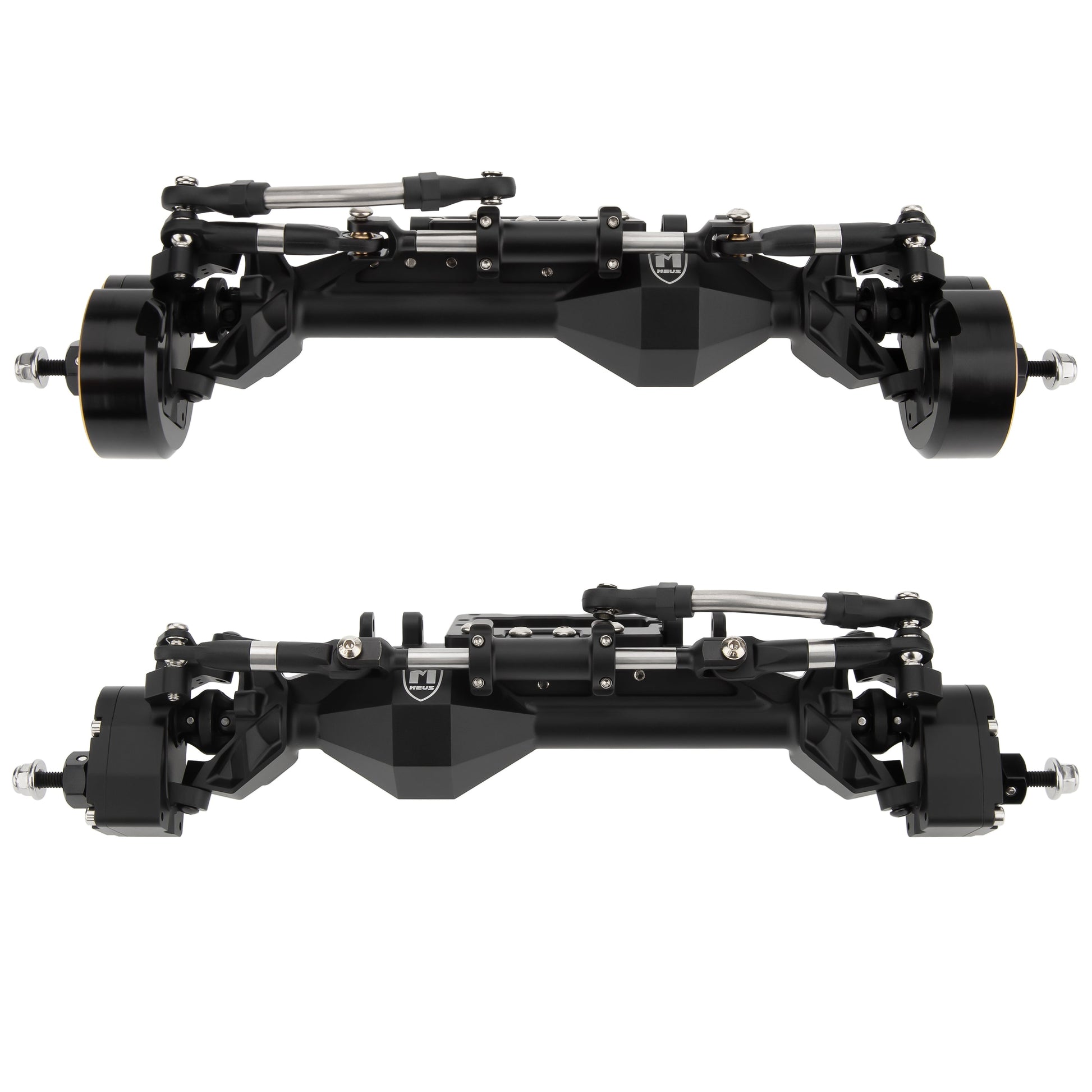

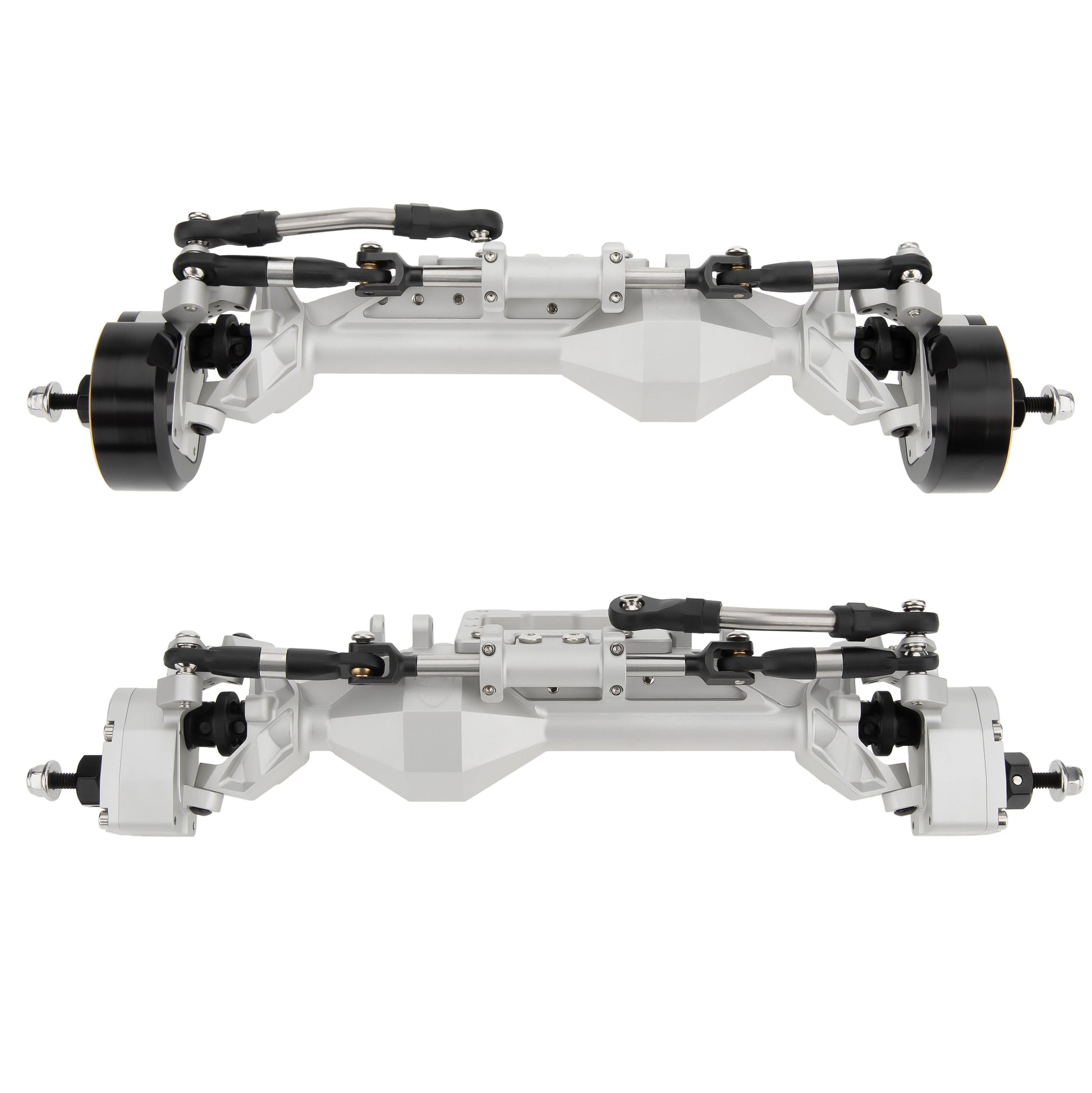

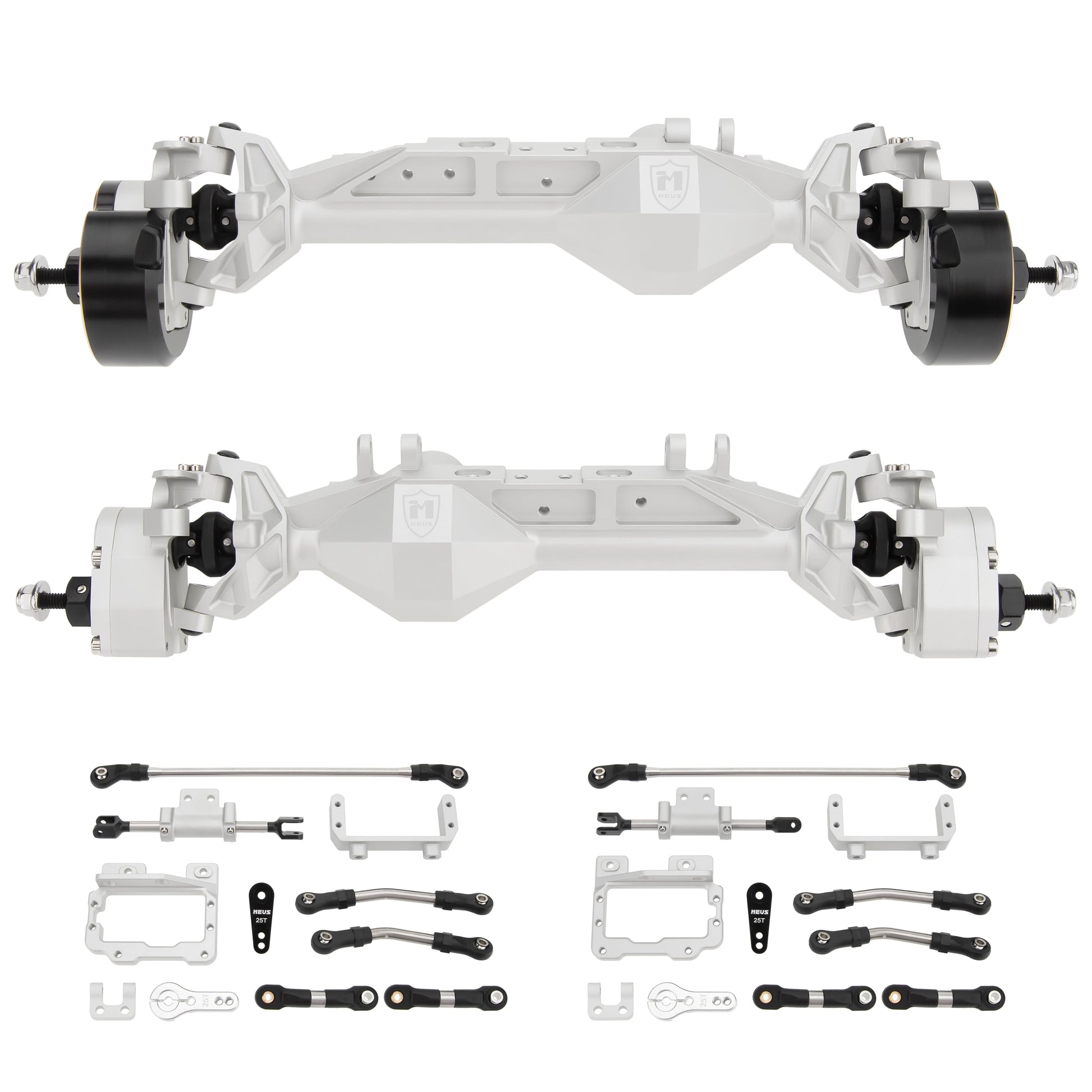

4WS axles(Option)

1 × CHEAT CODE V2 Capra 1.9 Isokinetic front  axle
1 × CHEAT CODE V2 Capra 1.9 rear steering axle
2 set  × Steering Links
2 × Horizontal Servo Mount
2 × Vertical Servo Mount
2× 25T Servo horns
