MEUS Racing 8.5KG Coreless High Torque Micro Servo with Adjustable Brass Servo Mount + Steering Horn for TRX4M 1/18 RC Crawler Upgrade Parts
SKU: TRX4M-01-KY0387
Regular price
$49.99
Sale price
$49.99
Regular price
Unit price
-
Estimated Delivery:Aug 06 - Aug 10
-
Free Shipping & Returns: On all orders over $75
MEUS Racing 8.5KG Coreless High Torque Micro Servo with Adjustable Brass Servo Mount + Steering Horn for TRX4M 1/18 RC Crawler Upgrade Parts
Regular price
$49.99
Sale price
$49.99
Regular price
Unit price
Product description
Shipping & Return

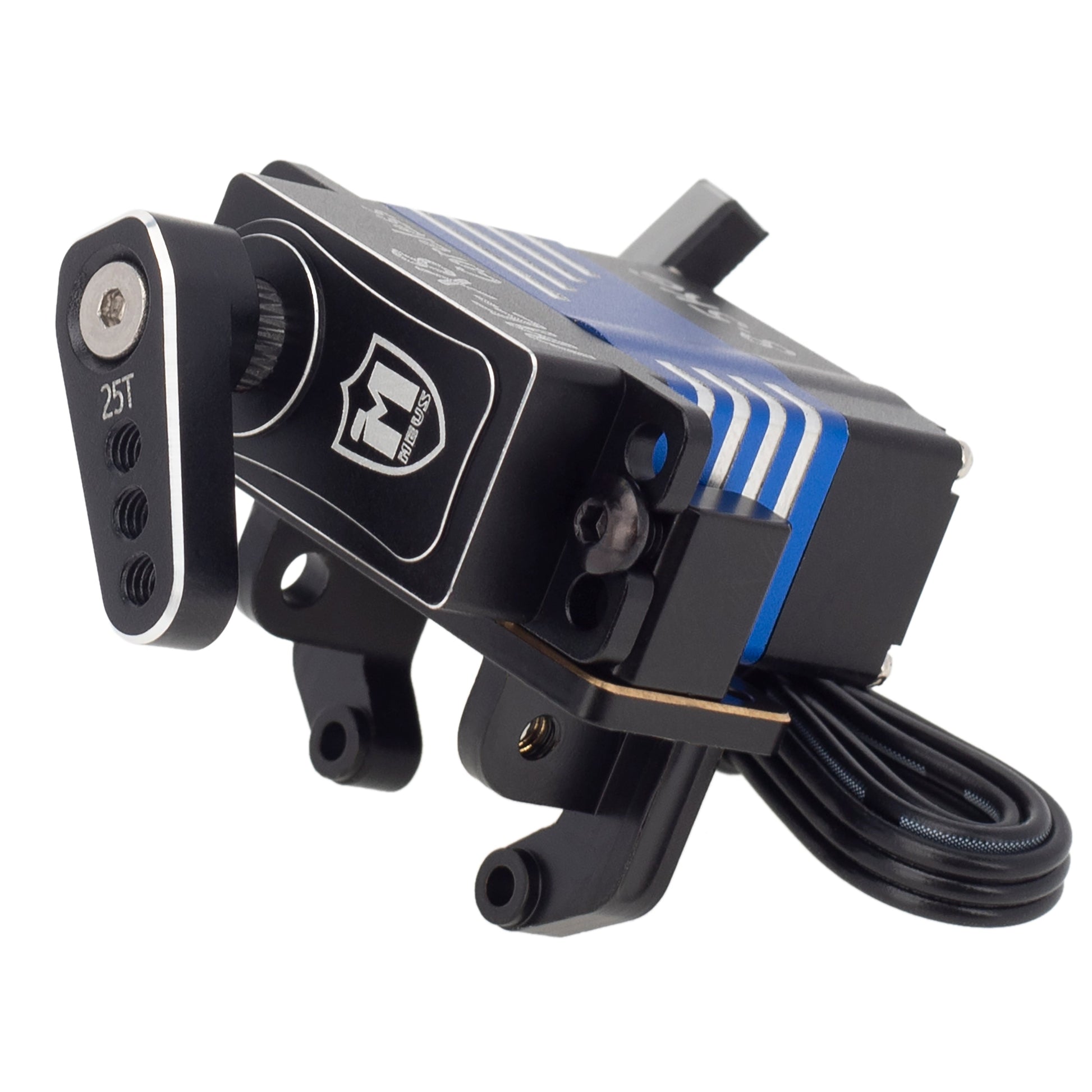

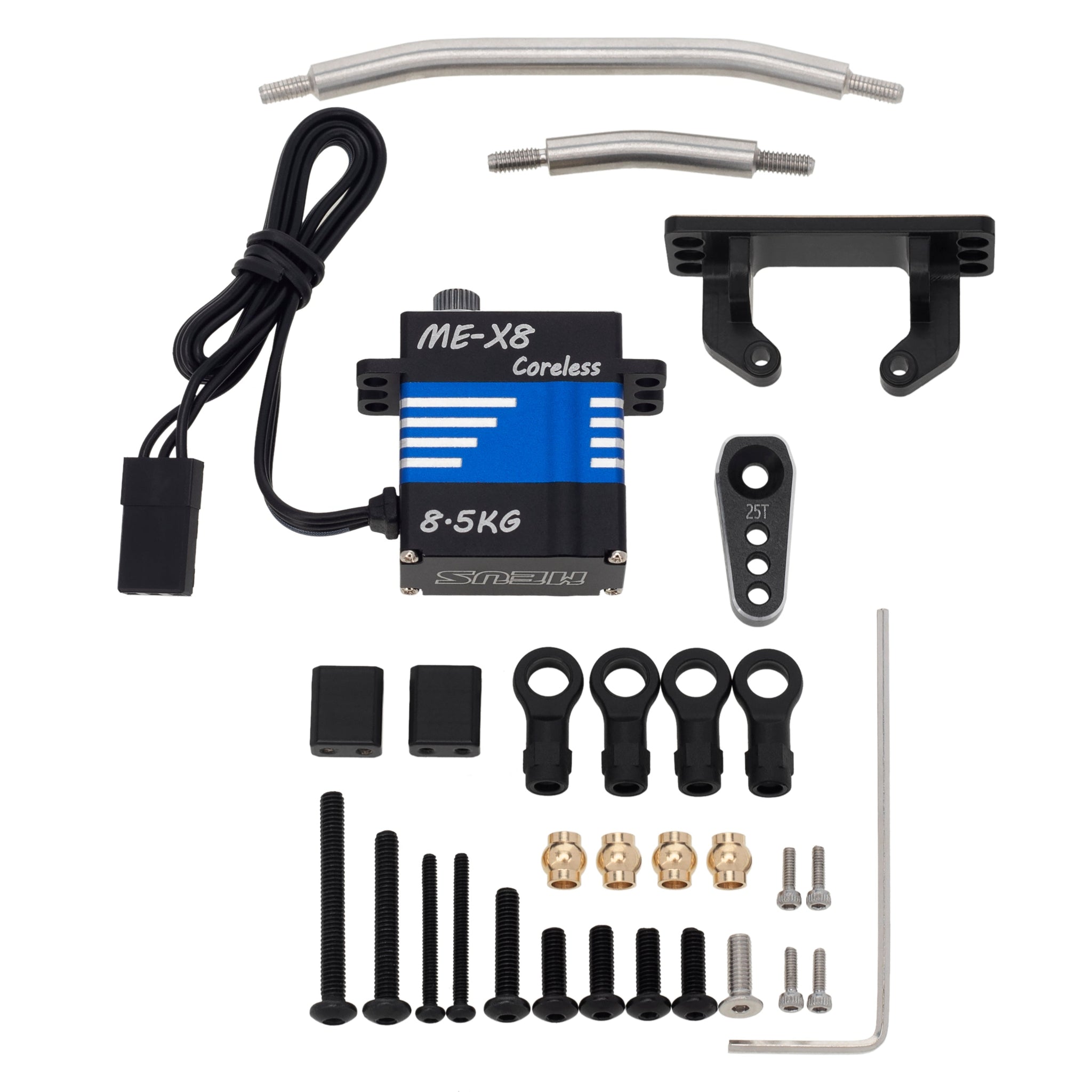

MEUS Racing Digital High-Torque 8.5KG Coreless High Torque Micro Servo with Adjustable Brass Servo Mount + Steering Horn for TRX4M 1/18 RC Crawler Upgrade Parts.
Key Features:
- 1. High-precision metal gear coreless servo, with high torque, high sensitivity, stability, and low noise.

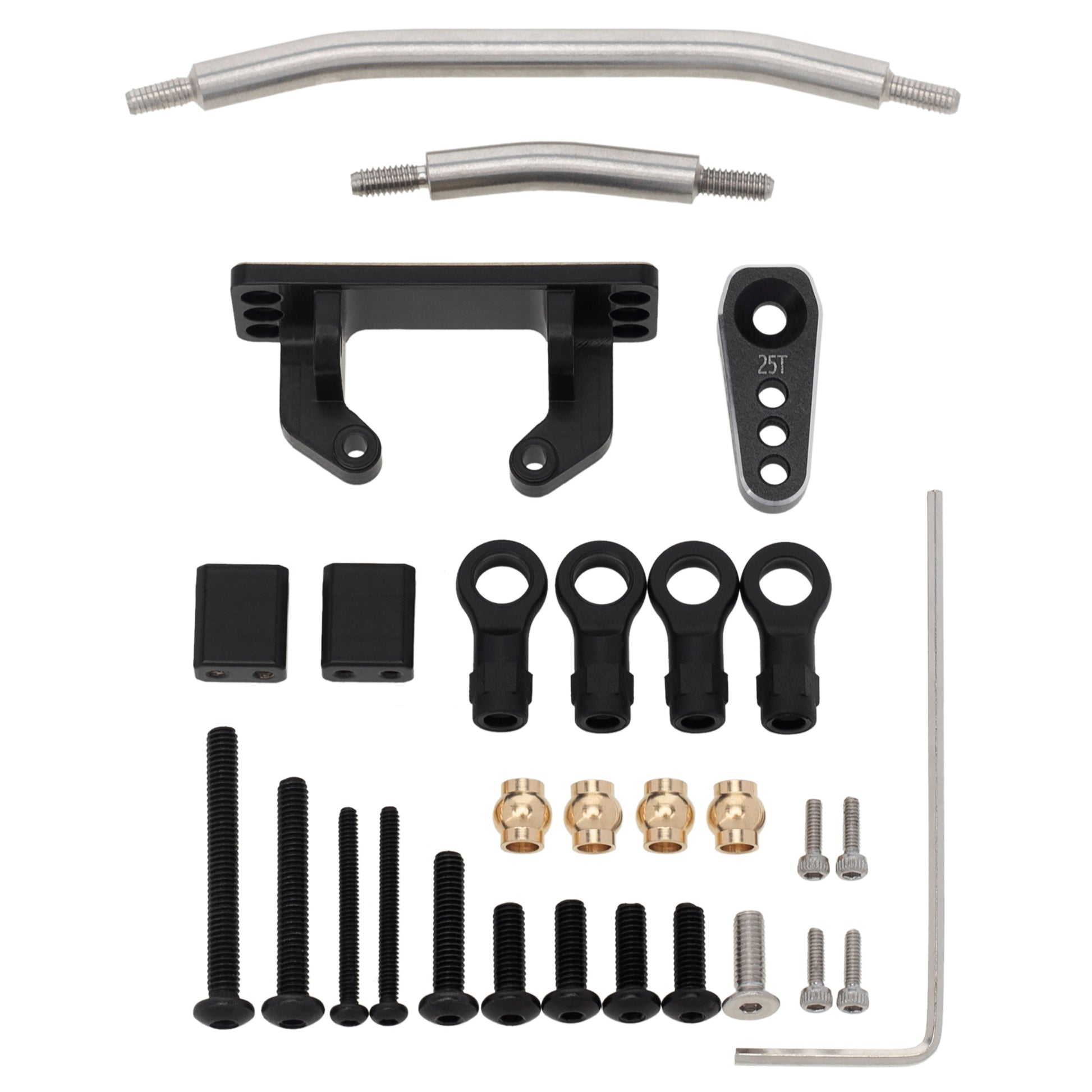

- 2. Brass servo machine mounts to add weight to the front axle. It can also adjust the front and rear clearance of the servo.

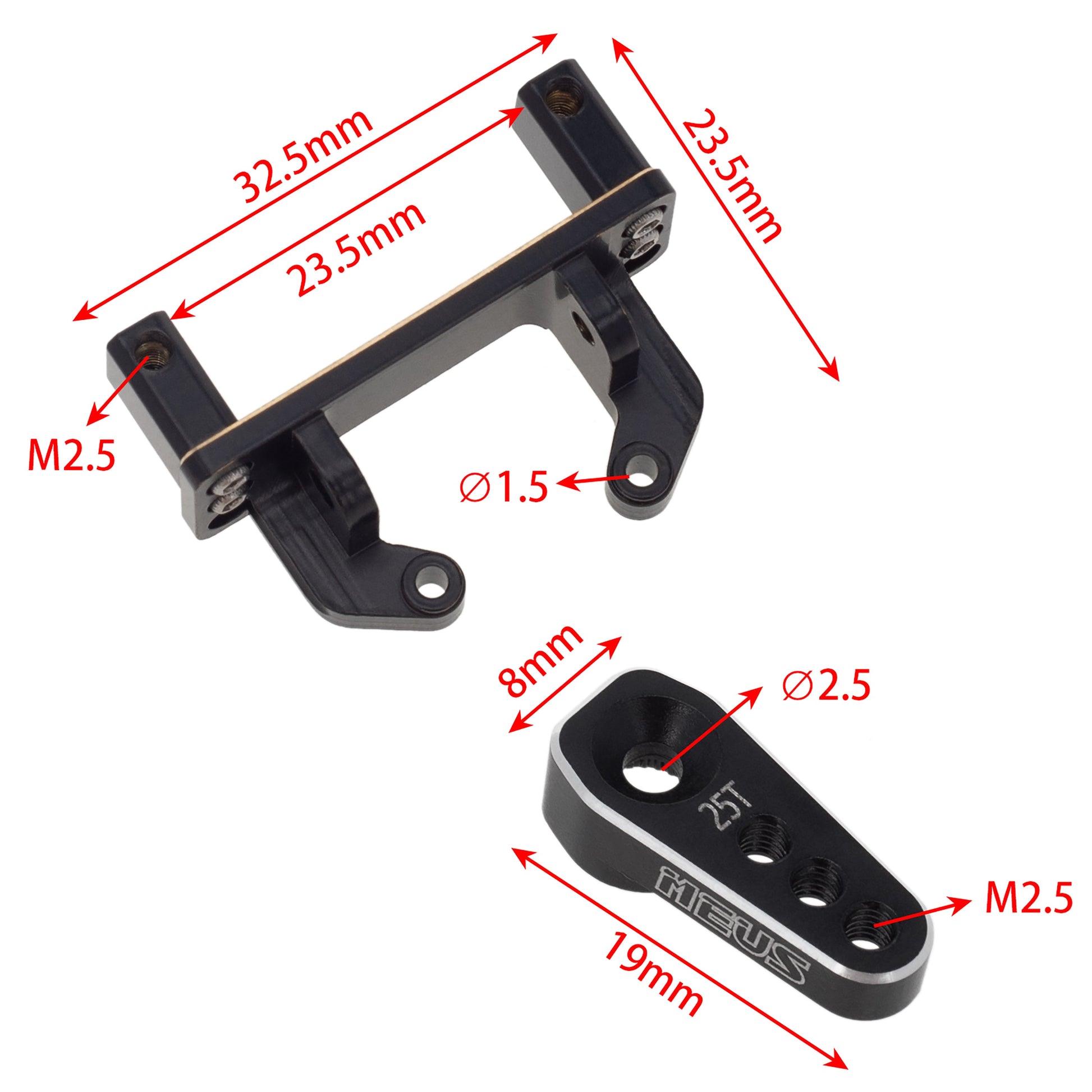

- 3. By adjusting the servo mounting ears, the mounting distance of 3.5MM can be moved.

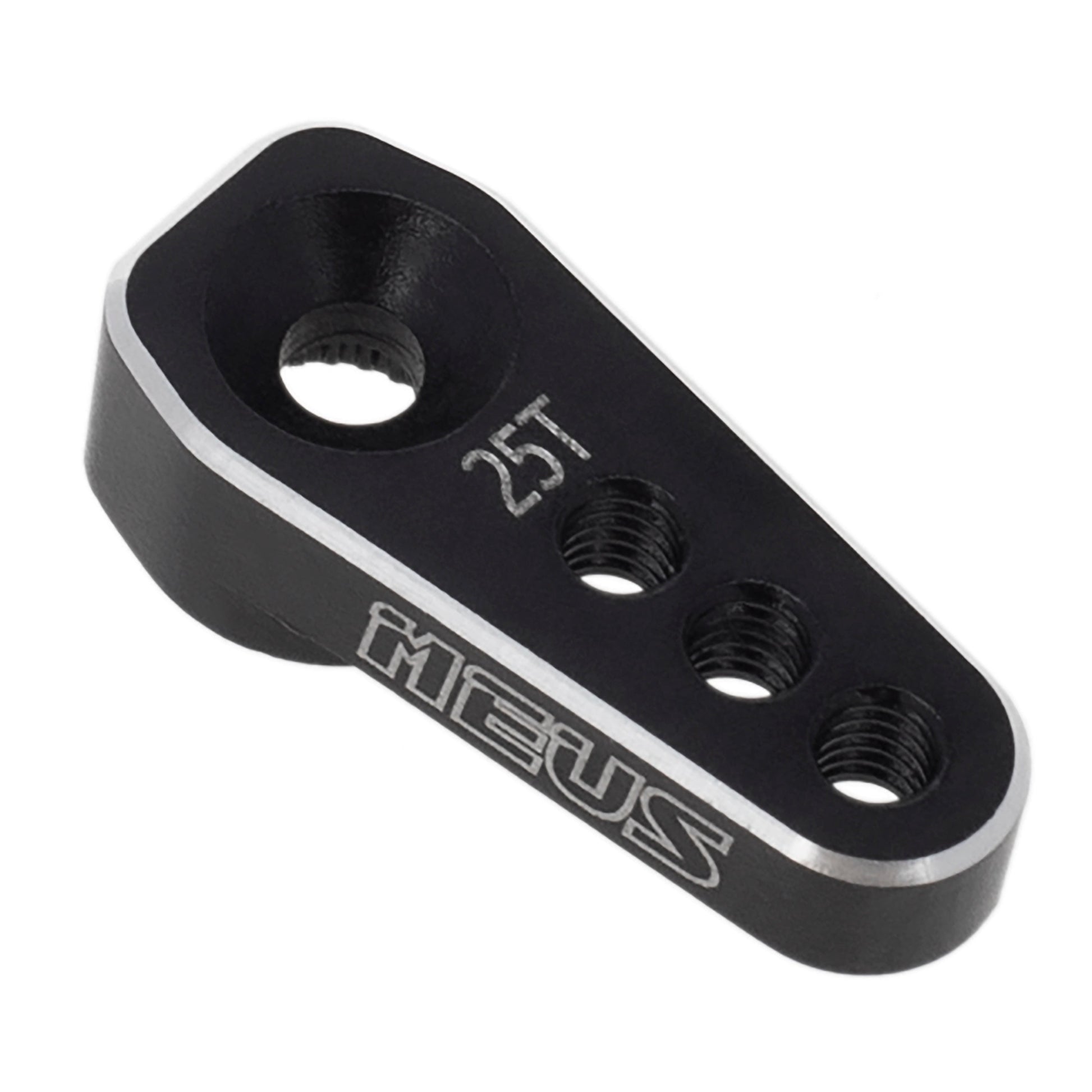

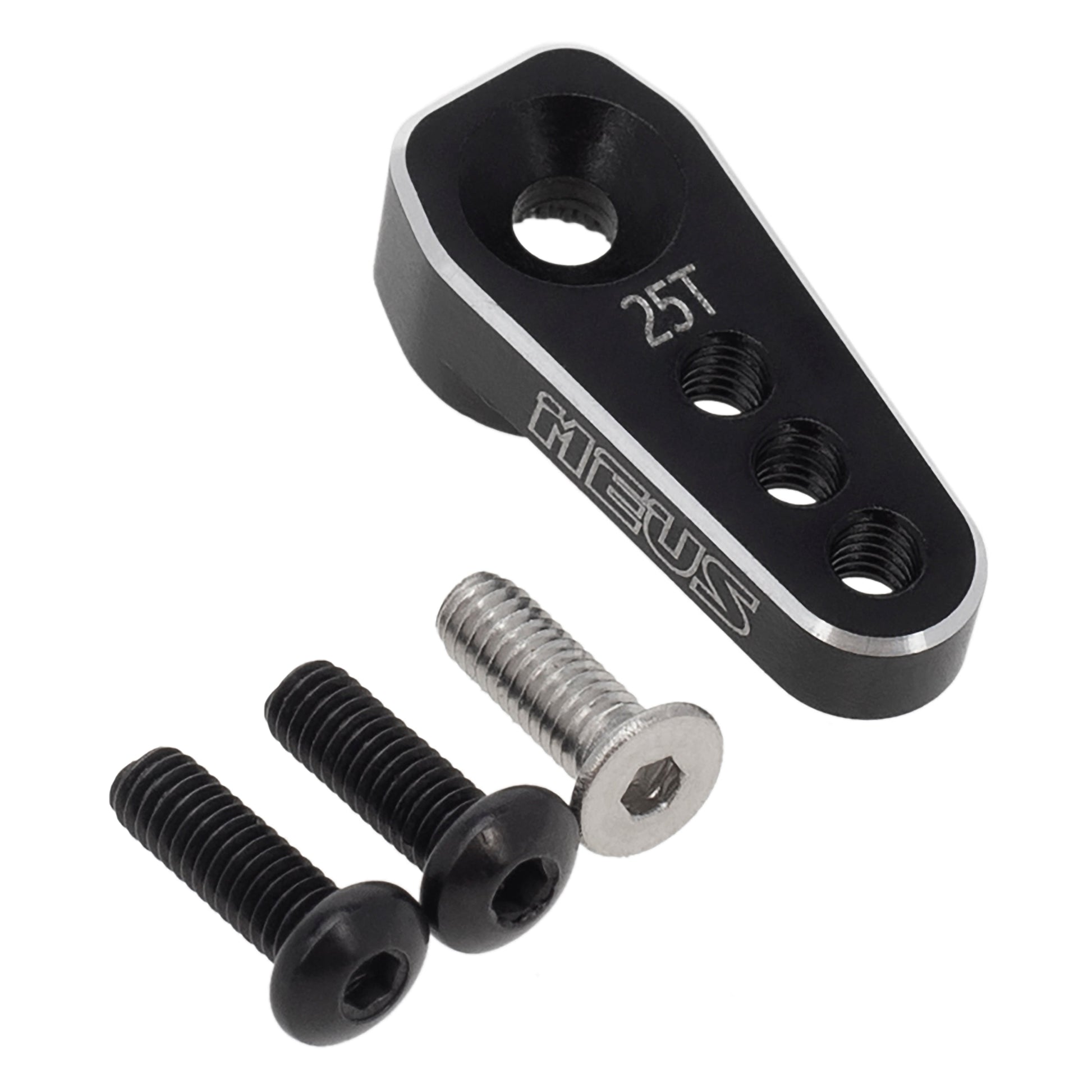

- 4. Aluminum alloy servo horn, sturdy and durable

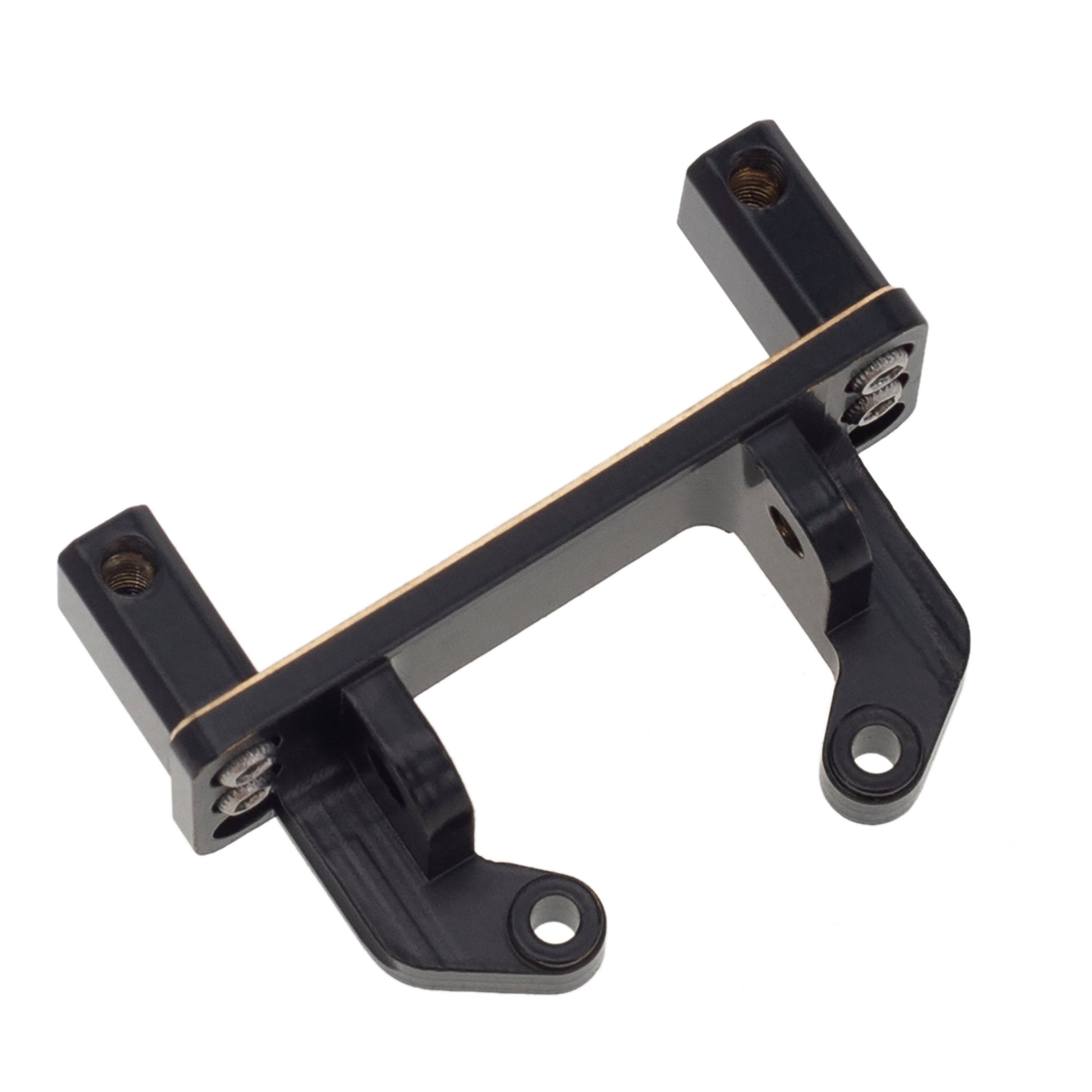

- 5. The servo mount is made of brass, CNC machined and anodized black treatment, exquisite and durable;

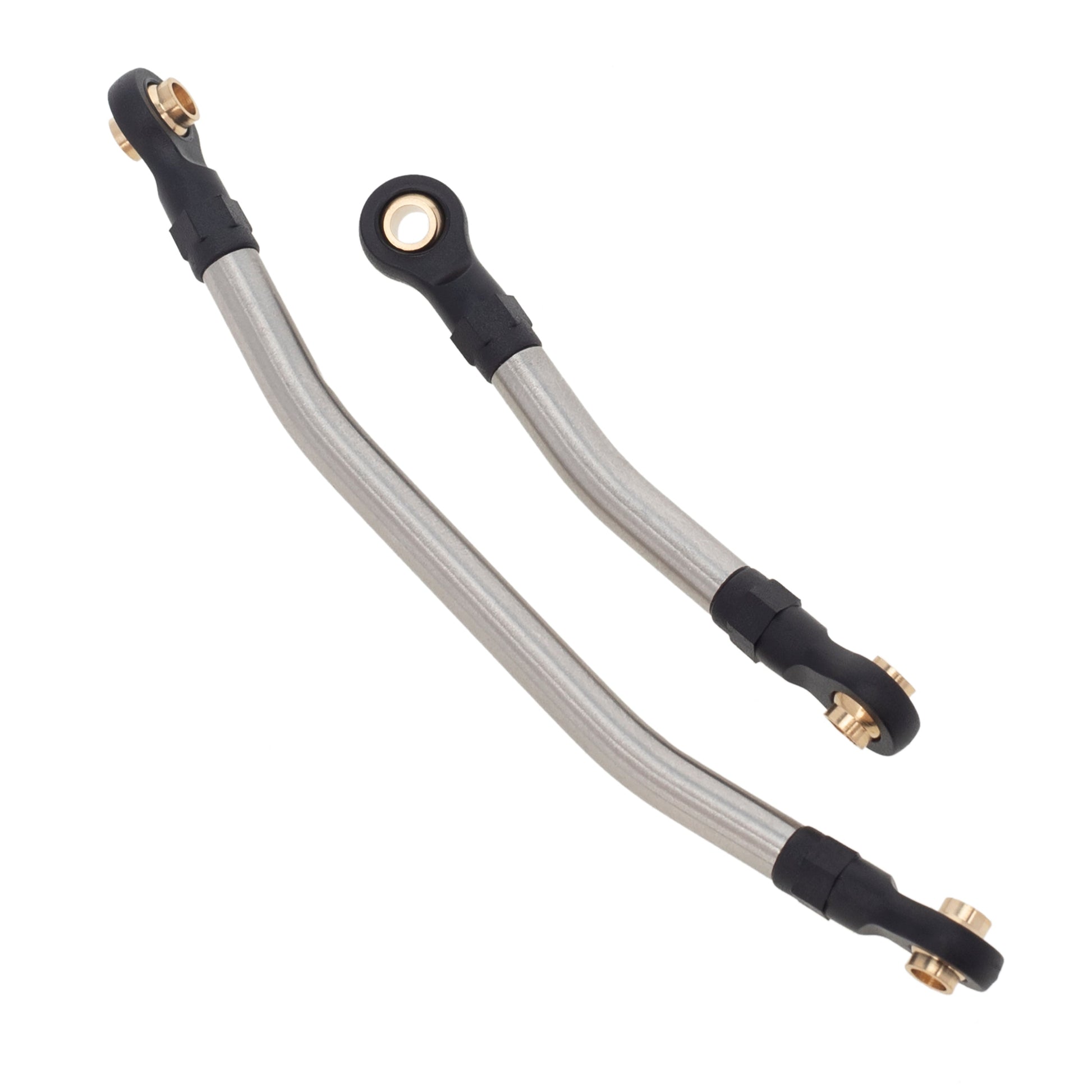

- 6. Equipped with 2 stainless steel steering linkages; place the servo horizontally, it makes the TRX-4m's center of gravity lower.
- 7. Adjustable servo forward and backward movement spacing, adjustable 3.5MM. and it is equipped with an aluminum alloy servo horn, suitable for high torque servo.
- 8. Not applicable to the stock frame; suitable for TRX4M modified chassis, need to cut the original axle connecting rod seat before installation.
Specifications:
Product Number: ME-X8
Operating Voltage: 4.8~8.4VDC
Max. Torque-6.0V: ≥ 6 kg.cm
Max. Torque-7.4V: ≥ 7.5 kg.cm
Max. Torque-8.4V: ≥8.5 kg.cm
No Load Speed-6.0V: ≦0.07sec/60°
No Load Speed-7.4V: ≦0.06sec/60°
No Load Speed-8.4V: ≦0.058sec/60°
Operating Travel Angle: 180°+10°(500~2500 us)
Motor Type: Coreless motor
Horn Gear Spline: 25T/∅4.90mm
Gear Set Material: Metal gear
Weight：21.6+ 0.5g

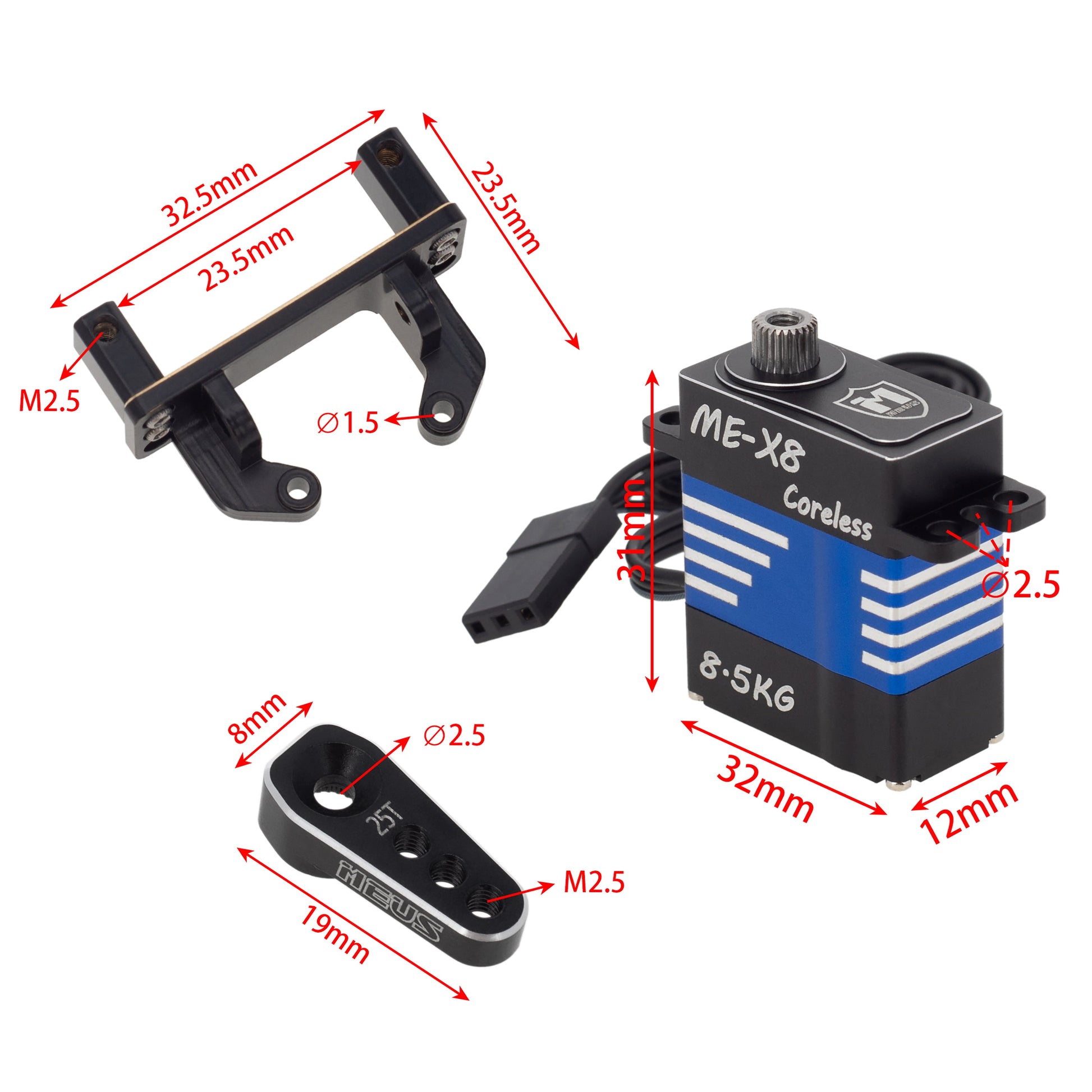

Size：23*12*27mm

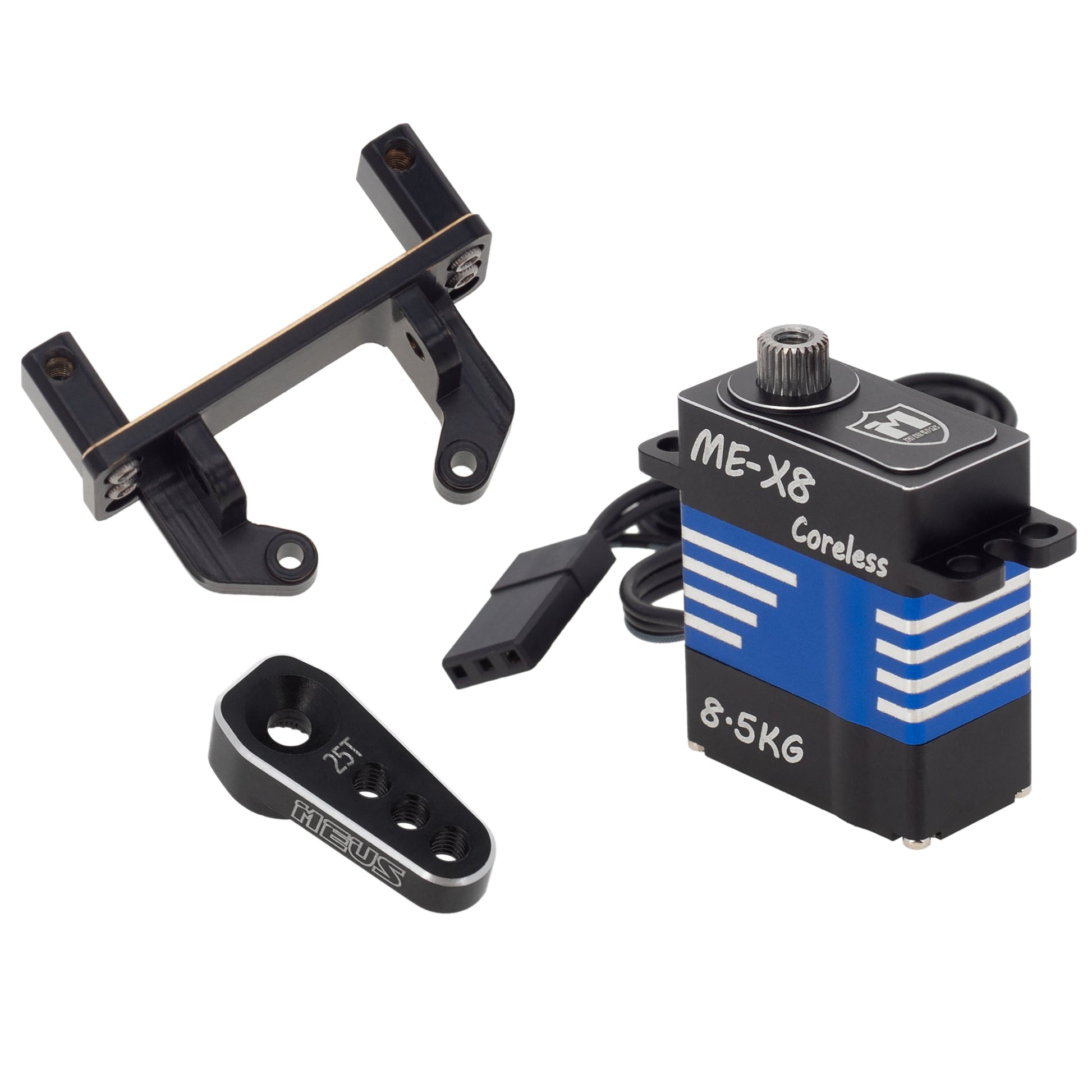

Packing List:
1 × 8.5KG servo;
1 × Servo horn;
1 × Brass servo mount.
