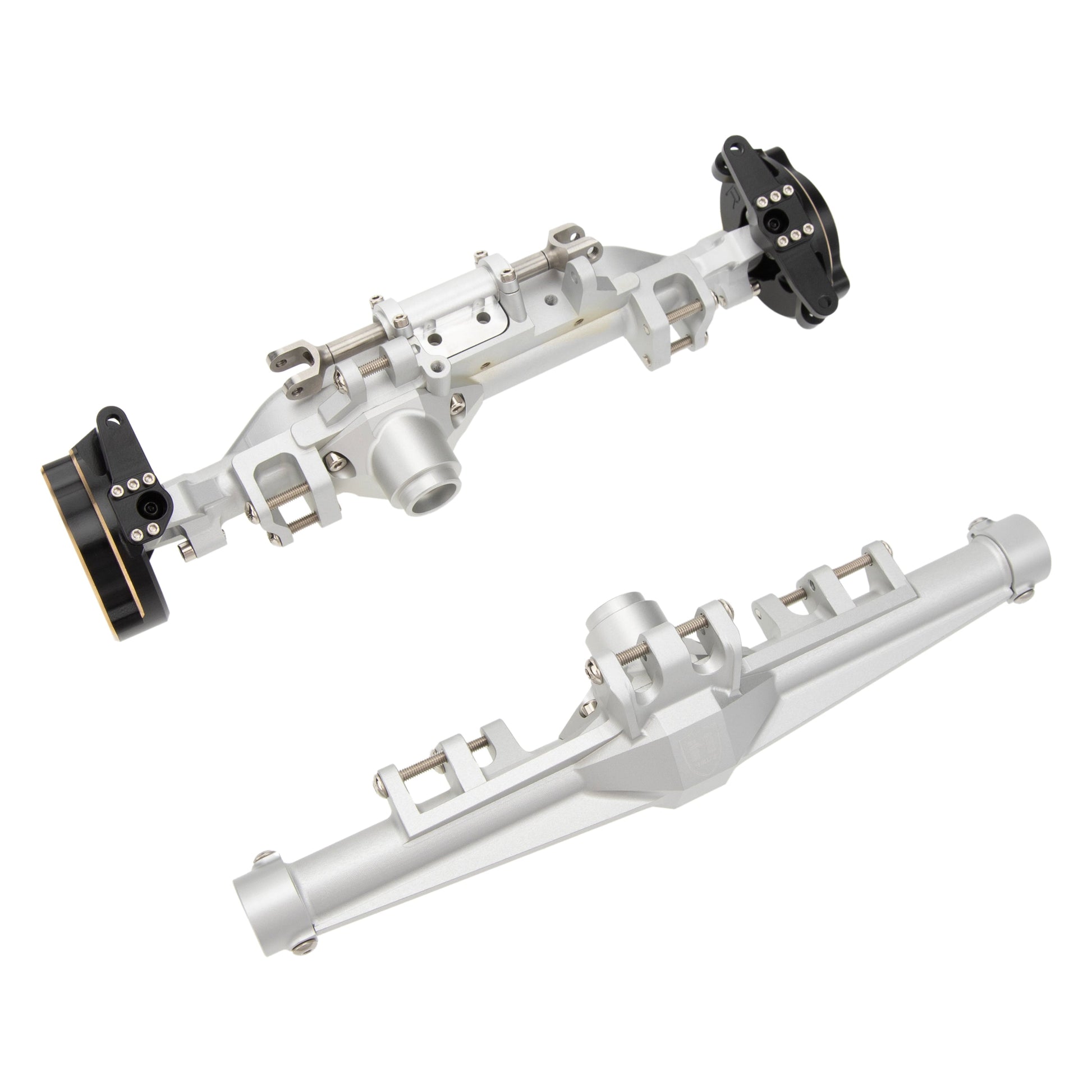

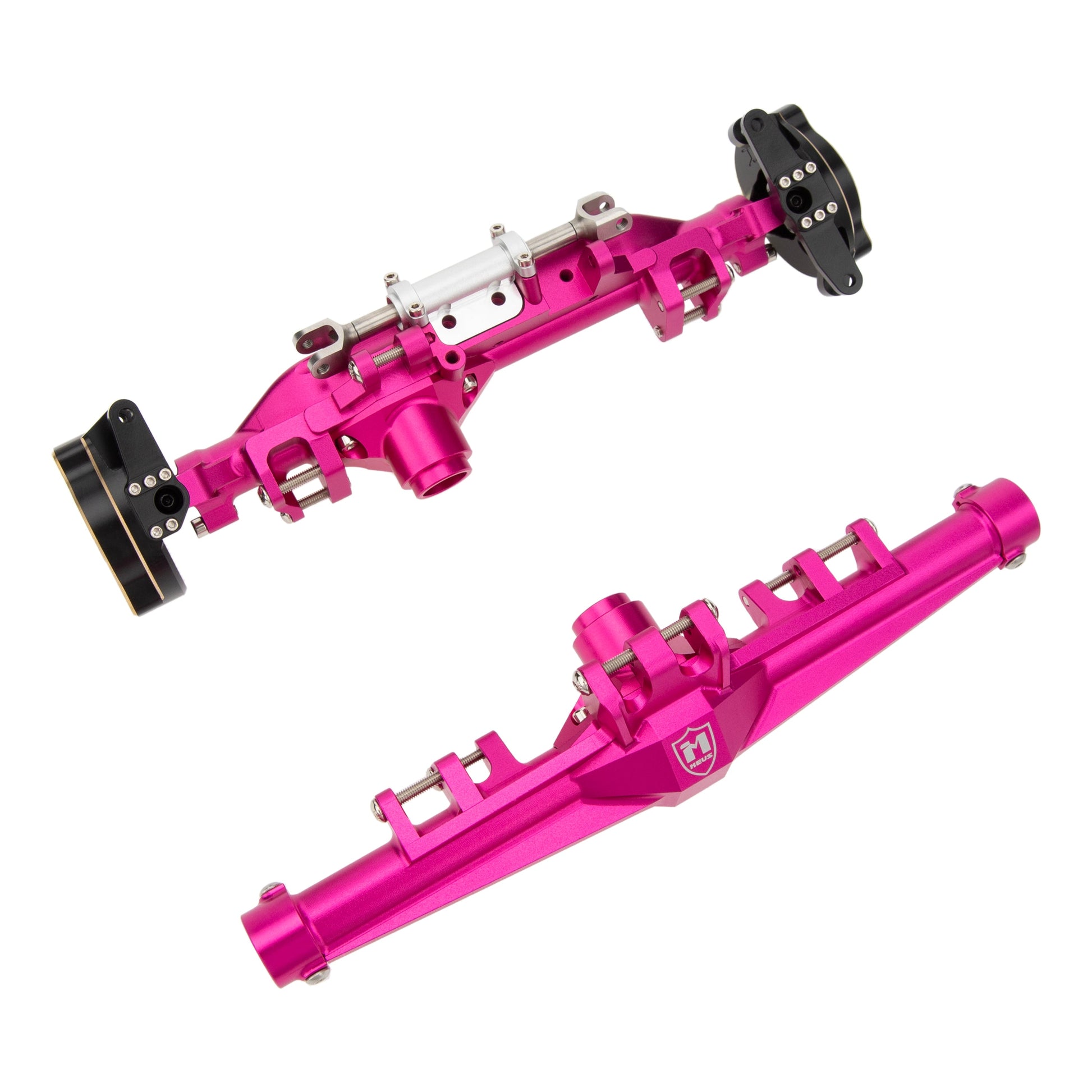

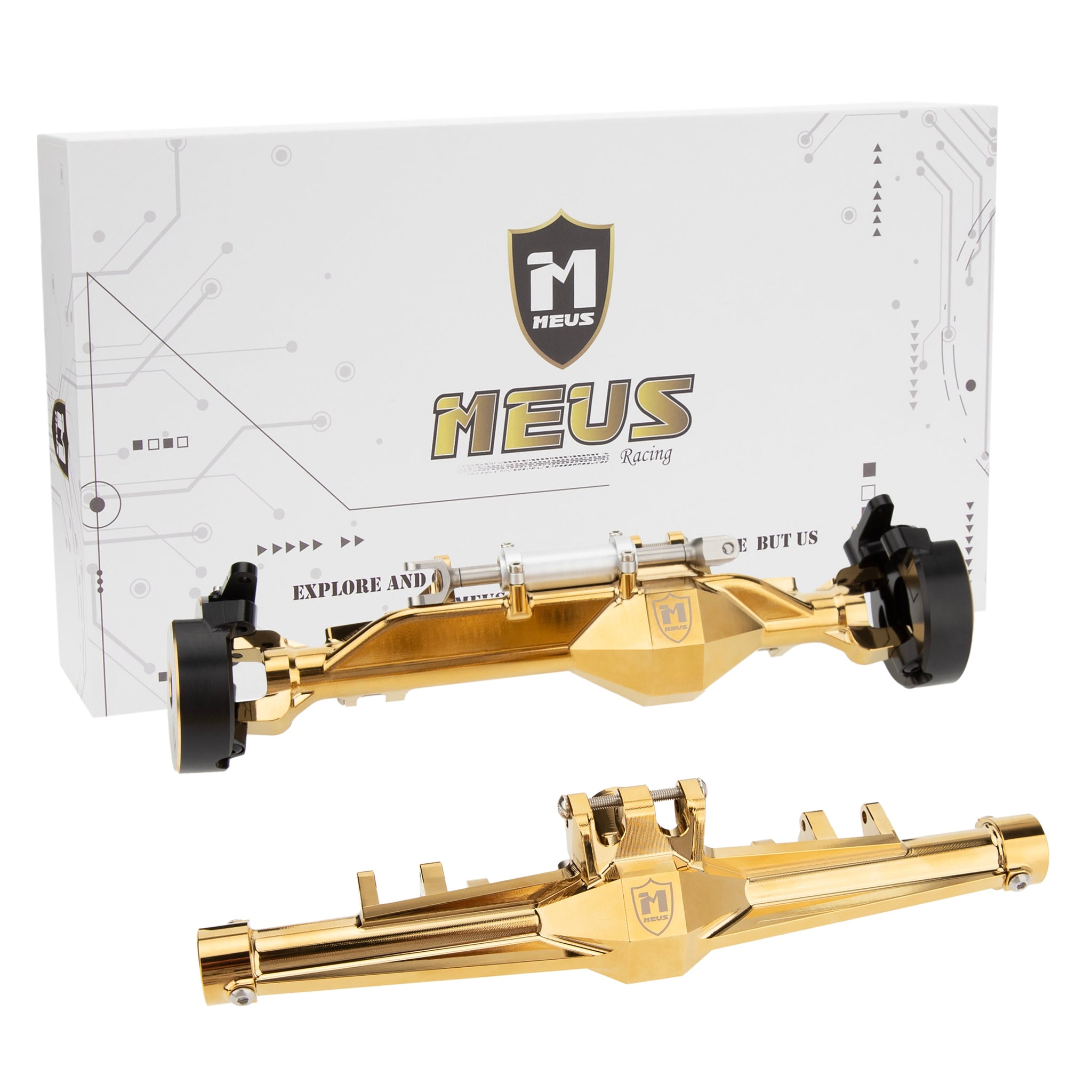

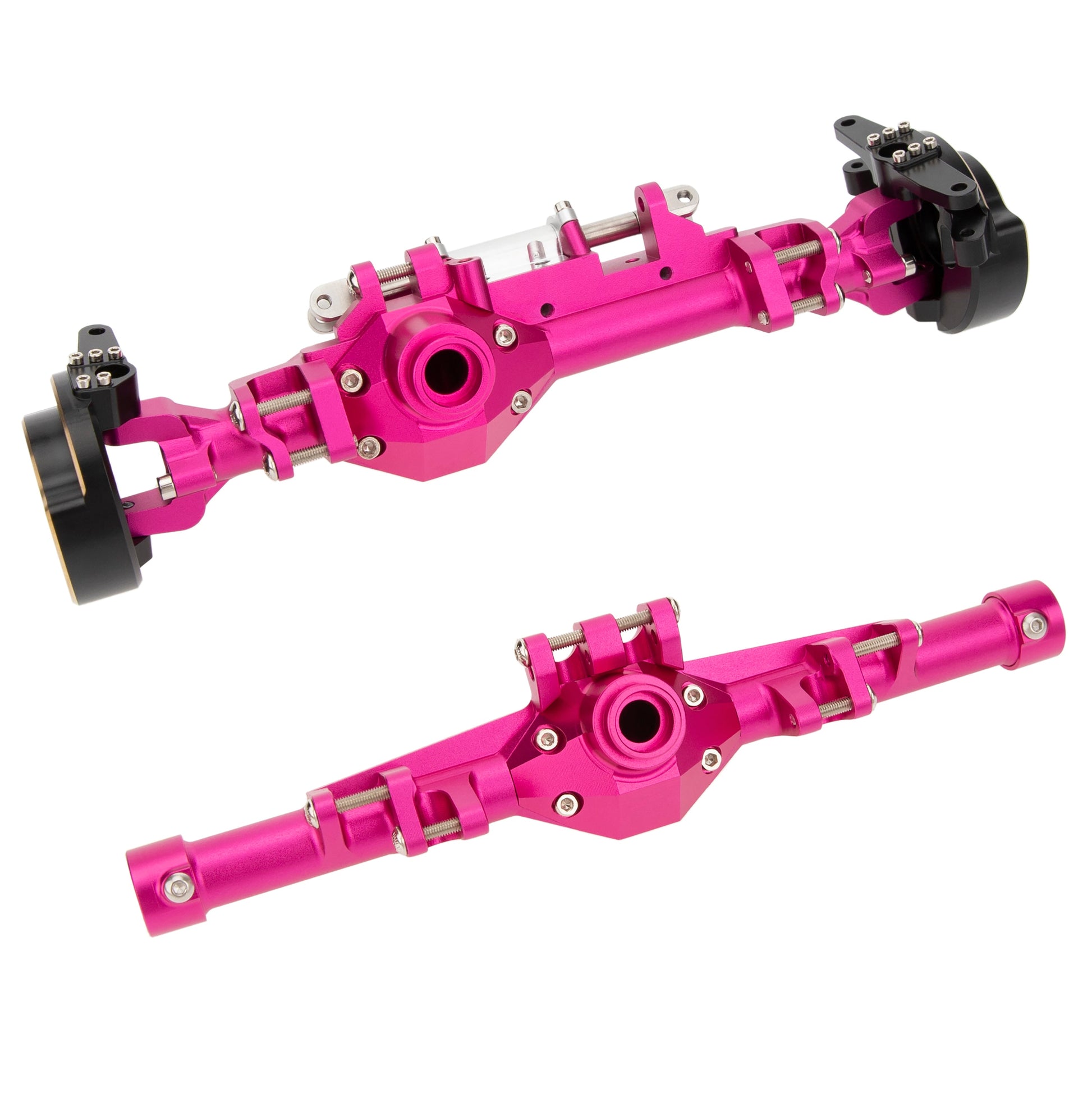

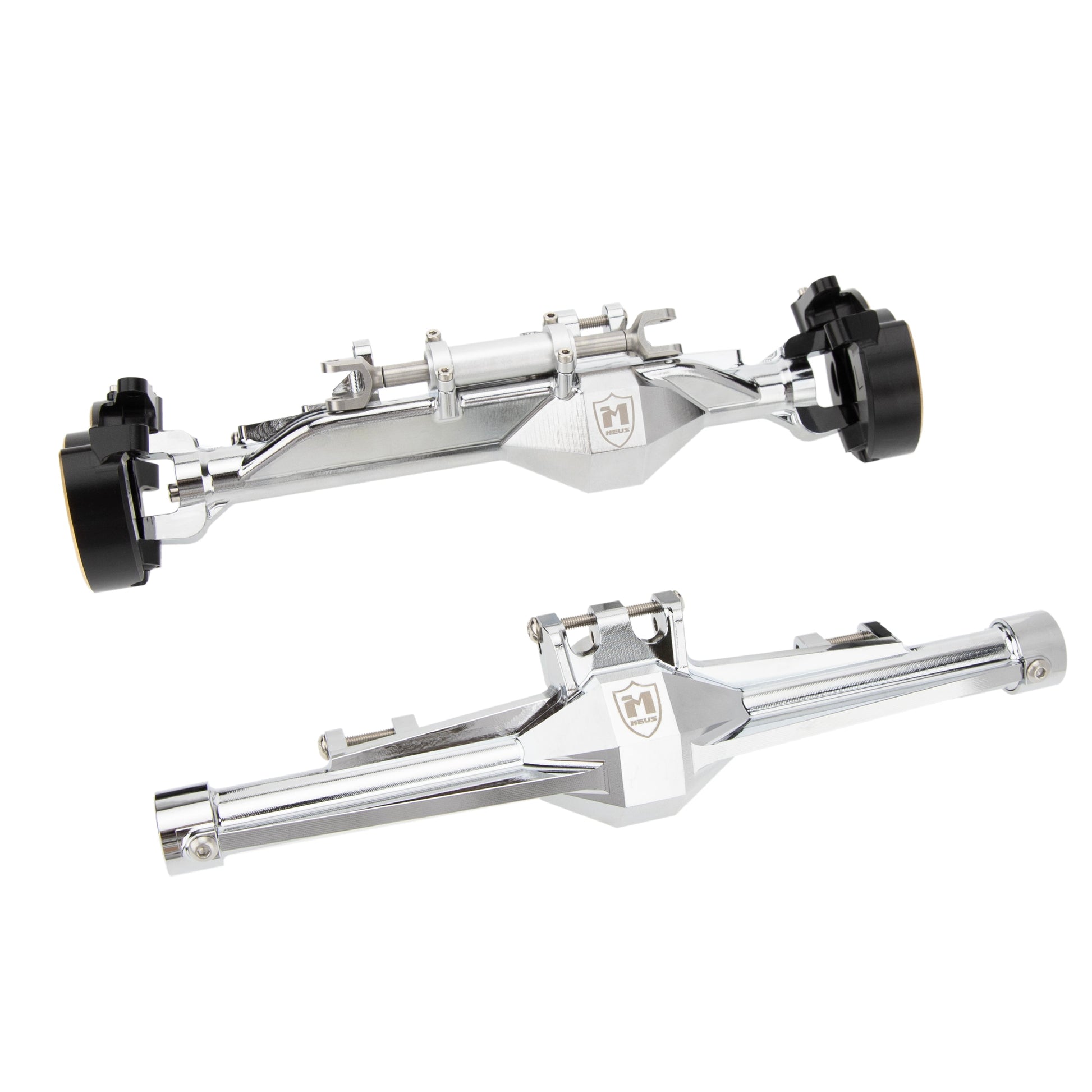

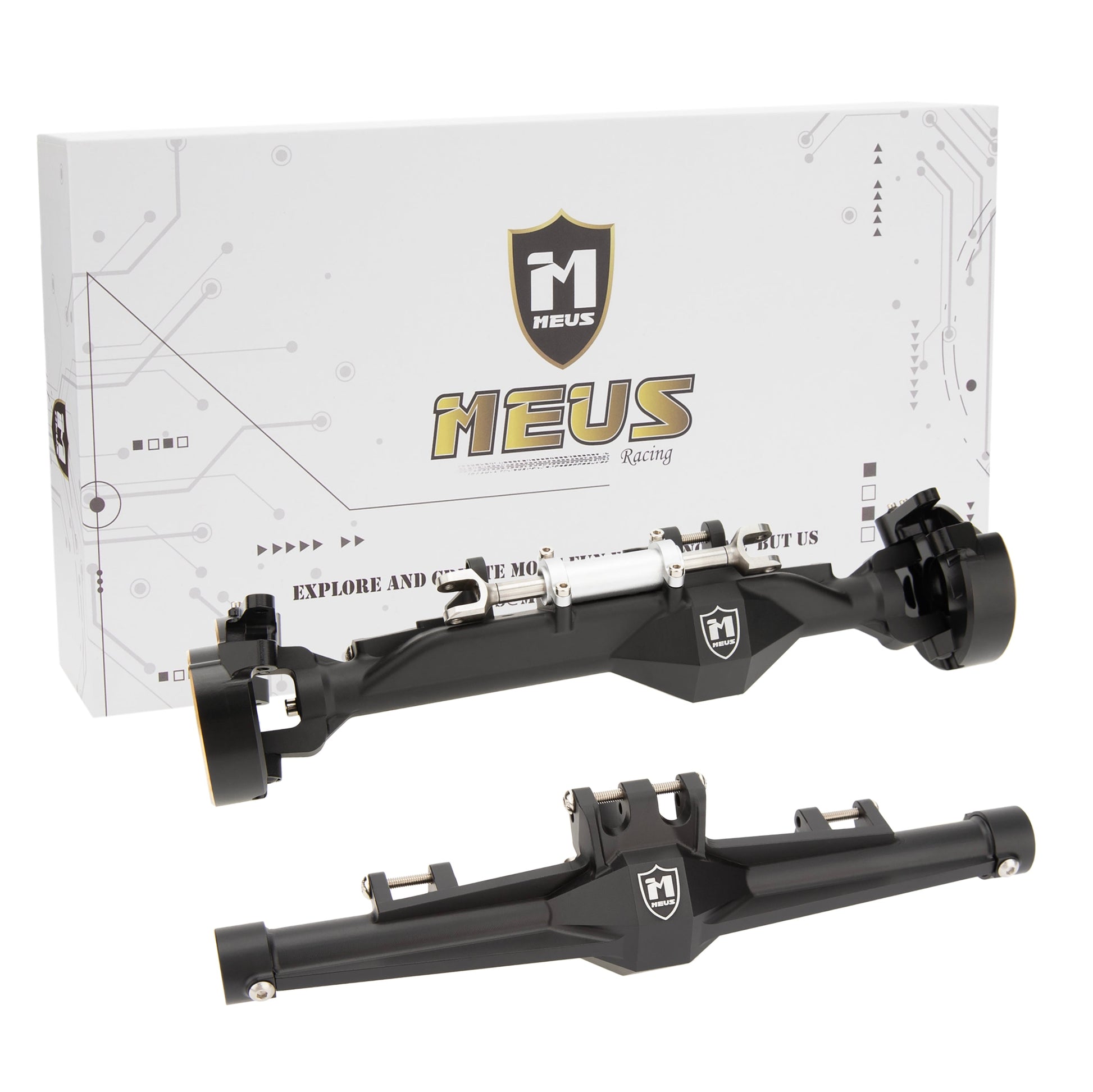

MEUS Racing Metal H10 Optic Front Rear Straight Axles Housings with Brass Steering knuckles & Servo Mount for 1/10 Vanquish H10 Optic

MEUS Racing Metal H10 Optic Front Rear Straight Axles Housings with Brass Steering knuckles and Brass Servo Mount for 1/10 Vanquish H10 Optic RC Crawlers.

Key Features:

• 1. The H10 Optic axle is crafted from high-quality Aluminum 6061; the axle housing guarantees durability and strength.

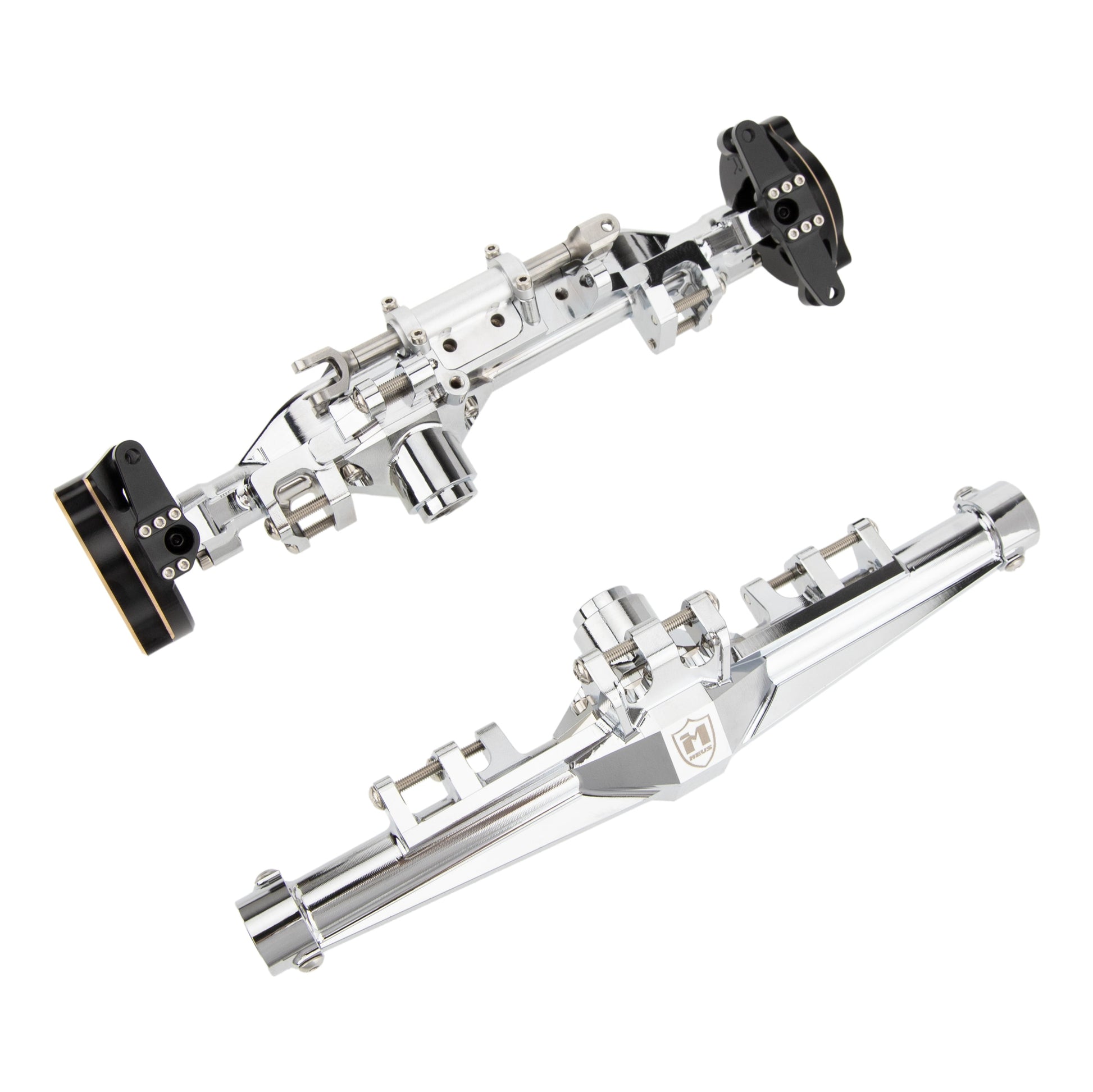

• 2. The silver and gold axle housing surfaces are chrome-plated; the black, silver white, and pink axle housings are anodized to improve corrosion resistance, enhance wear resistance, extend service life, and improve appearance.

• 3. Designed for Vanquish H10 Optic, this metal axle housing optimizes performance, providing improved stability and reliability.

• 4. The rugged construction ensures longevity, built to withstand the rigors of RC off-road activities.

• 5. Enjoy a hassle-free upgrade experience with the user-friendly design.


Specifications:

• Axle housing Material: Aluminum alloy

• Steering knuckle material: Brass

• Servo mount material: Brass

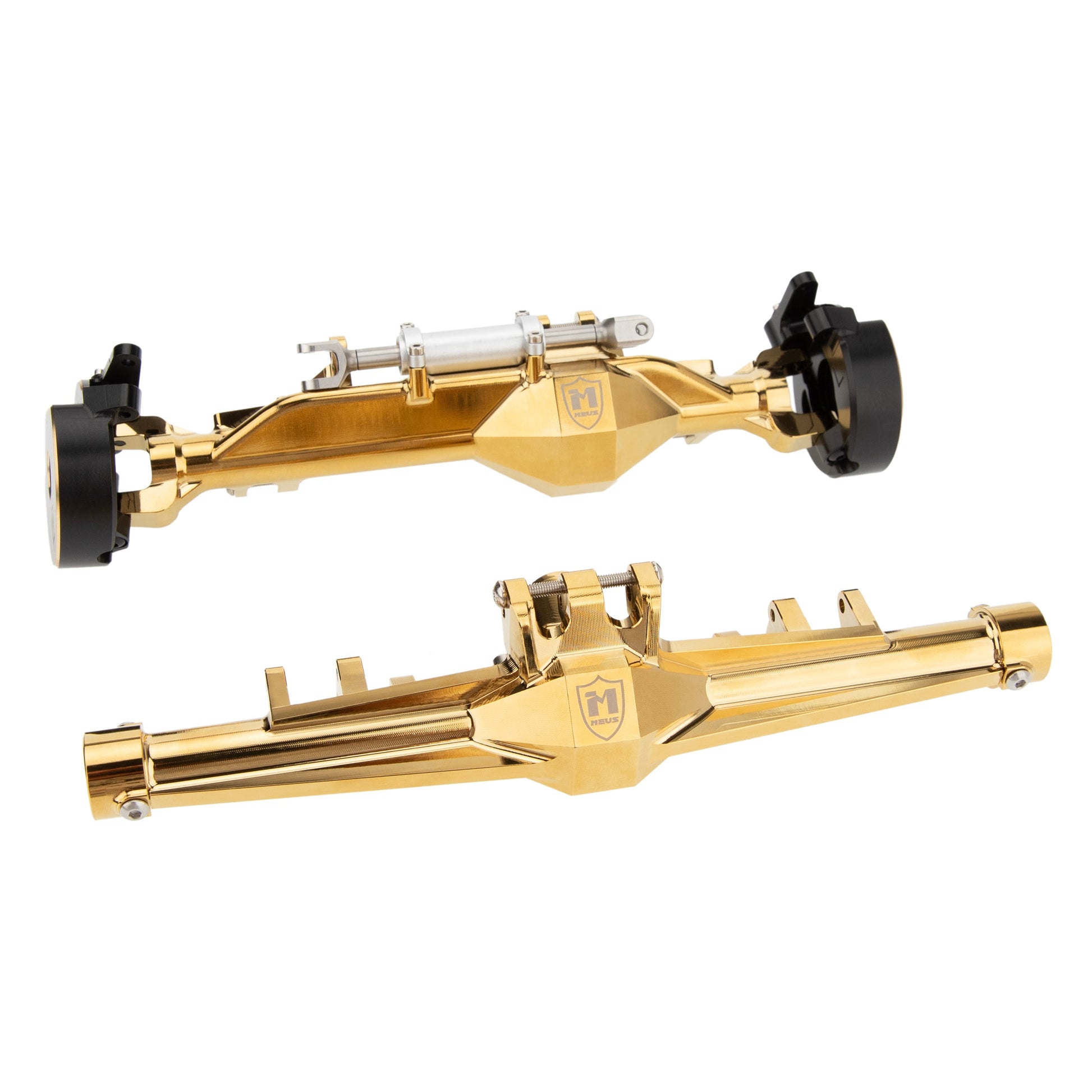

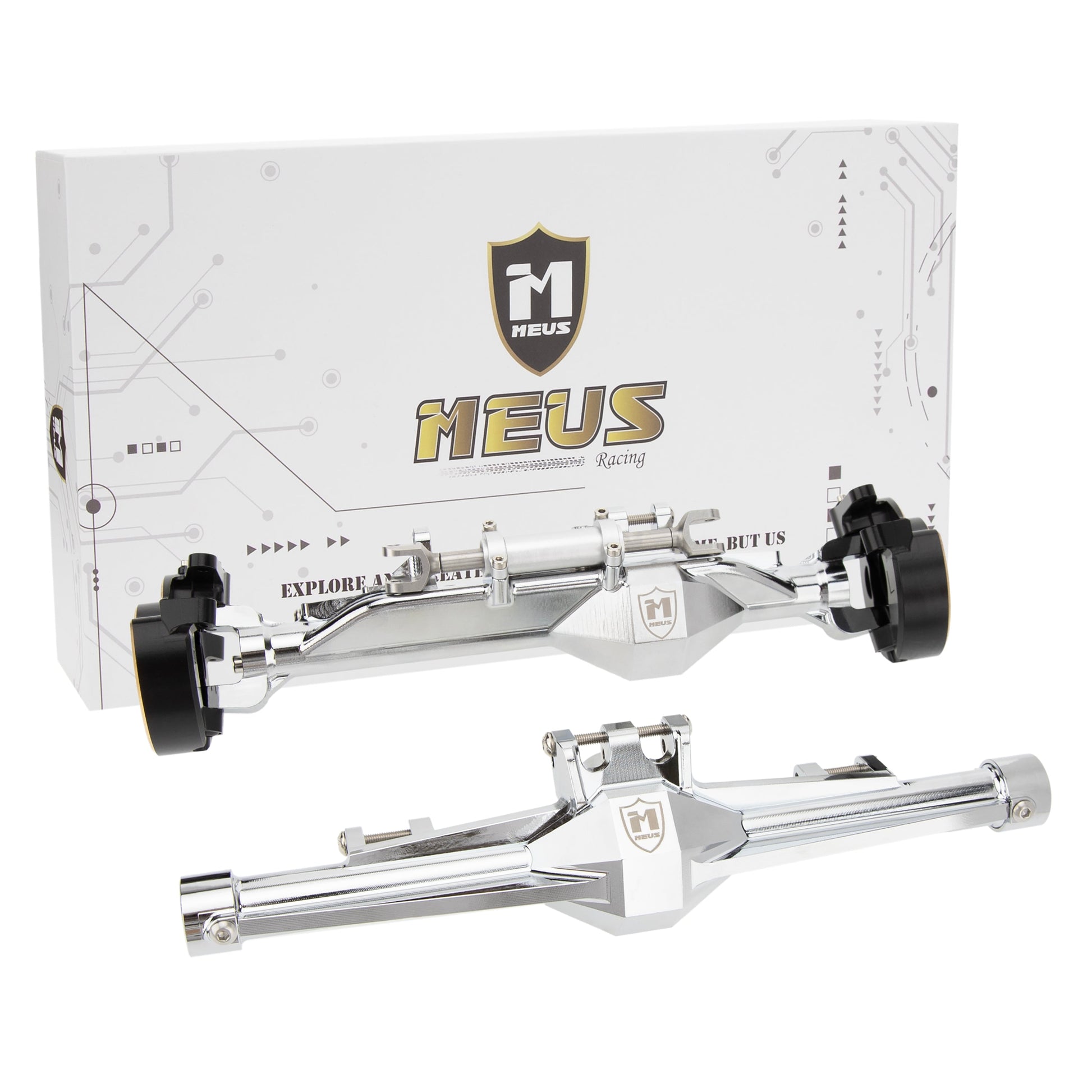

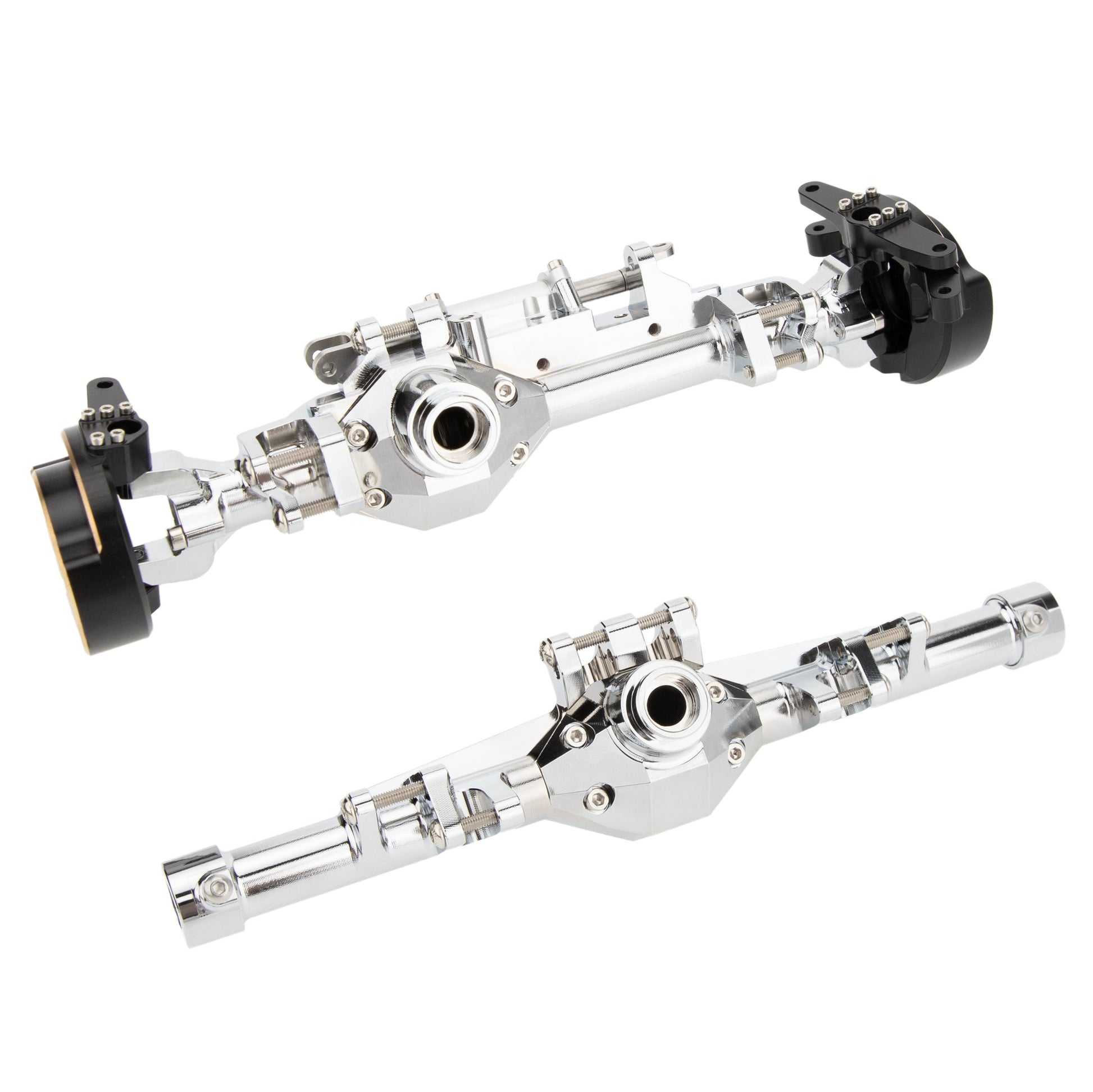

• Silver and gold axle crafts: surface chrome-plated

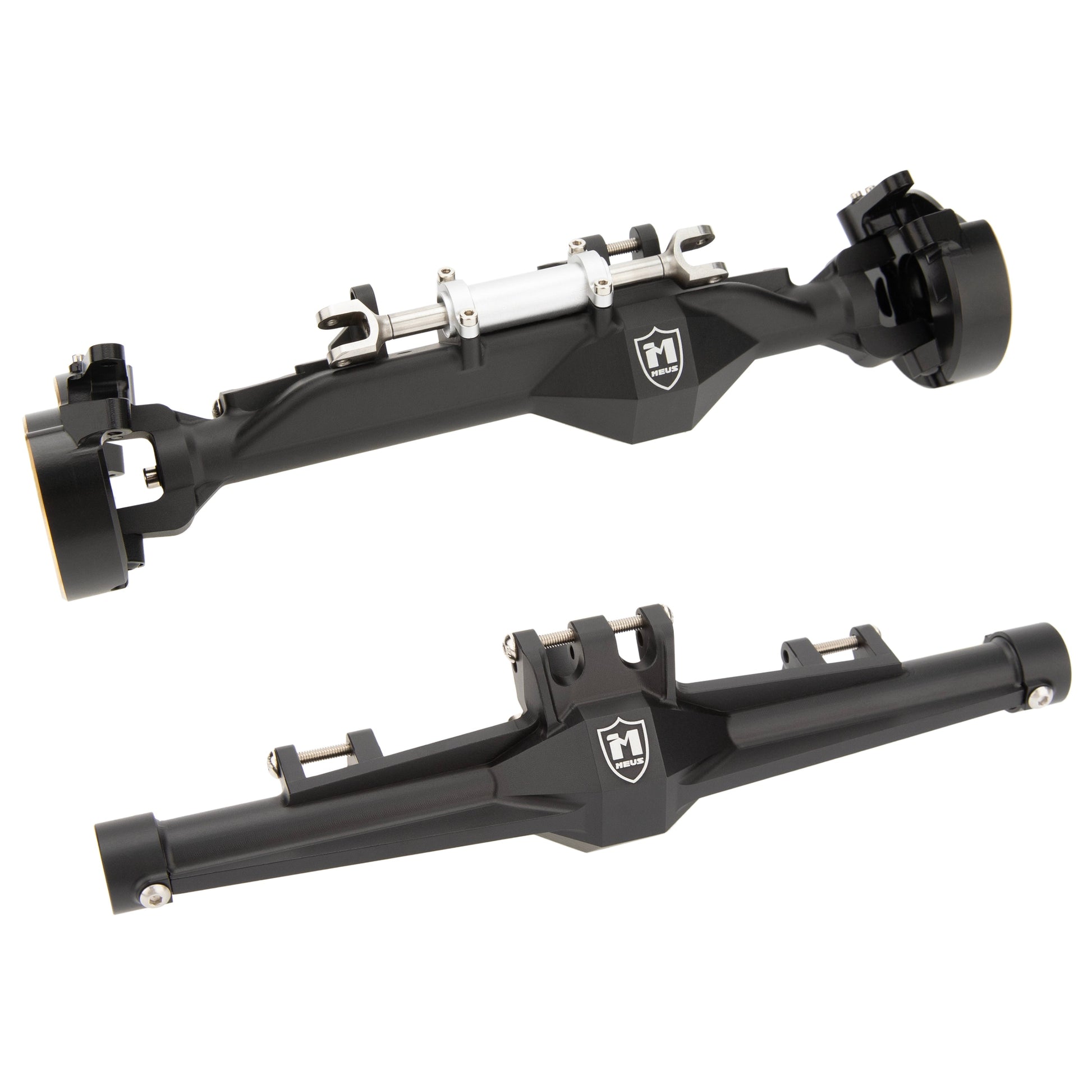

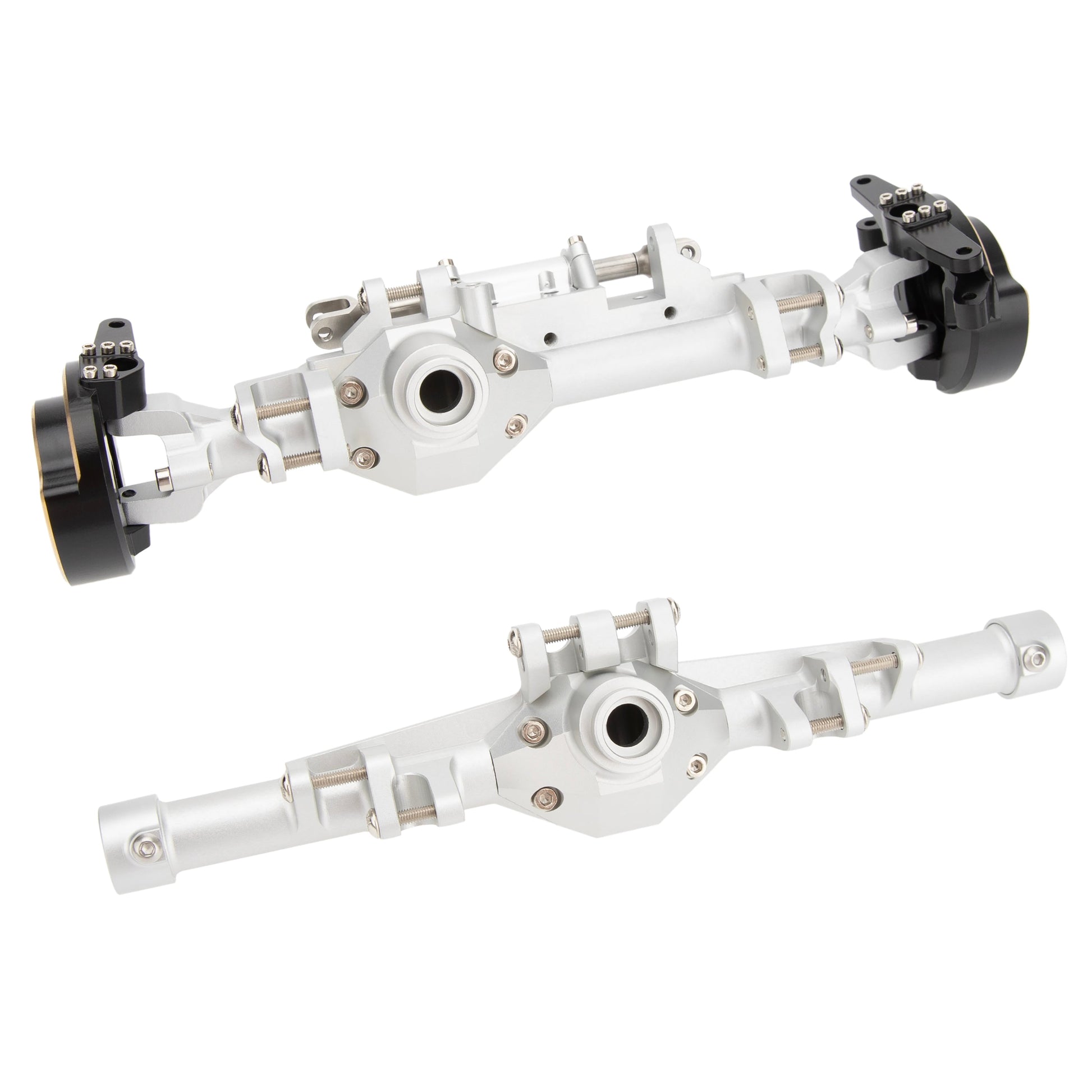

• Black, silver white, and pink axle crafts: surface anodized
• Silver and gold front axle housing weight: 395g
• Silver and gold rear axle housing weight: 118.7g
• Black, silver white, and pink front axle housing weight: 392g
• Black, silver white, and pink rear axle housing weight: 115g

• Steering link size: 72mm, 43mm
• Pivot ball inner dia: 3mm
• Round head screw size: 3*10mm, 3*12mm, 3*14mm, 3*16mm
• Gasket size: 8*13*1mm, 8*13*0.2mm, 5*8*0.5mm, 5*8*0.3mm, 6*8*0.5mm, 6*8*0.3mm

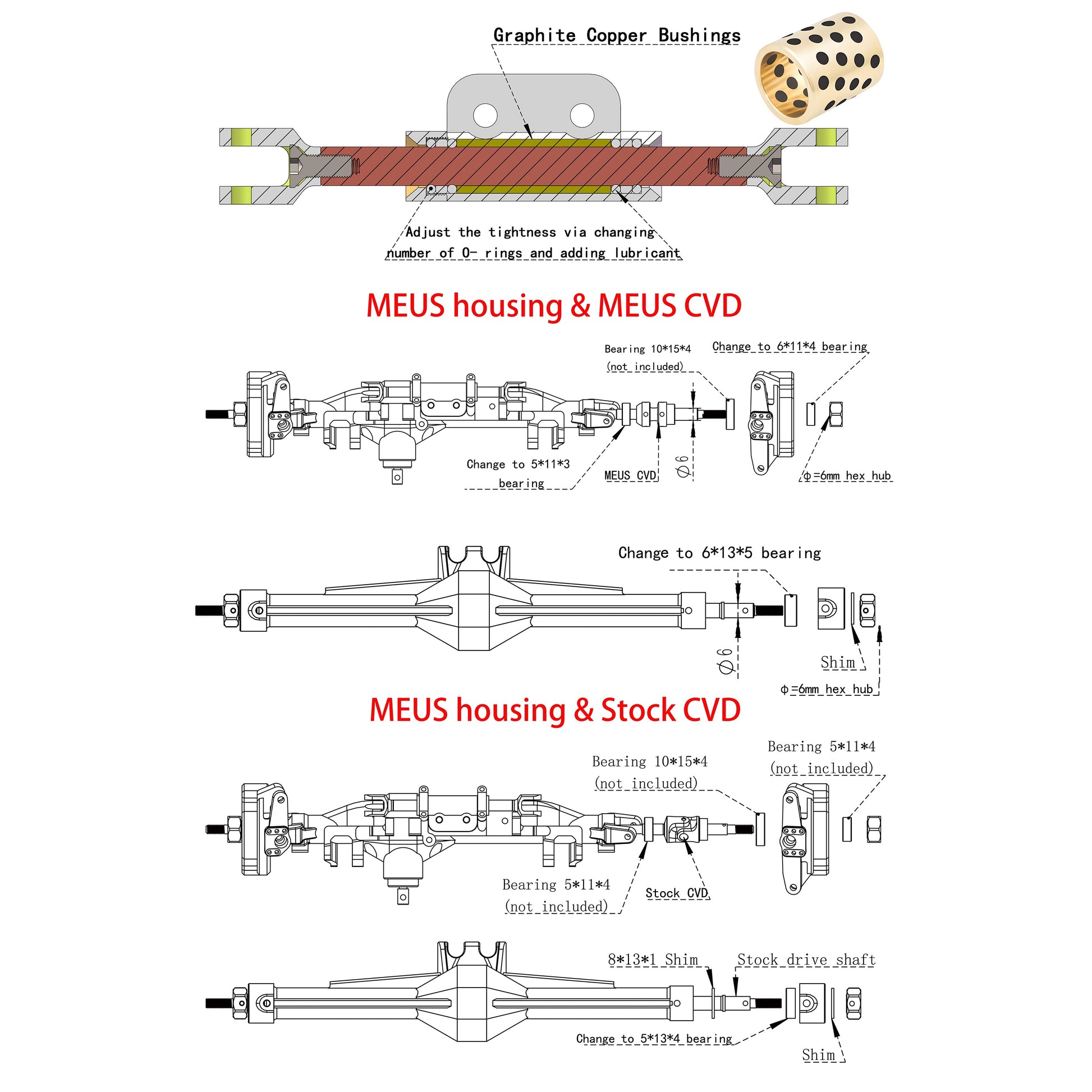

• Bearing size: 5*13*4mm, 6*13*5mm

Note: This front and rear axle package doesn't include the CVD and Diff gears

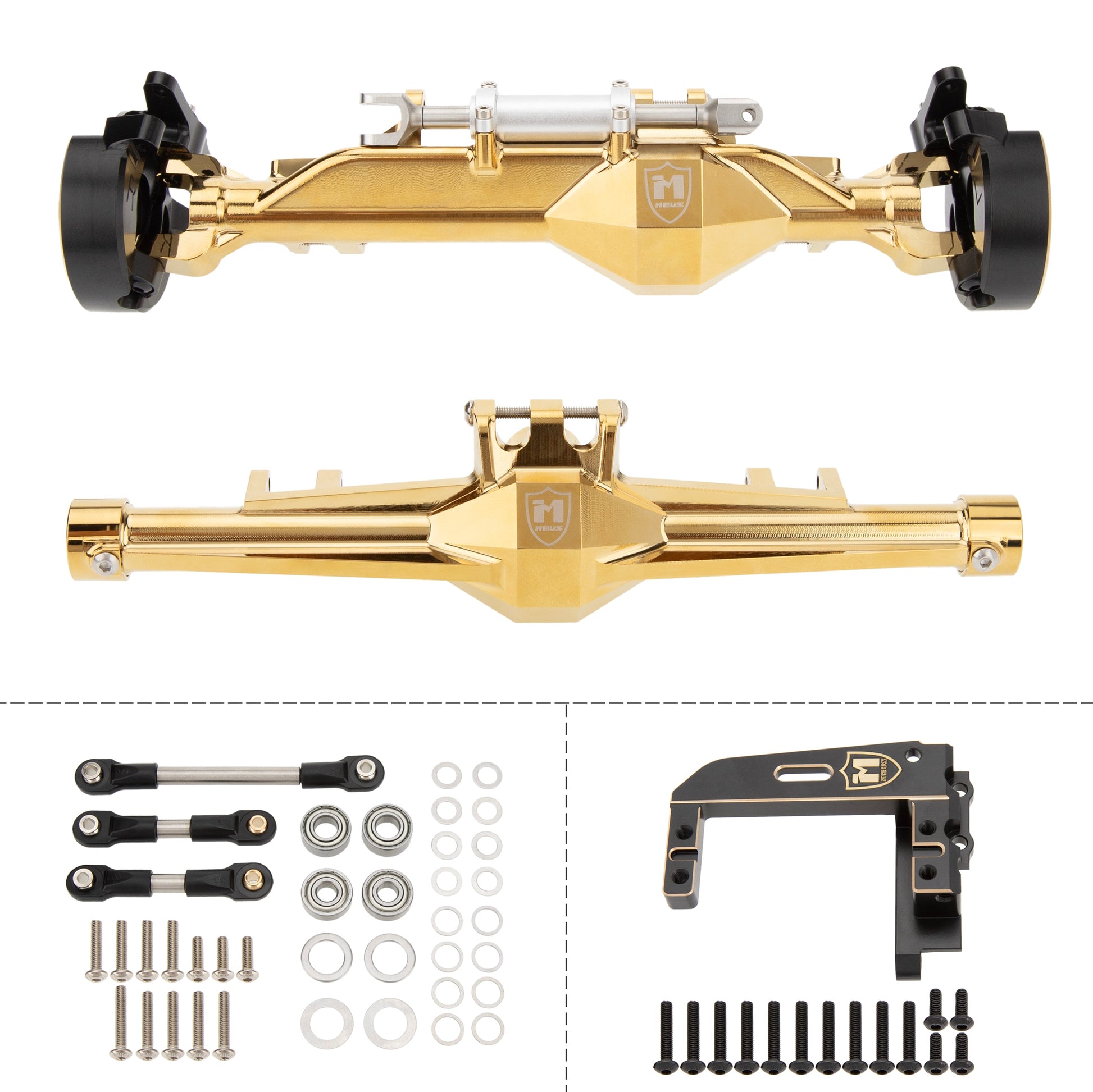

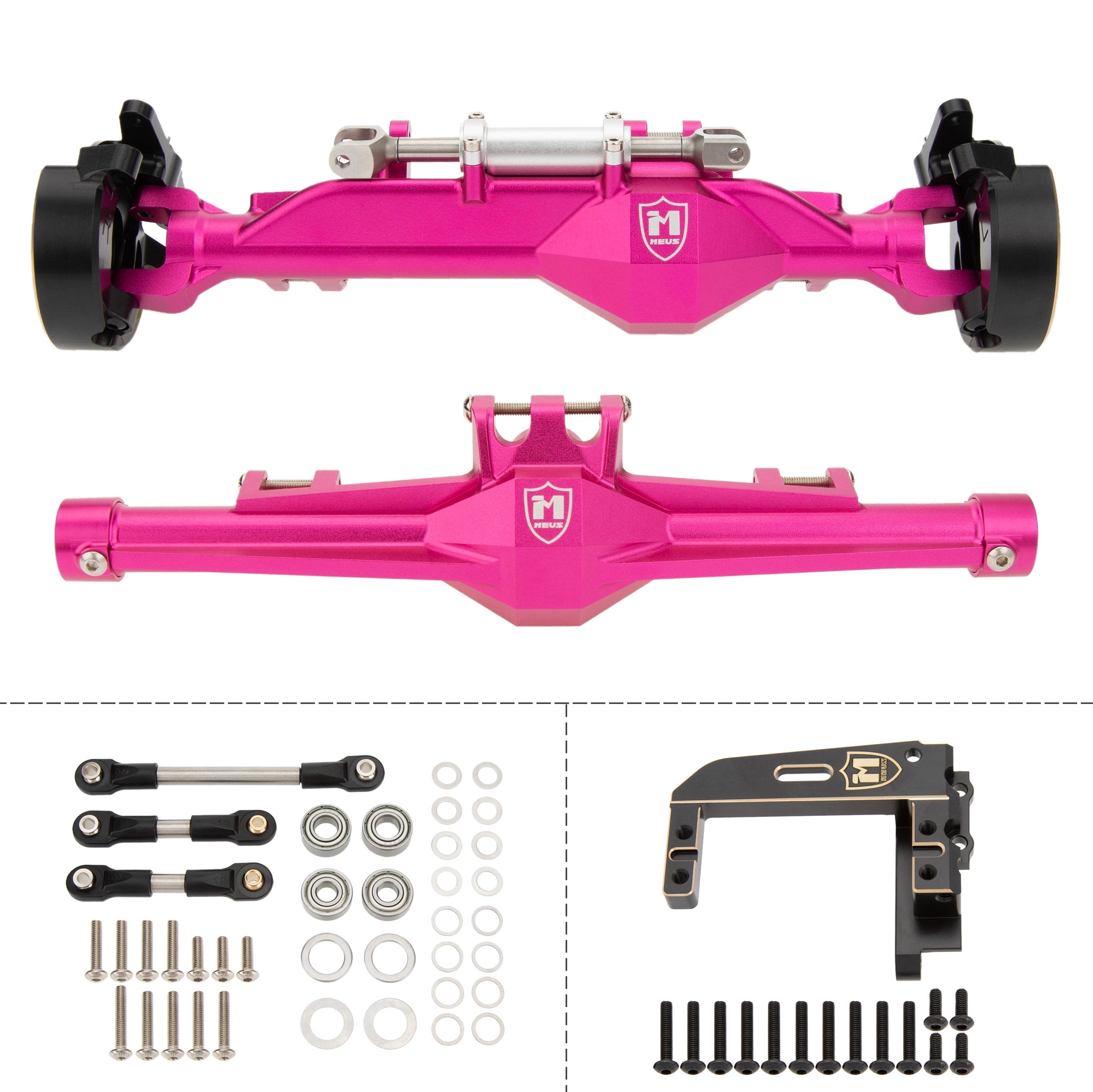

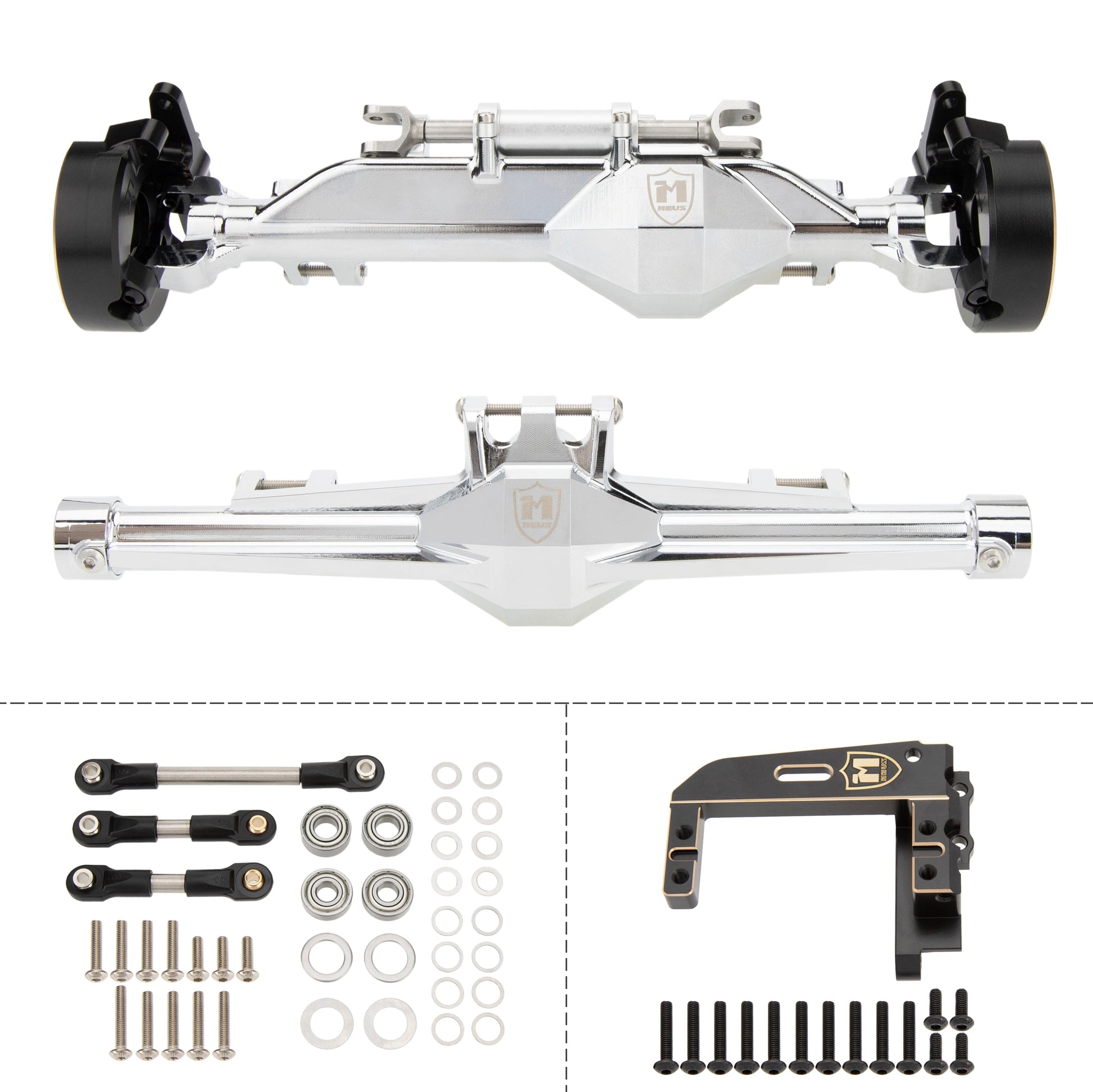

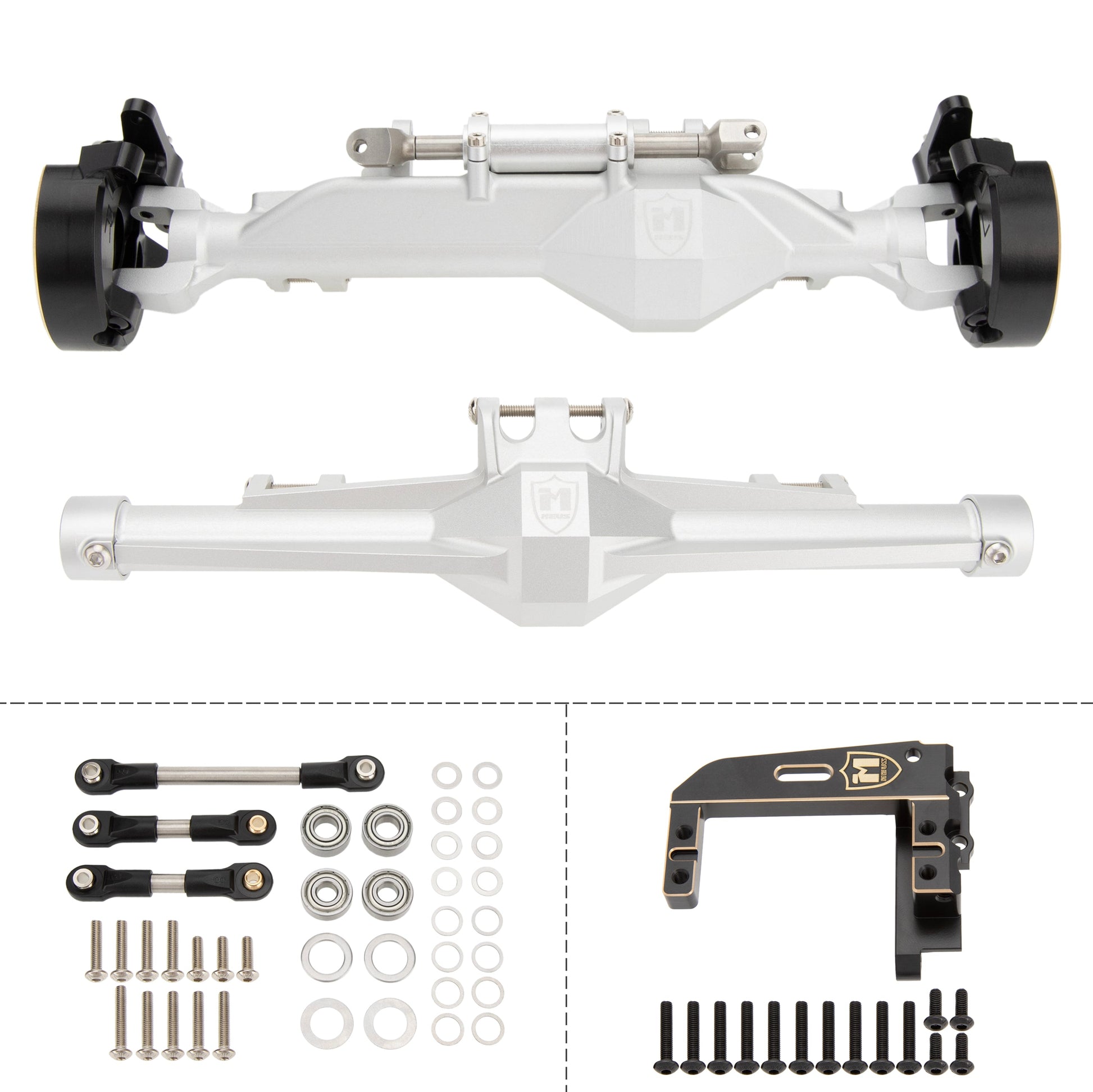

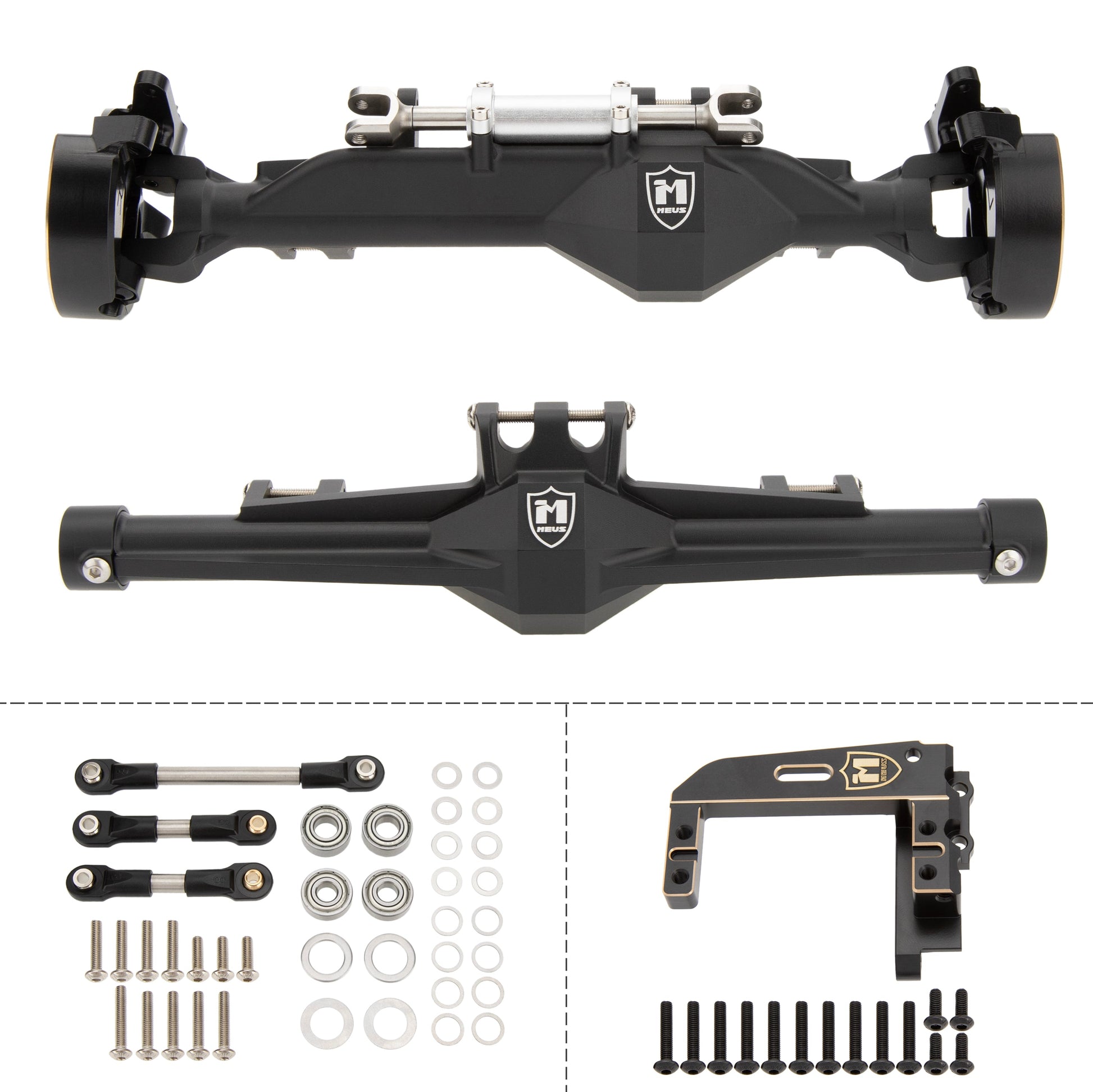

Package List:

• 1 × Front axle housing
• 1 × Rear axle housing
• 1 × Left and right steering knuckles
• 1 × Front and rear diff covers
• 1 × Brass servo mount & screws
• 3 × Steering Links
• 2 × 6*13*5mm bearings
• 2 × 5*13*4mm bearings
• 2 × 8*13*1mm gaskets
• 2 × 8*13*0.2mm gaskets
• 4 × 5*8*0.5mm gaskets
• 4 × 5*8*0.3mm gaskets

• 4 × 6*8*0.5mm gaskets
• 4 × 6*8*0.3mm gaskets
• 3 × 3*10mm Screws
• 4 × 3*12mm Screws
• 3 × 3*14mm Screws
• 1 × 3*16mm Screw
