MEUS Racing Metal High Clearance Chassis Links Set for 1/18 TRX4M High Trail K10 F150

MEUS Racing Metal High Clearance Chassis Links Set for 1/18 TRX4M High Trail K10 F150.

Compatible with:

• 1/18 TRX4M High Trail K10
• 1/18 TRX4M High Trail F150
• 1/18 TRX4MT K10
• 1/18 TRX4MT F150
• MEUS Racing MB18

Brass Links Key Features:

• 1. High strength: it can withstand the vibration and impact during driving, is not easy to deform and break, and has good wear resistance.

• 2. Good stability: Brass has good rigidity, can provide stable support for the chassis, and ensure the stability of the chassis structure during driving.

• 3. Corrosion resistance: Brass is corrosion-resistant, does not easily rust, and is suitable for use in various occasions.

• 4. Good heat dissipation: Brass exhibits excellent heat dissipation performance, enabling the chassis to dissipate heat effectively and reduce failures caused by overheating.

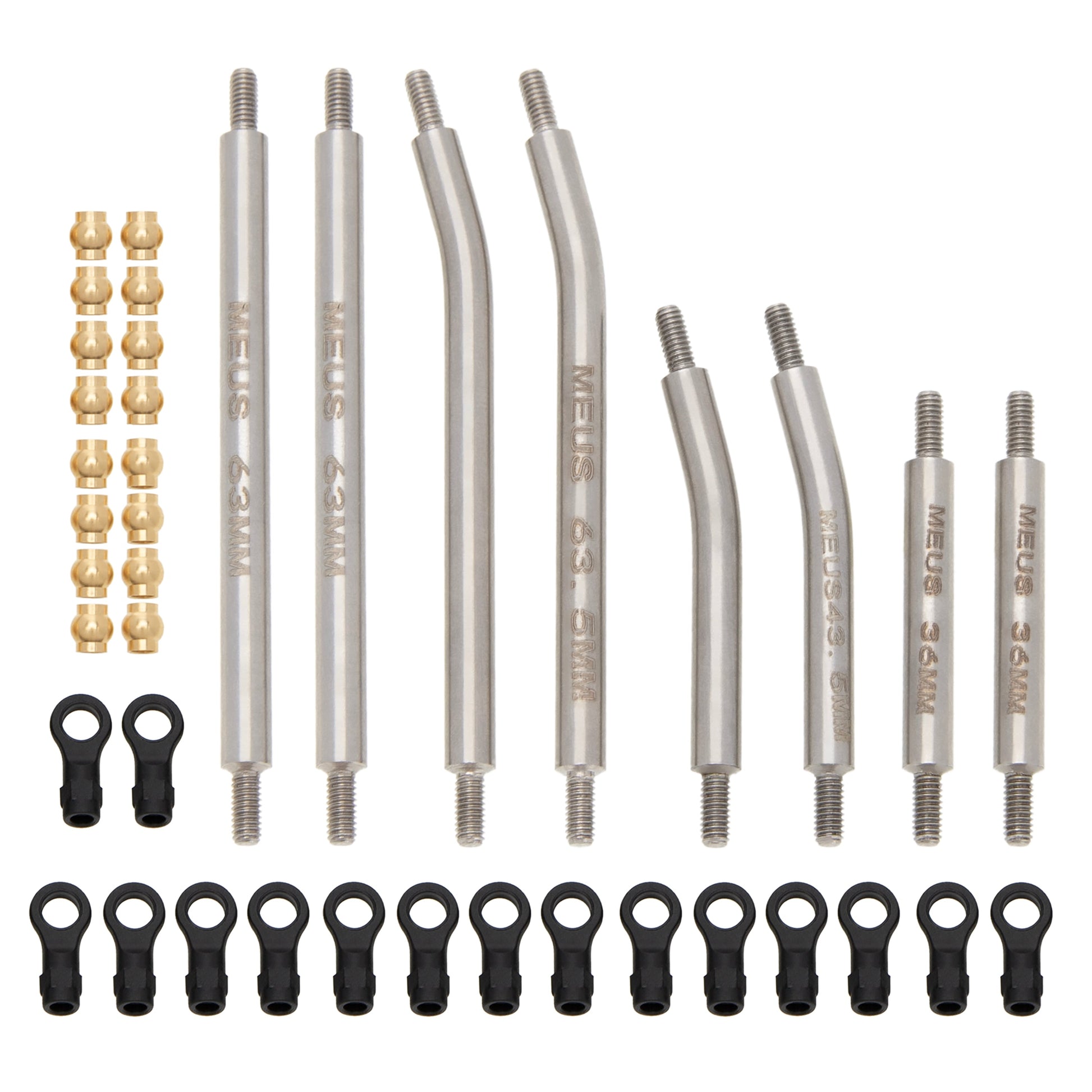

Stainless Steel Links Key Features:

• 1. Super Strength: Stainless steel has high hardness, is not easily deformed, and can withstand violent collision and high-intensity impact. Suitable for off-road, climbing, and other high-intensity scenes.

• 2. Strong corrosion resistance: Even if used in a humid, rainy, or corrosive environment, it is not easy to rust.

• 3. High and low temperature resistance: Stainless steel will not lose strength or deform due to temperature changes, suitable for use in complex weather.

• 4. Wear resistant: Stainless steel has high wear resistance and is not easy to wear even after long-term use.

• 5. Strong fatigue resistance: stainless steel is not easy to crack, can maintain structural strength, suitable for cars with long-term, high-intensity control.

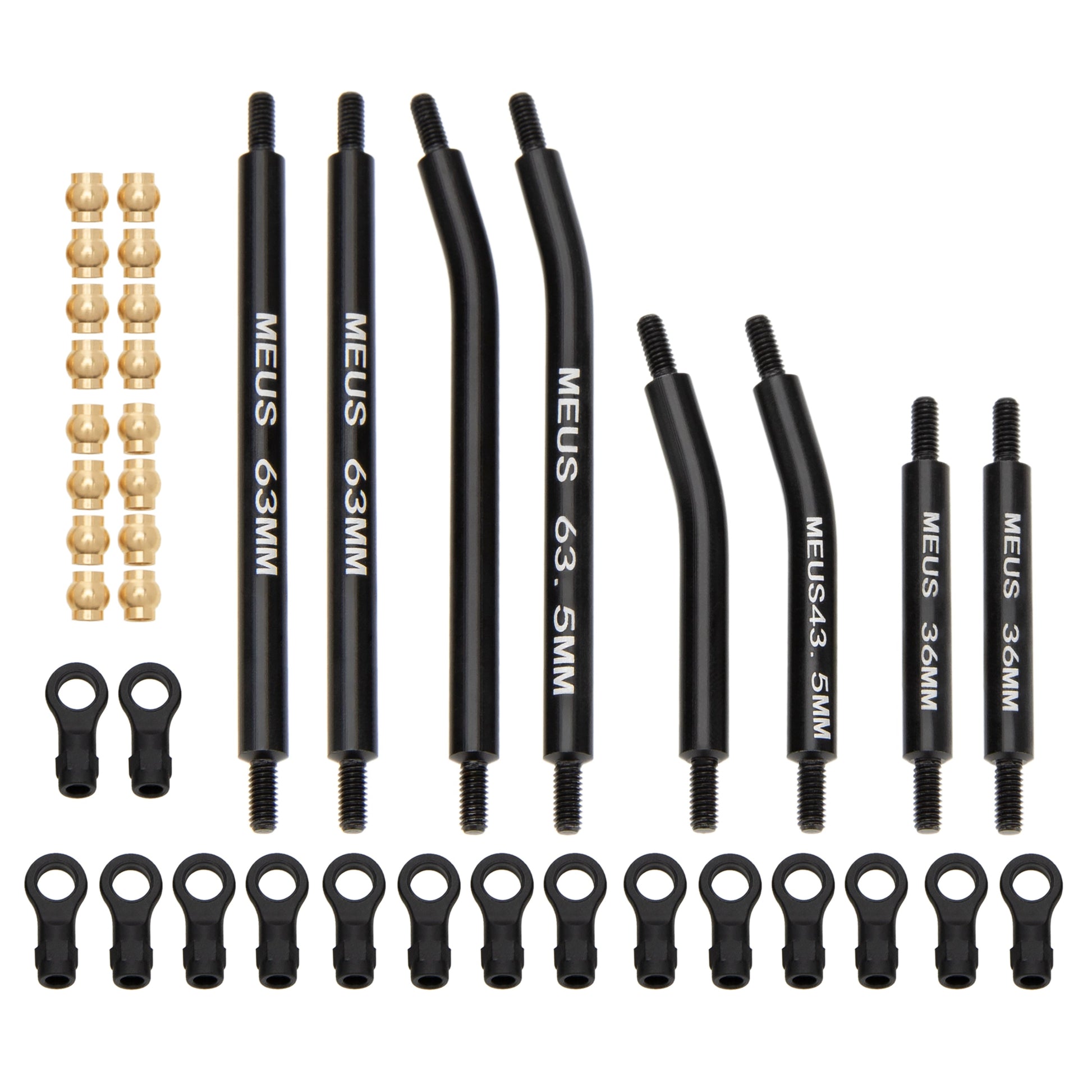

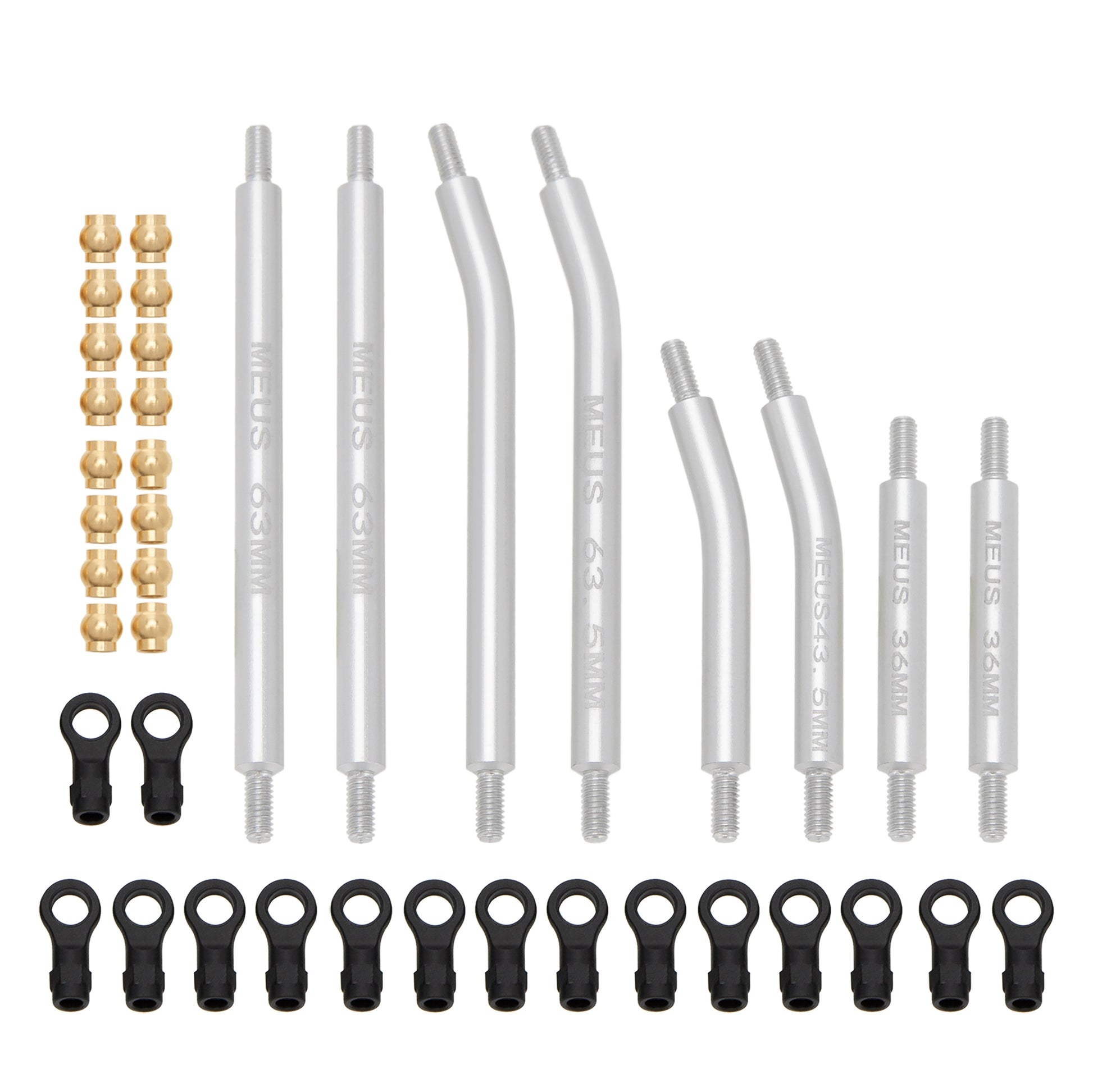

Aluminum Alloy links Key Features:

• 1. Lightweight: Aluminum alloy has low density, which can reduce the weight of the cars and improve the flexibility and acceleration of the cars, suitable for competitive activities.

• 2. Higher Strength: Aluminum alloy has high strength and a certain toughness, and is not easy to break.

• 3. Corrosion resistance: The surface of aluminum alloy adopts electroplating process, which is not easy to corrode in humid environment.

Specifications:

• Brass links weight: 44g
• Stainless steel links weight: 41g
• Aluminum alloy links weight: 18.6g
• Link end thread size: M2.4
• Brass pivot ball inner dia: 2.45mm

• Brass pivot ball outer dia: 4.57mm

• Brass pivot ball length: 5mm

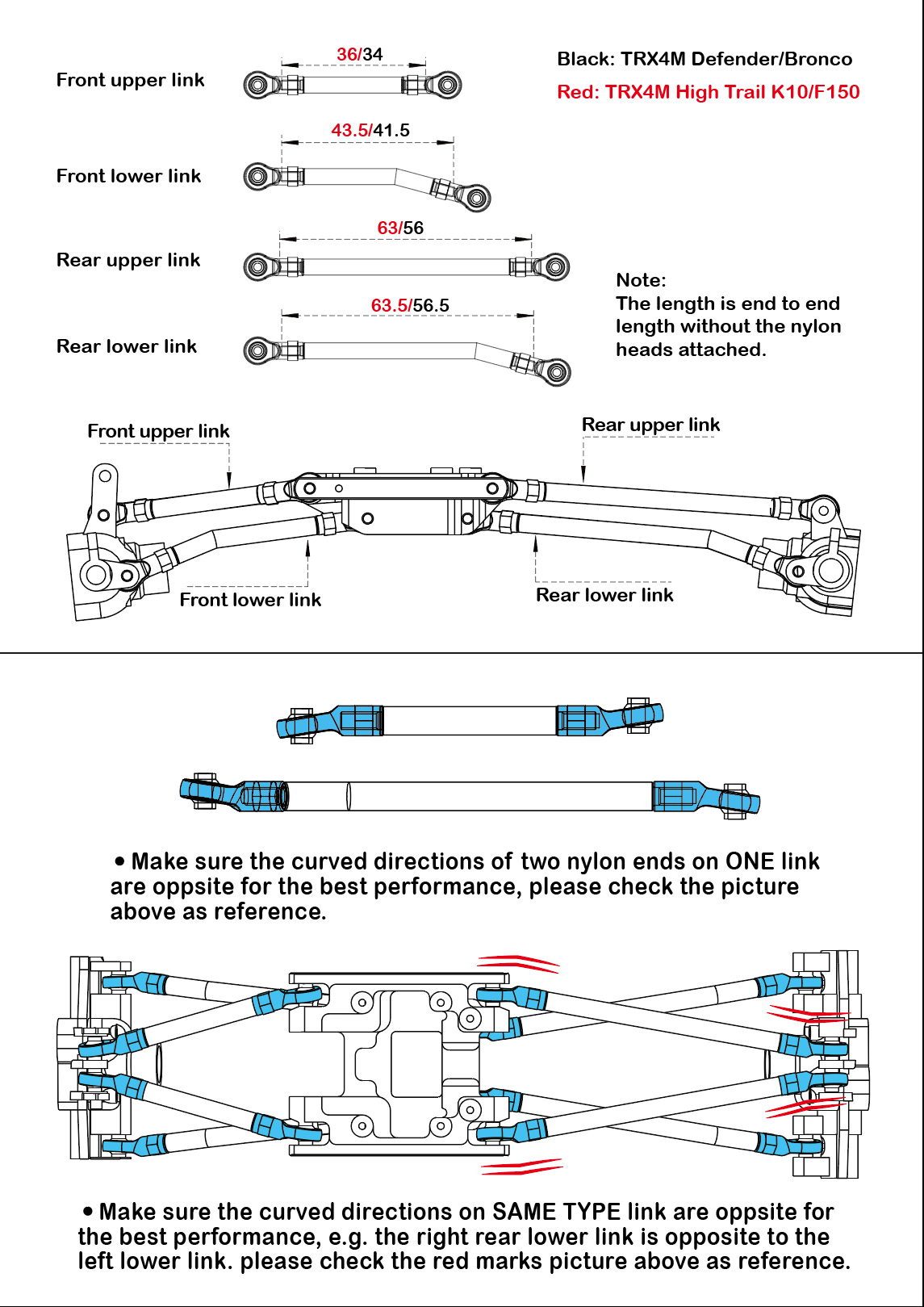

• Front upper link size: 36mm (not include nylon rod ends)
• Front lower link size: 43.5mm (not include nylon rod ends)
• Rear upper link size: 63mm (not include nylon rod ends)
• Rear lower link size: 63.5mm (not include nylon rod ends)

Package List:

• 2 × Front upper links
• 2 × Front lower links
• 2 × Rear upper links
• 2 × Rear lower links
