MEUS Racing RC LCG Carbon Fiber Chassis Frame DIY Kit Gearbox Kit OD21% for 1/10 Axial SCX10 I II Capra Upgrade Parts

MEUS Racing RC LCG Chassis Frame Kit DIY Carbon Fiber Frame Rails Gearbox Kit OD21% for 1/10 Axial SCX10, SCX10 II, Capra 1.9 UTB Upgrade Parts.

Key Features:

• 1. Material composition: kit width carbon fiber; POM; aluminum alloy; steel and other materials. In the lightweight and practicality of a combination of both, it is an excellent 1/10 remote tracked/cheater device DIY.

• 2. Transmission: The included transmission provides 21% overdrive or isokinetic output as options, main spur gear of the transmission is made of POM material, allowing smoother rotation and low noise.

• 3. Features front transmission placement to move the center of gravity forward, the skid plate and rock slider are made of tough POM material for great protection for your RC crawler while conquering different terrains.

• 4. Main frame: decorated with gold powder, more recognizable. The frame gearbox supports left and right mirror image adjustment and is equipped with a 360-degree servo winch bracket and conduit.

• 5. This LCG chassis supports AMS(Axle-Mounted Servo) and CMS(Chassis-Mounted Servo) axle servo program, Adjustable body mounting bracket, etc. More play waiting for you to discover.

• 6. The kit includes a gearbox and frame kit, just add an axle, linkage, and electronics to complete the build.

• 7. This carbon fiber LCG chassis kit suits Axial SCX10, SCX10 II, Capra 1.9 UTB and DIY Builds.

Specifications:

• Chassis frame material: Carbon Fiber,
• Gearbox material: Aluminum alloy,
• Gearbox main large gear material: POM material,
• Gearbox skid plate material: POM material,
• Main Chassis frame: decorated with gold powder.

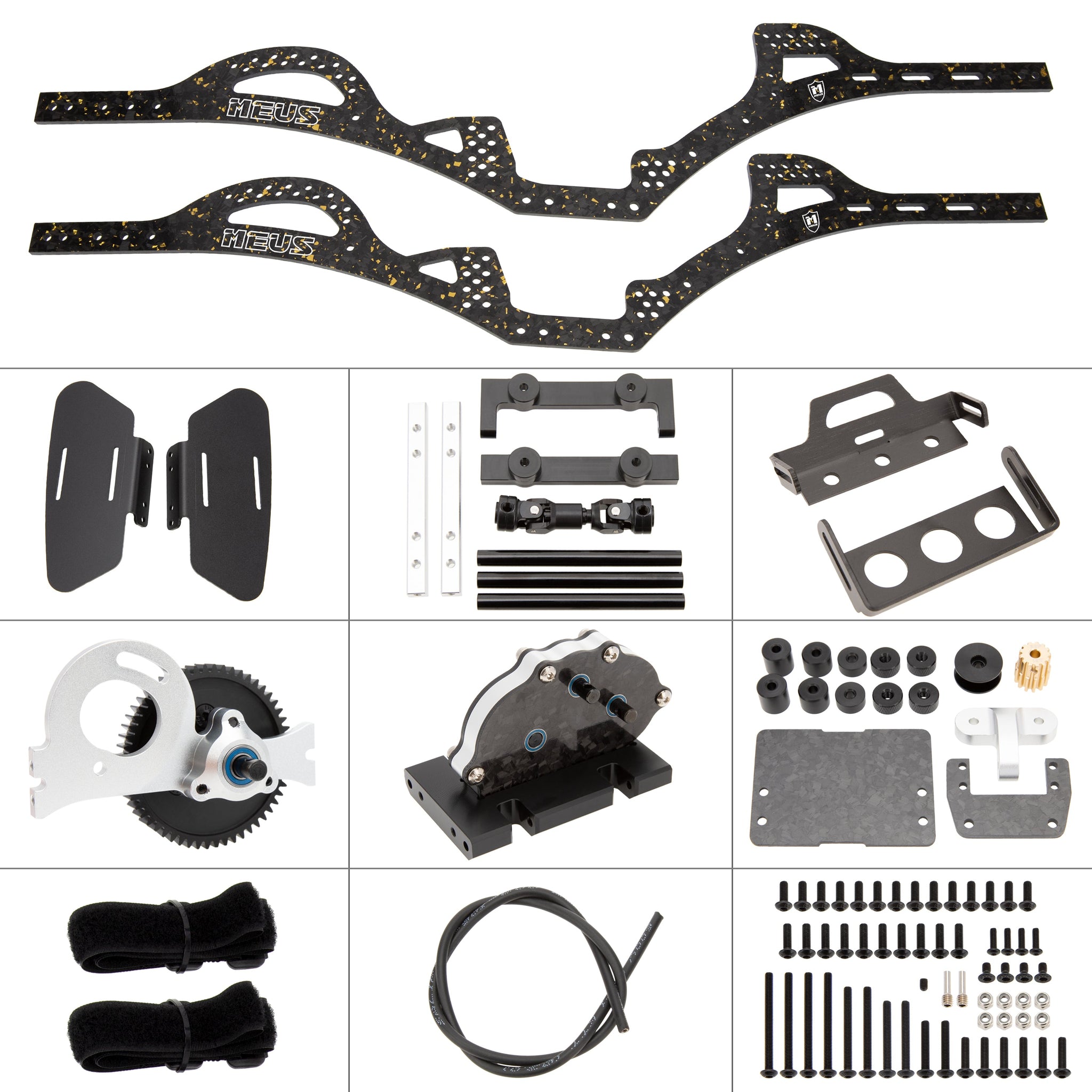

Package list:

• 2pcs ×  LCG Carbon Fiber Chassis Frames
• 1set ×  Gearbox
• 1pc × Driveshaft
• 1set × Gearbox skid plate
• 1set × accessories
