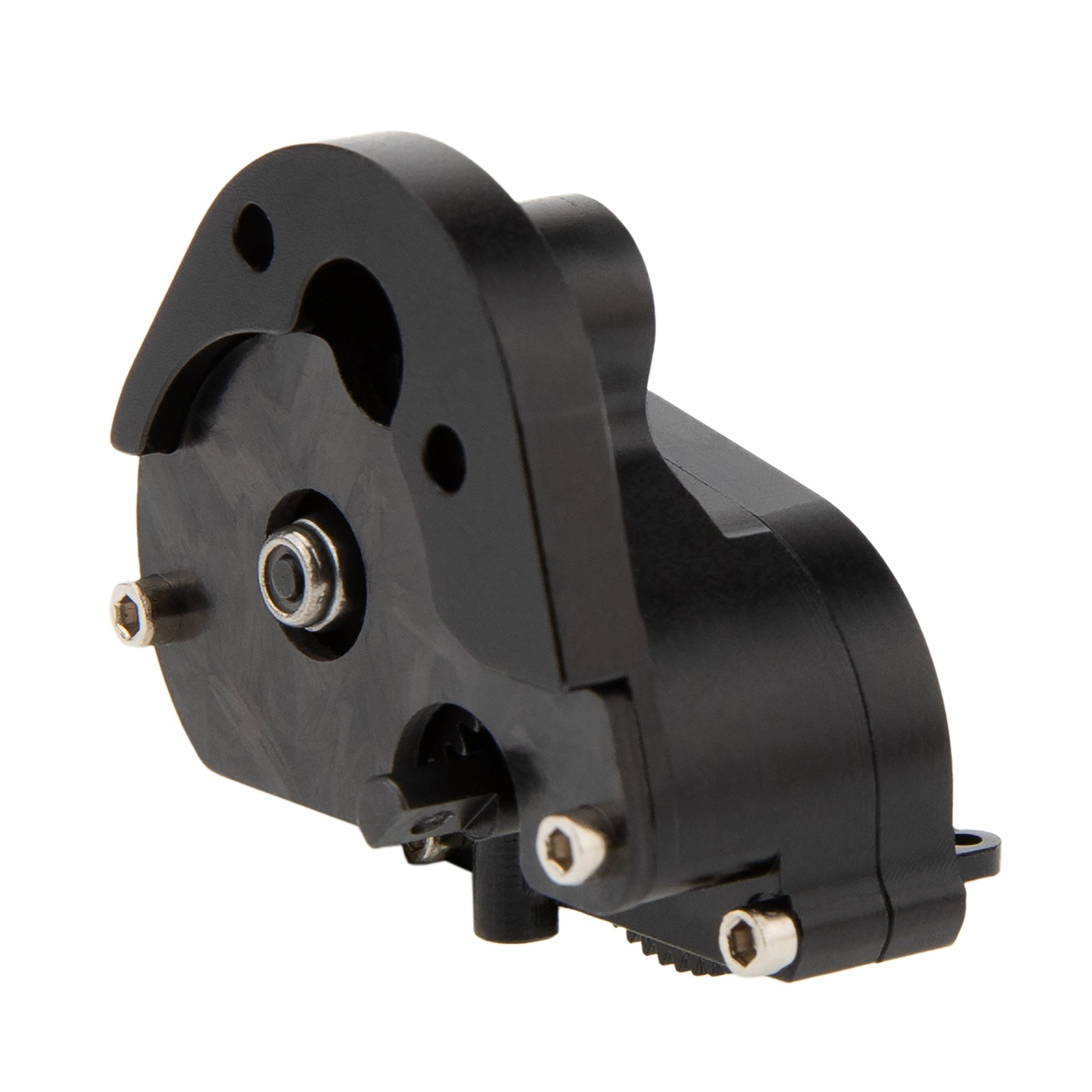

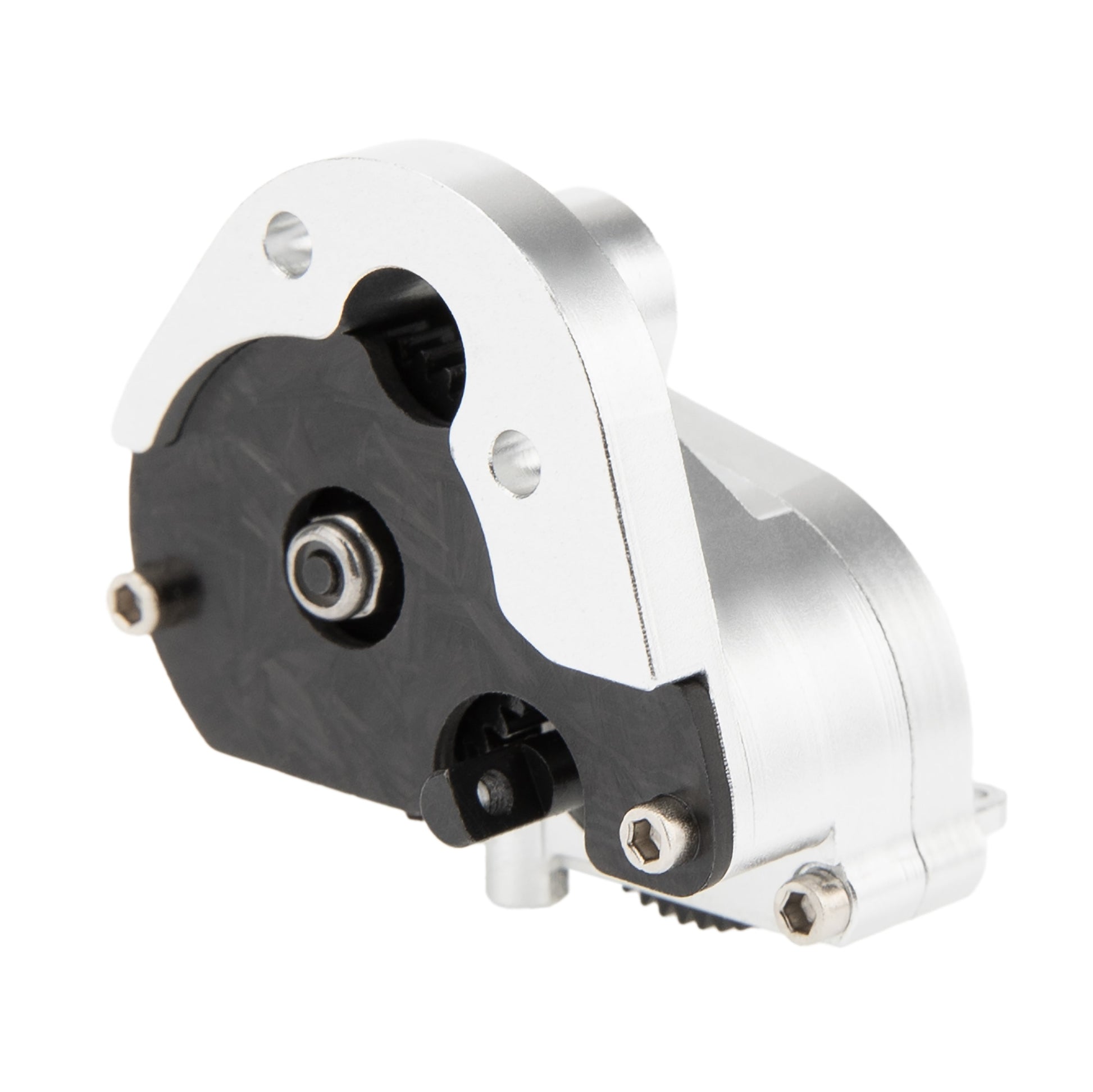

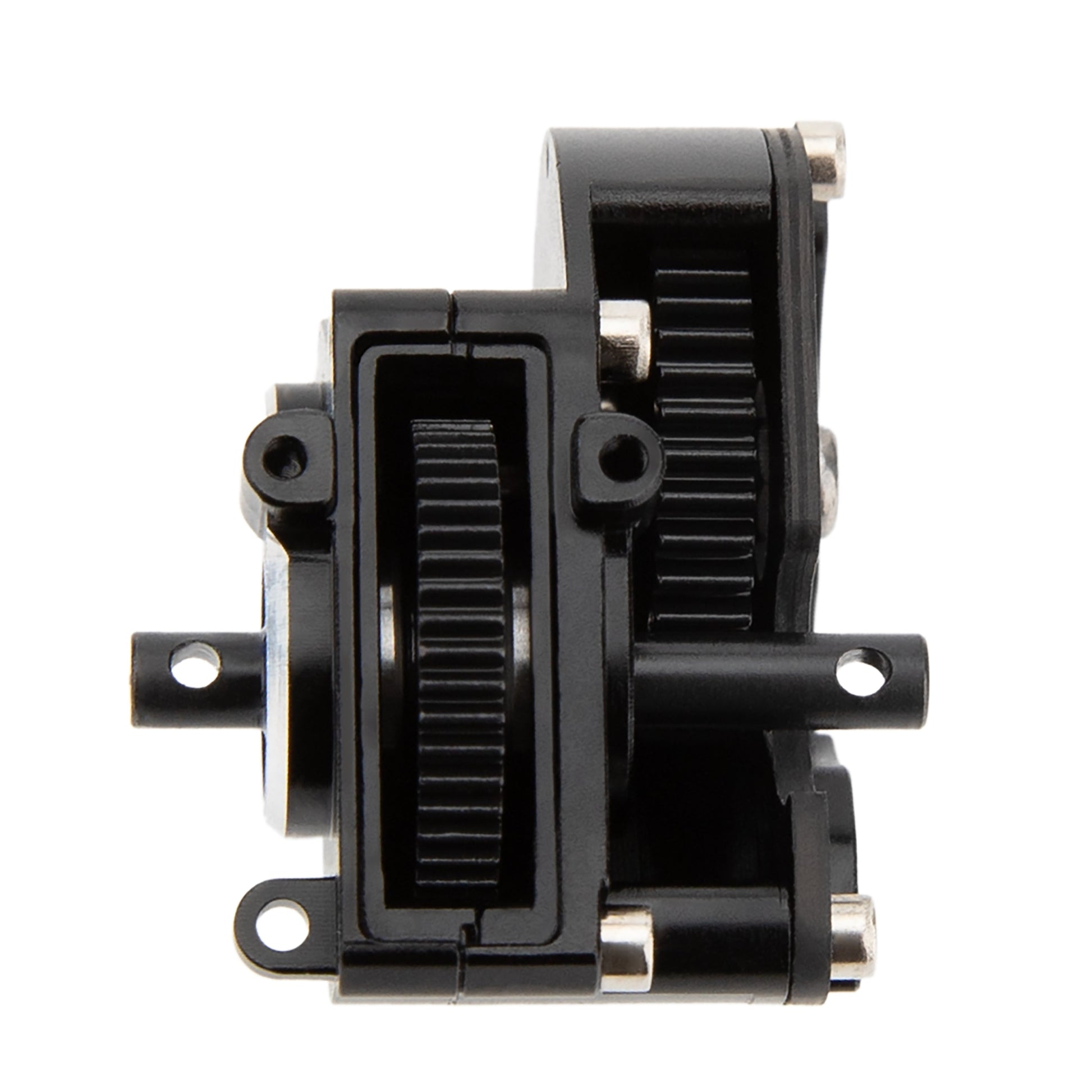

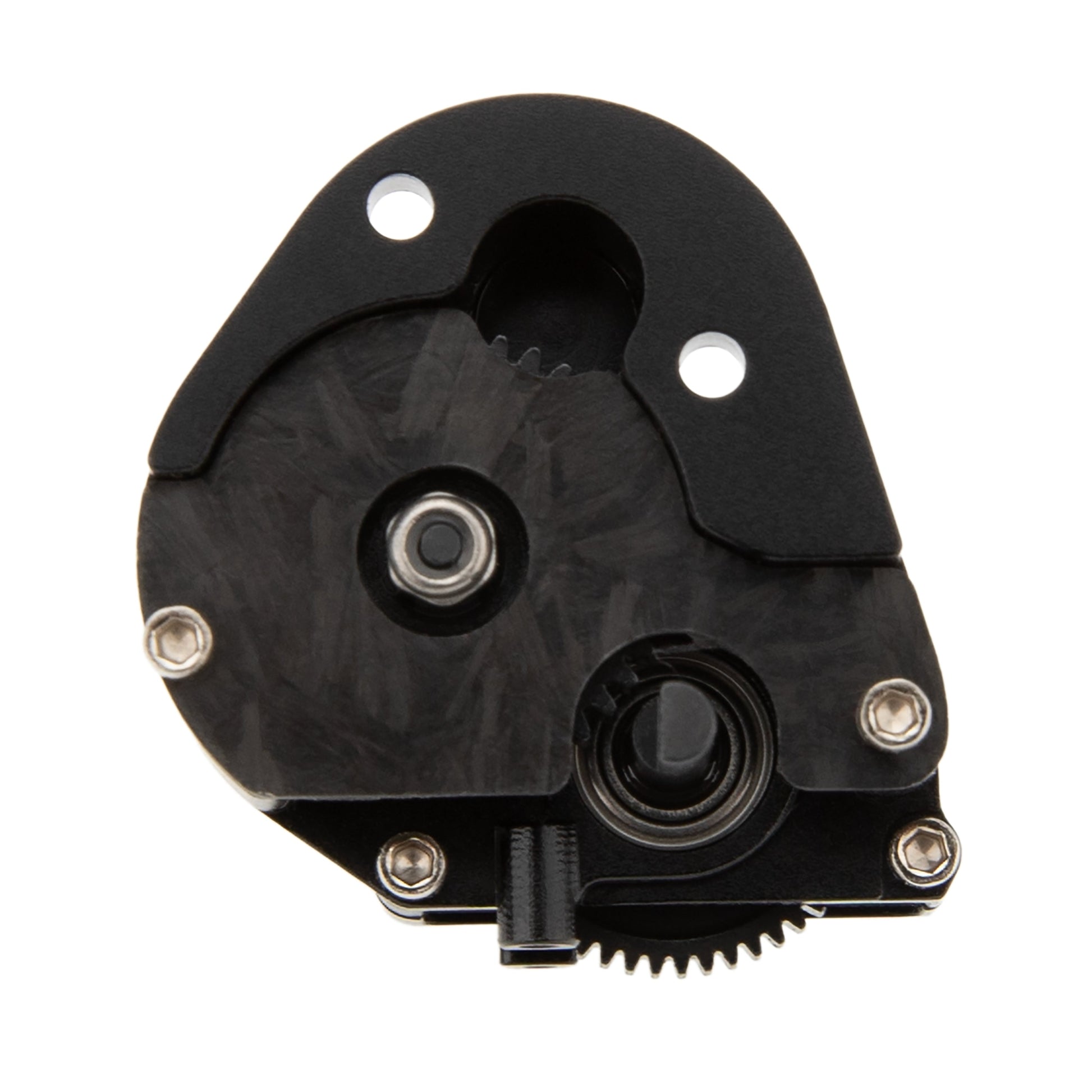

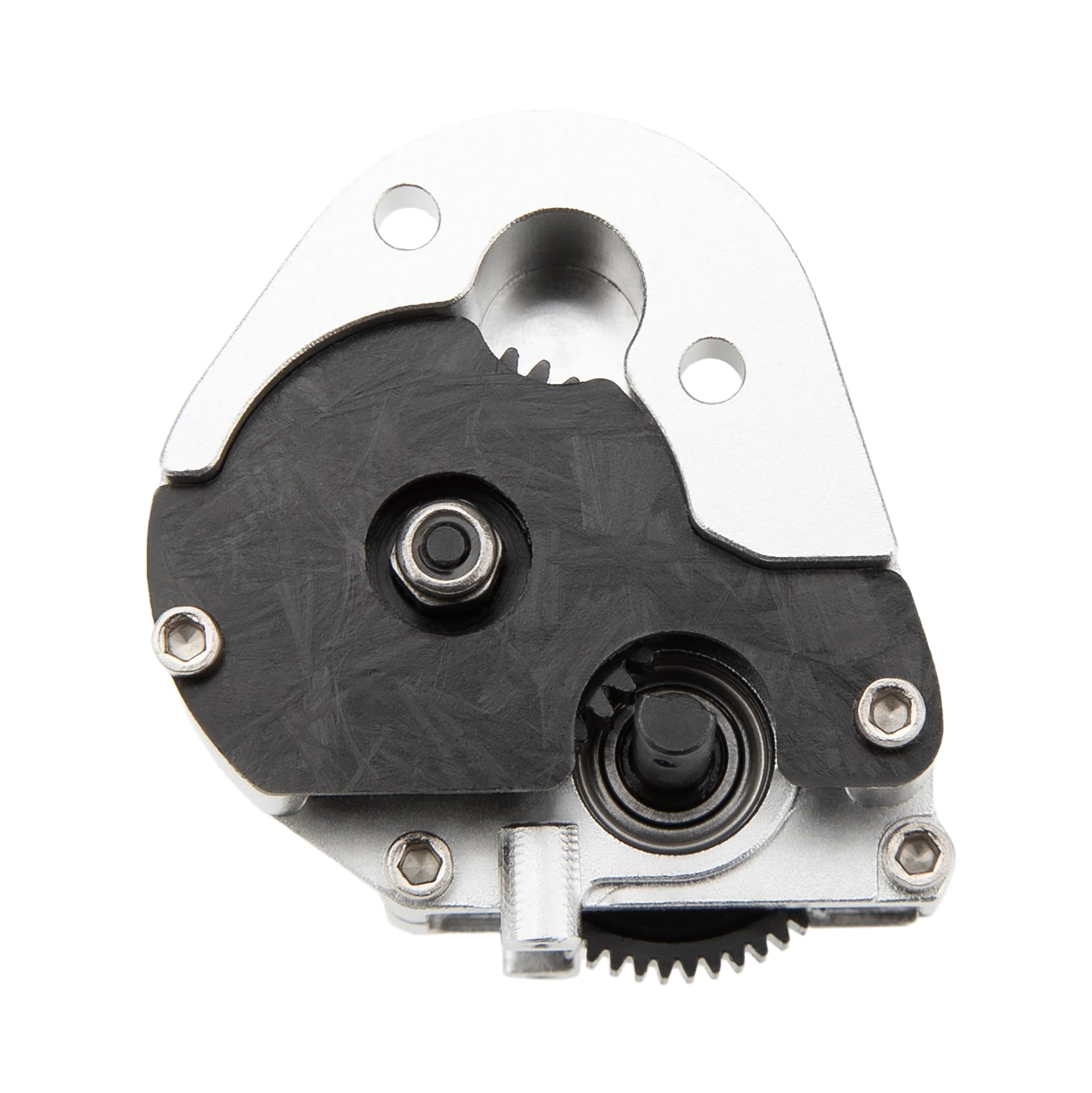

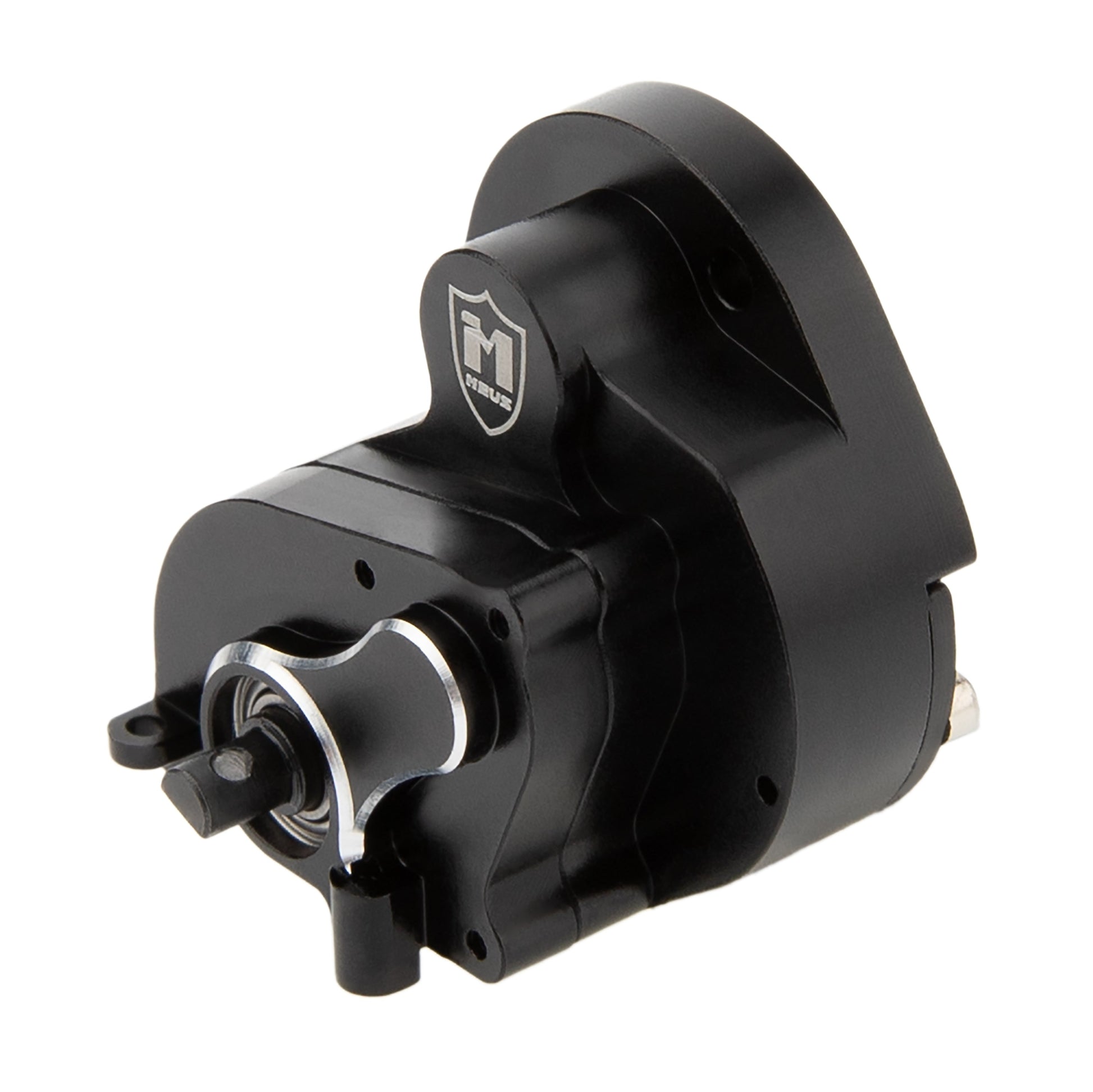

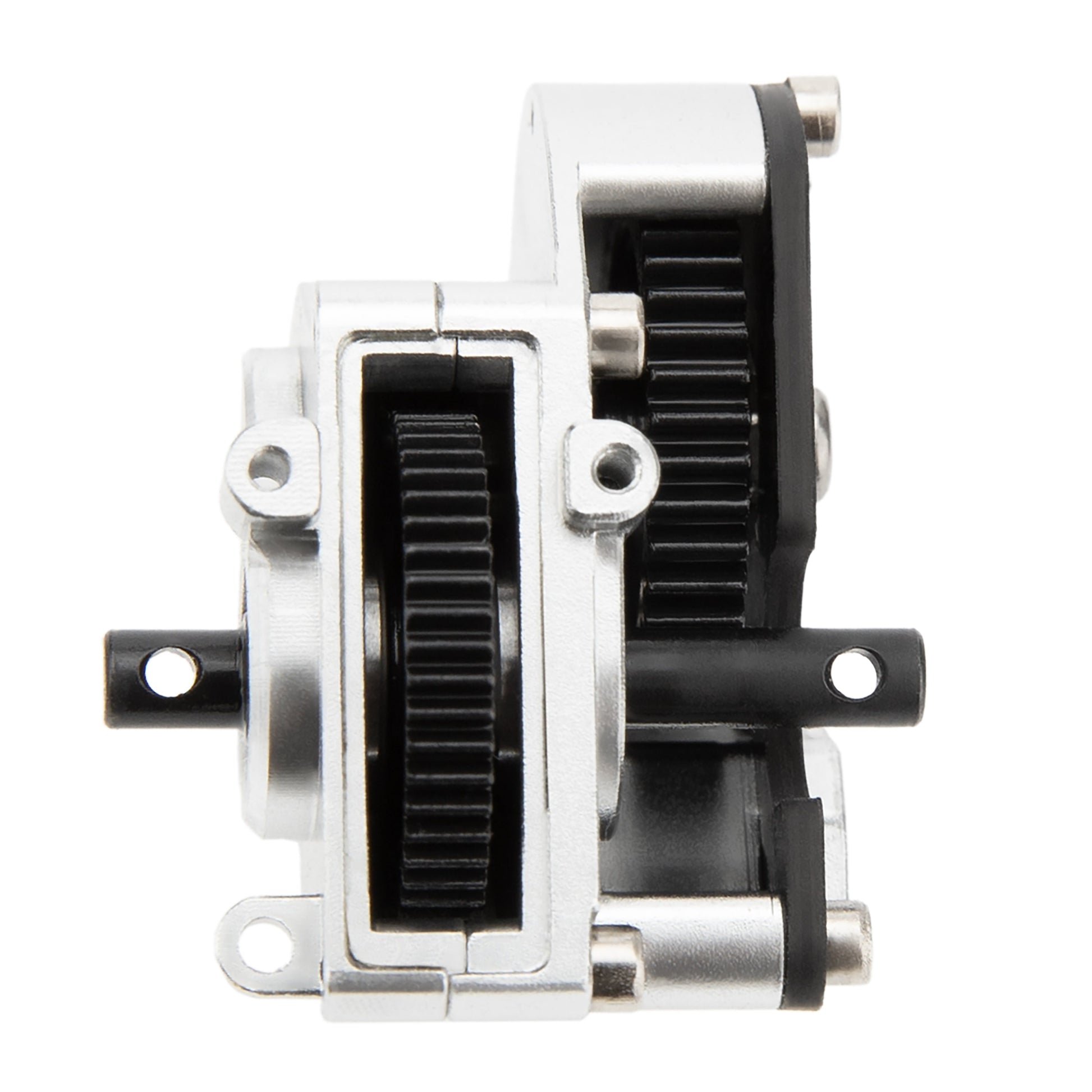

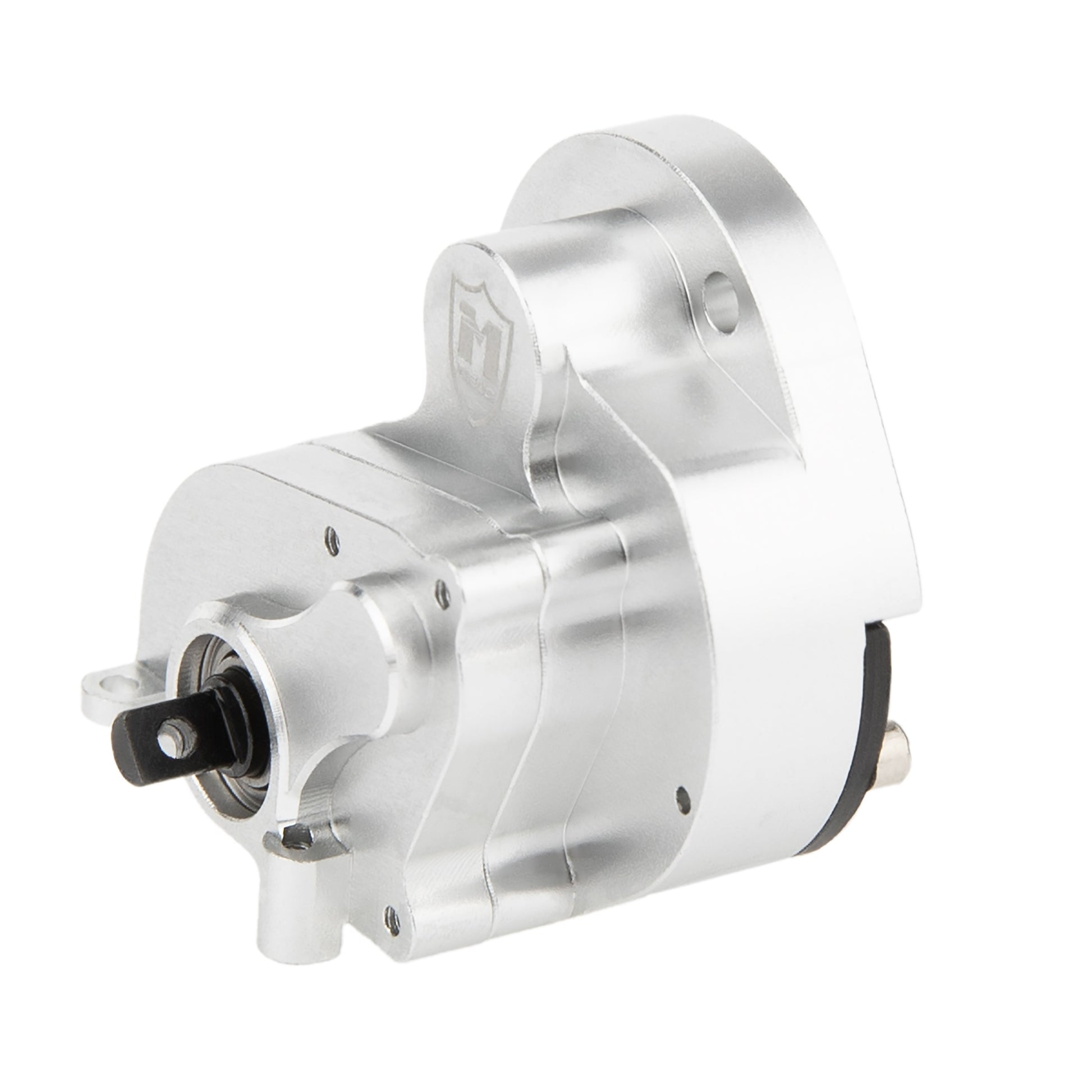

MEUS Racing SCX24 Brushless Transmission Aluminum Complete Gearbox for 1/24 SCX24 AX24

MEUS Racing SCX24 Brushless Transmission Aluminum Complete Gearbox for 1/24 Axial SCX24 AX24 RC Crawlers.

Key Features:

• 1. The brushless transmission features a more integrated design and lower center of gravity; it is Compatible with 1806 and 1621 motors, but not compatible with 2204 motors.

• 2. Only suitable for brushless motors with a 2mm output shaft.
• 3. Aluminum gearbox housing, hardened steel internal gears.

• 4. It helps prevent dirt and debris from entering the pinion and spur gears, resulting in a quiet and efficient drivetrain.

• 5. Suitable for 1/24 Axial SCX24 Deadbolt, C10, Wrangler, Bronco, Gladiator, AX24, etc. RC Crawlers.

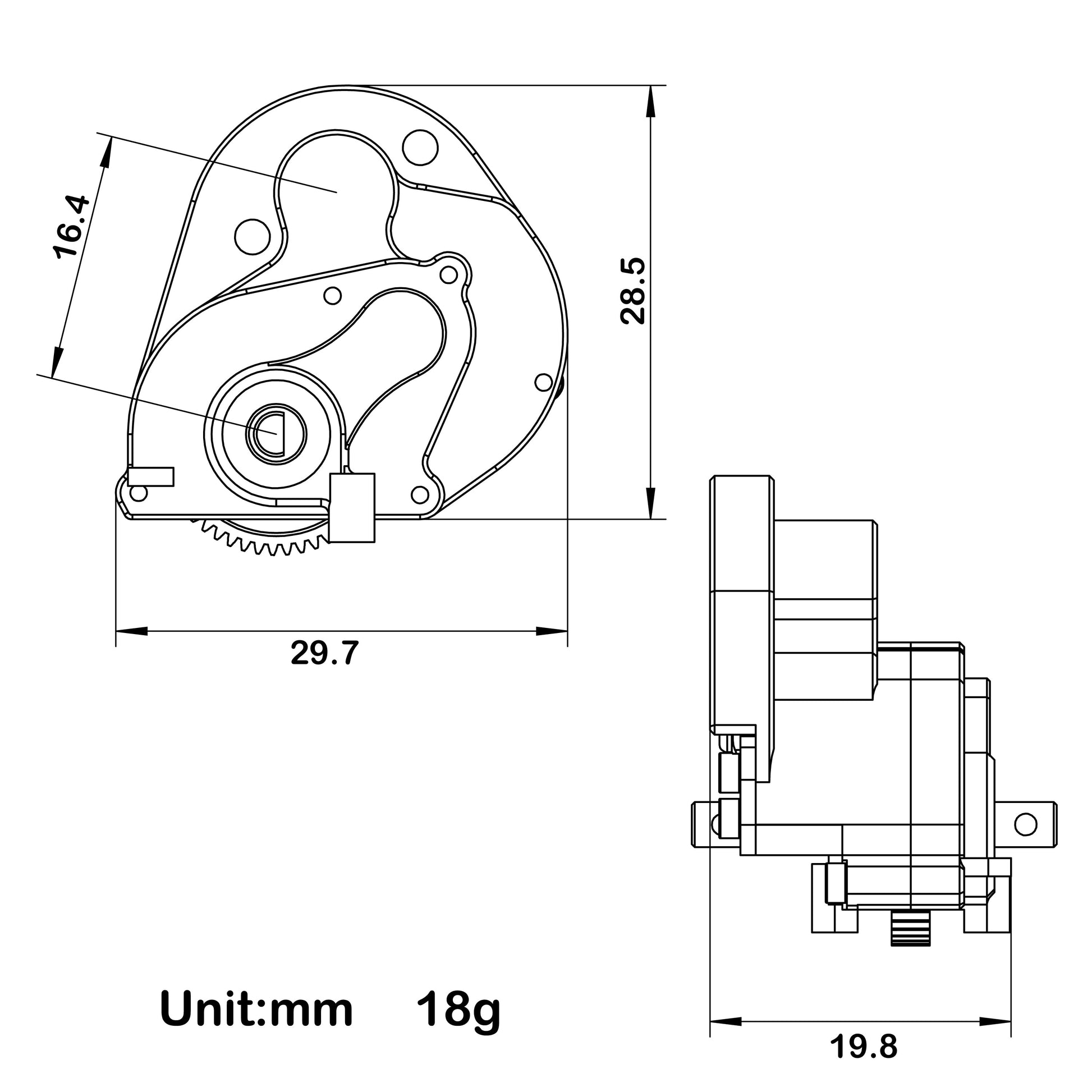

Specifications:

• Weight: 18.5g
• Transmission housing material: Aluminum alloy
• Transmission gears material: hardened steel
• Transmission gear set: 51T & 19T
• Spur gear: 0.4 Mod, 40T
• Pinion gear: 0.4 Mod, 11T

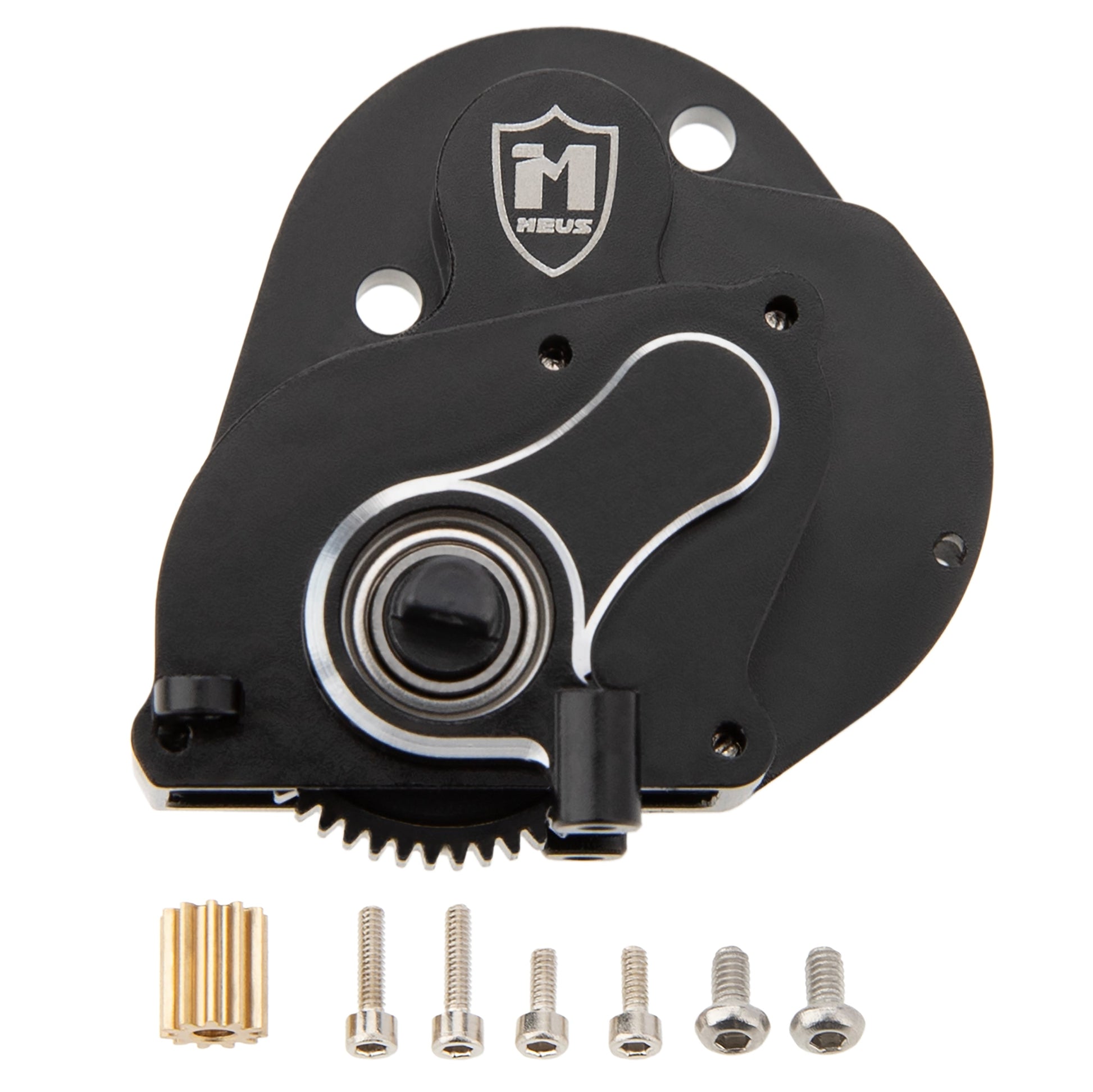

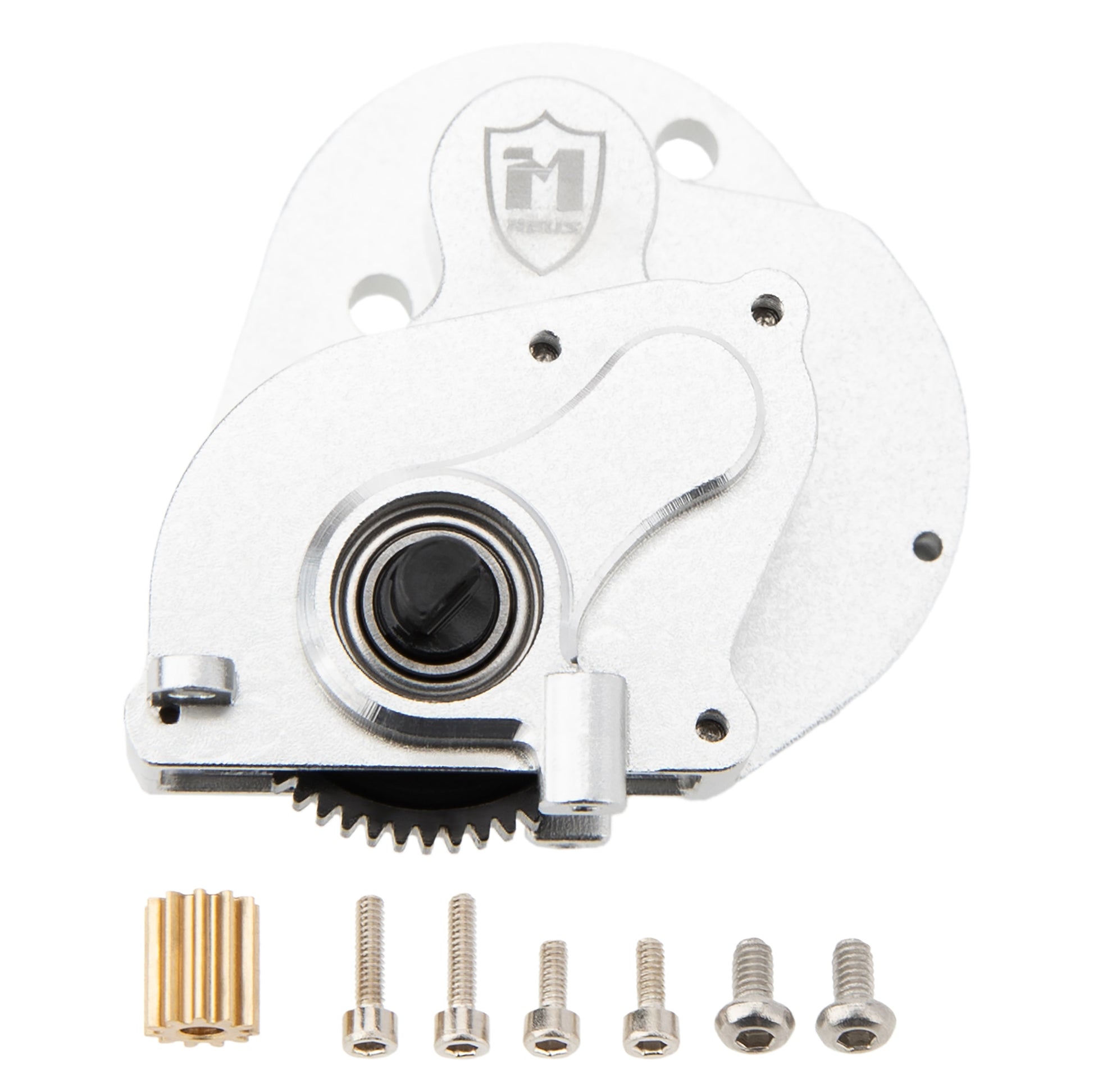

Package List:

• 1 × SCX24 Brushless Complete Transmission
• 1 × 11T Pinion gear
