MEUS Racing V2 8.5KG/12.5kg Brushless High Torque Micro Shifting Servo for 1/24 SCX24 1/18 TRX4M Upgrade Parts
SKU: MEUS-02-KY0344
MEUS Racing V2 8.5KG/12.5kg Brushless High Torque Micro Shifting Servo for 1/24 SCX24 1/18 TRX4M Upgrade Parts
MEUS Racing V2 8.5KG/12.5kg Brushless High Torque Micro Servo Shifting Servo Supports 8.4V for 1/24 SCX24 1/18 TRX4M RC Crawler Upgrade Parts.
Key Features:
- 1. Suitable for steering servo of SCX24 and TRX4M, and also compatible with shifting servo of 1/10 SCX10, TRX4 and 1/8 models.
- 2. Brushless motor provides high-speed response and high torque.
- 3. 8.5kg servo supports a voltage range of 6V-8.4V, providing 6-8.5KG torque.
- 4. 12.5kg servo supports a voltage range of 6V-8.4V, providing 8.5-12.5KG torque.
- 4. High-precision metal gears with high sensitivity, good stability, low noise, better accuracy, and longer service life.
Specifications:

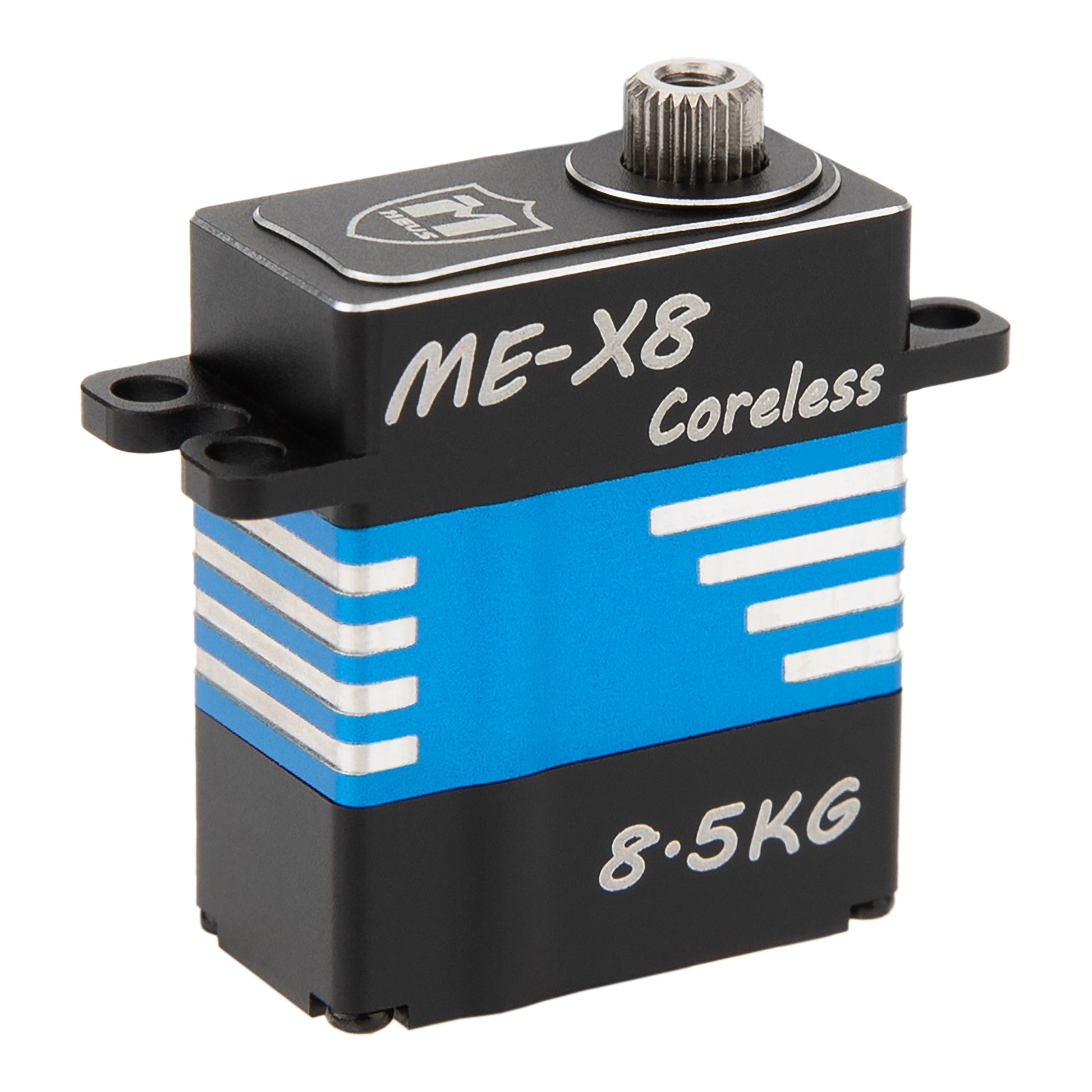

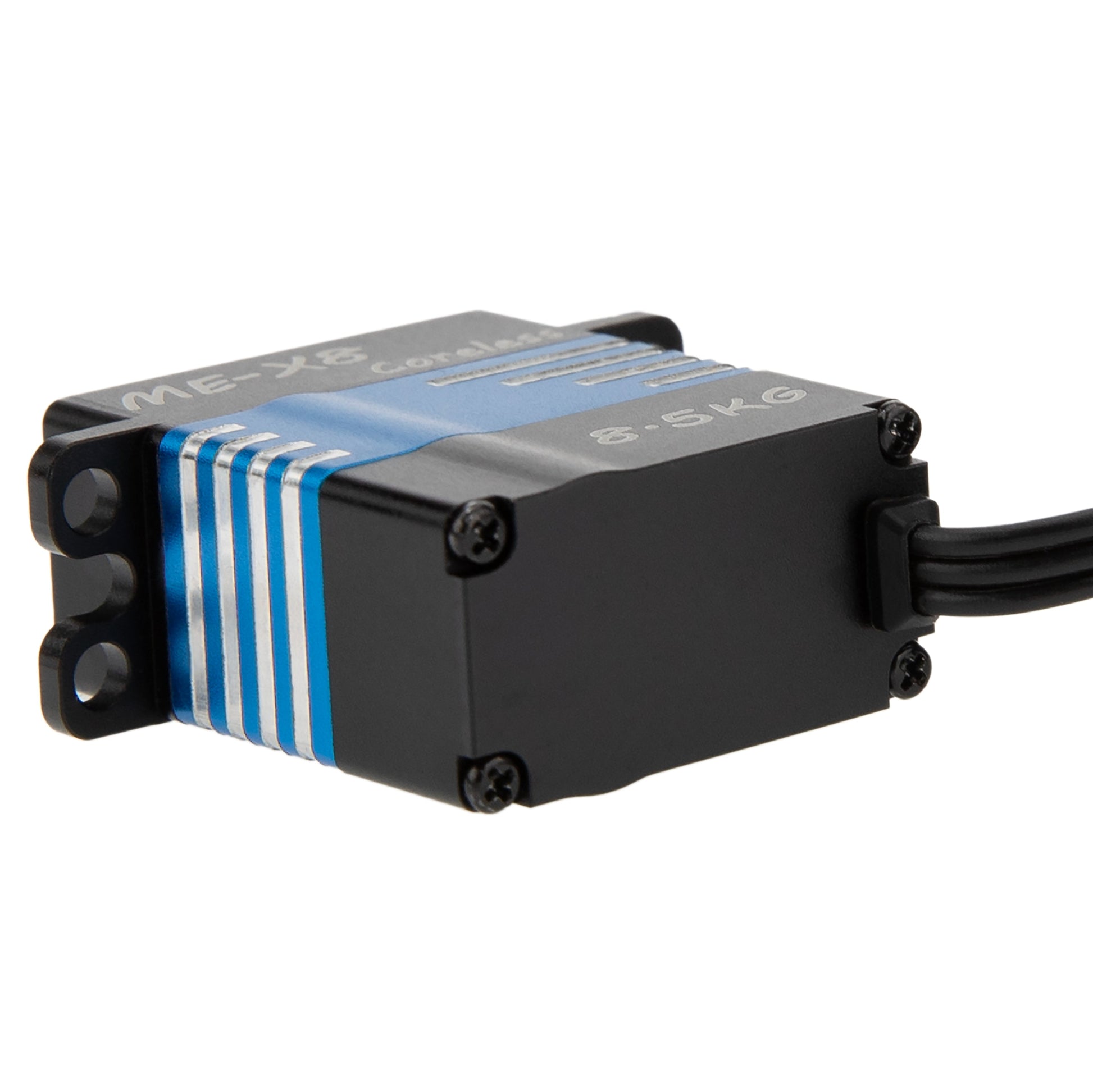

ME-X8 8.5KG Servo
- Operating Voltage：4.8~8.4VDC
- Max. Torque-6.0V：≥ 6 kg.cm
- Max. Torque-7.4V：≥ 7.5 kg.cm
- Max. Torque-8.4V：≥8.5 kg · cm
- No Load Speed-6.0V：≦0.07sec/60°
- No Load Speed-7.4V：≦0.06sec/60°
- No Load Speed-8.4V：≦0.058sec/60°
- Operating Travel Angle：90°+10°(500~2500 us)
- Motor Type: Coreless motor
- Horn Gear Spline：25T/∅4.90mm
- Gear Set Material： Metal gear
- Weight：21.6+ 0.5g
- Size：23*12*27mm

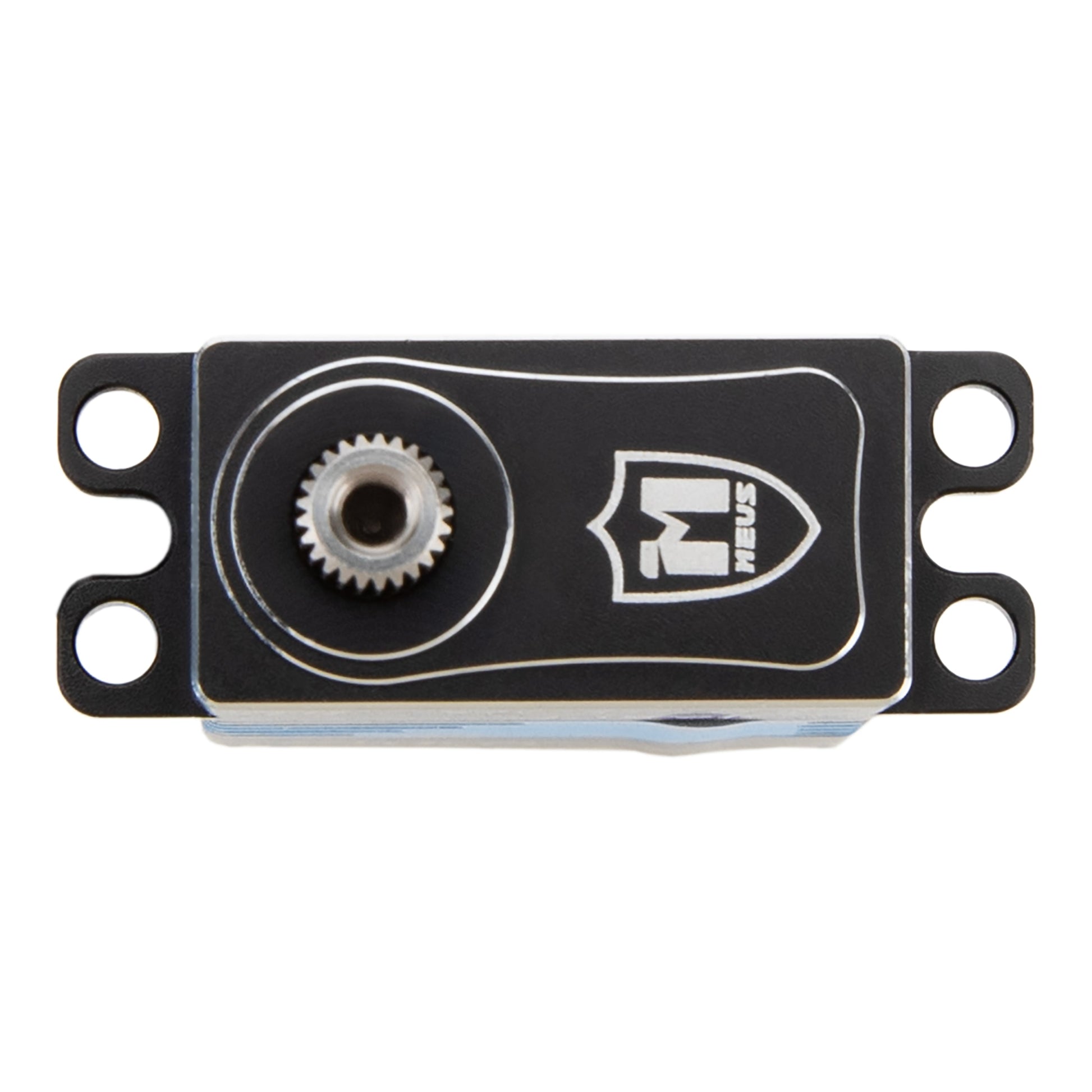

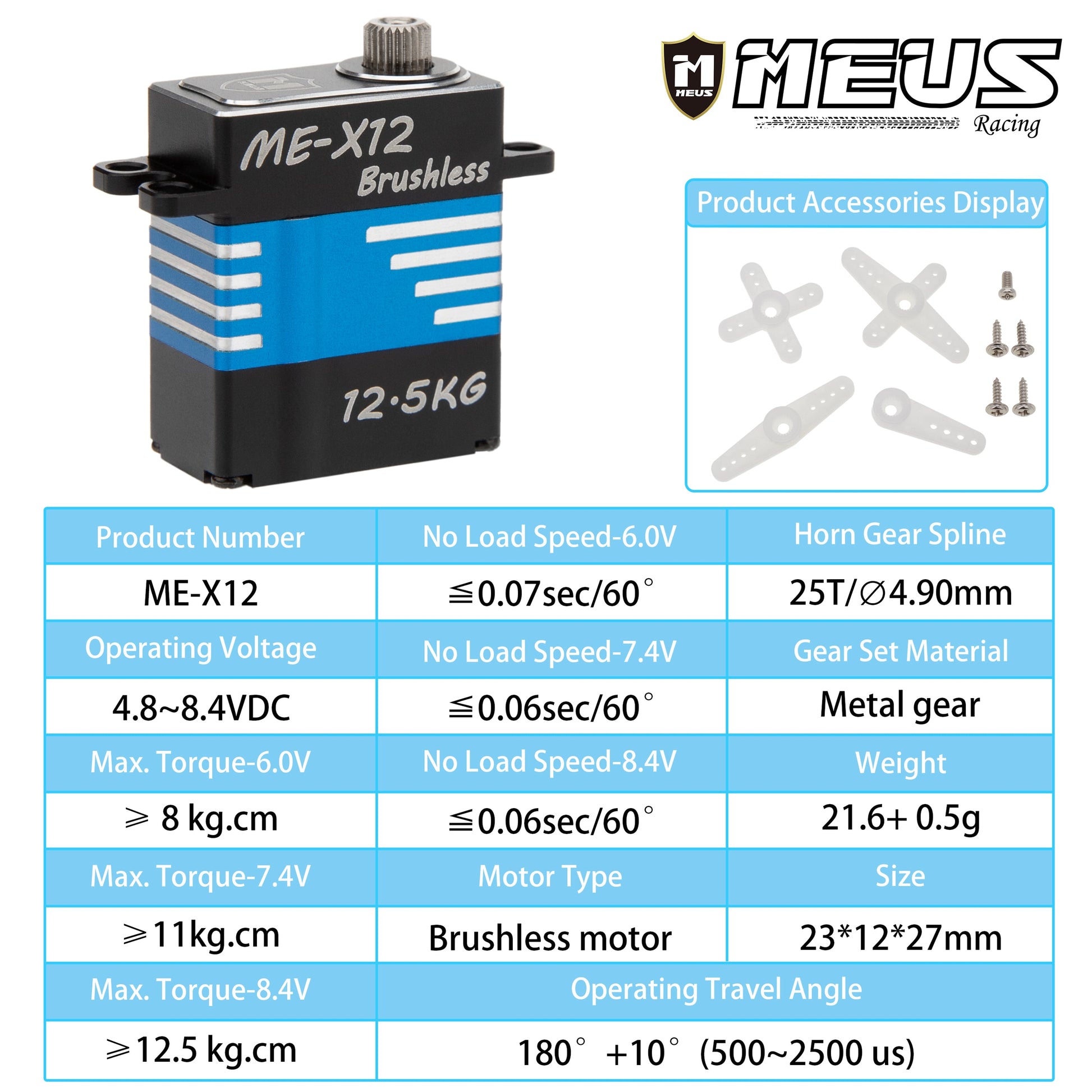

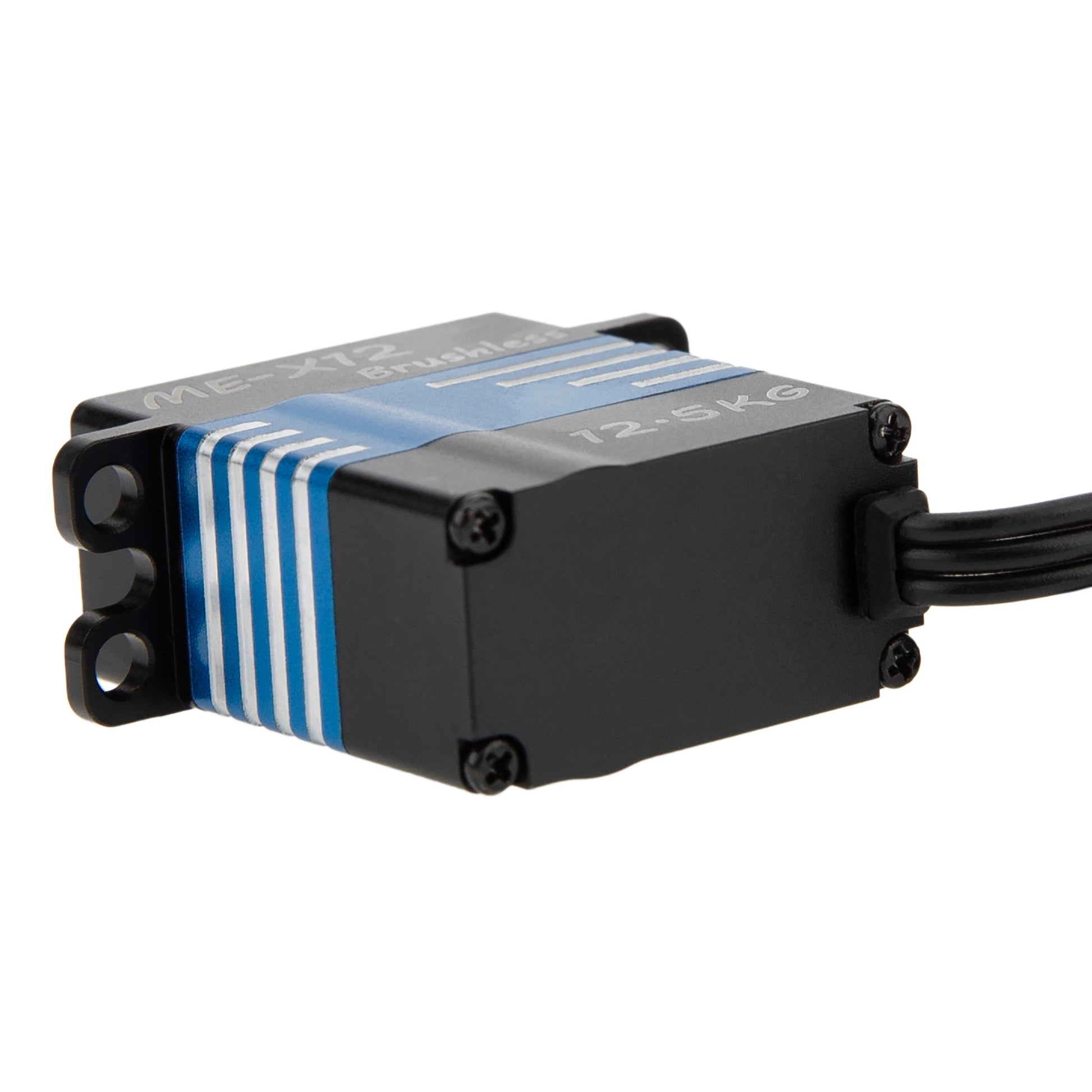

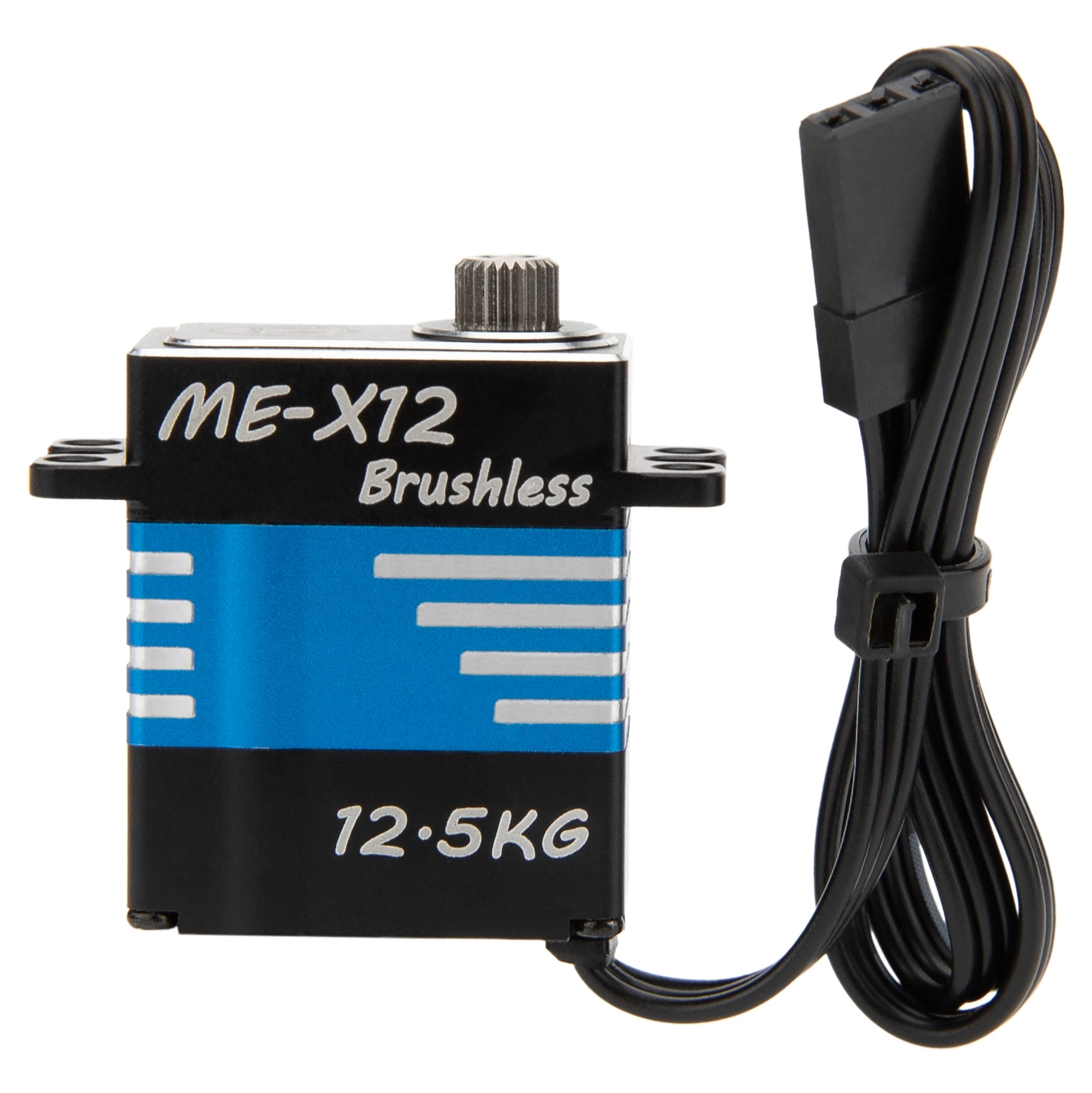

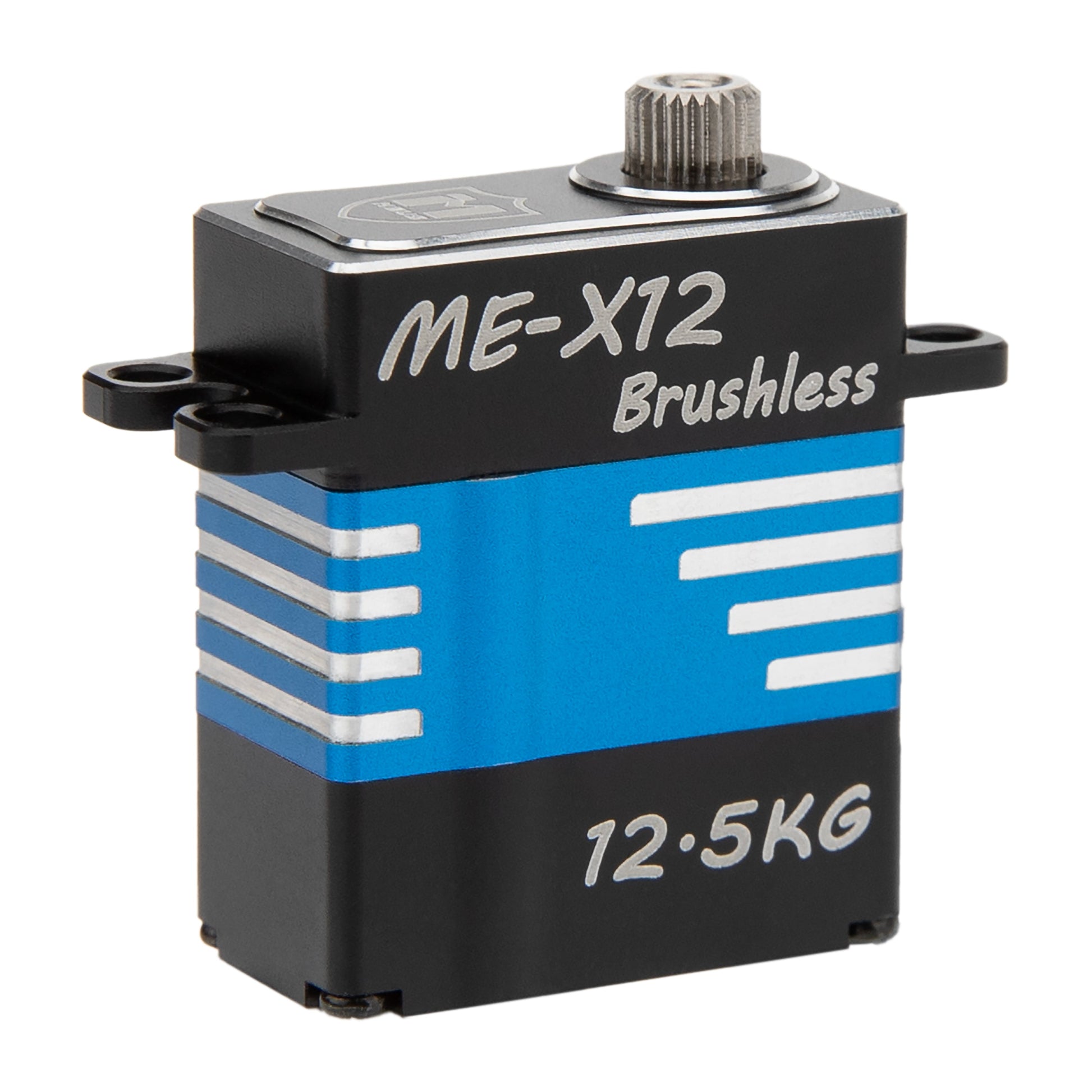

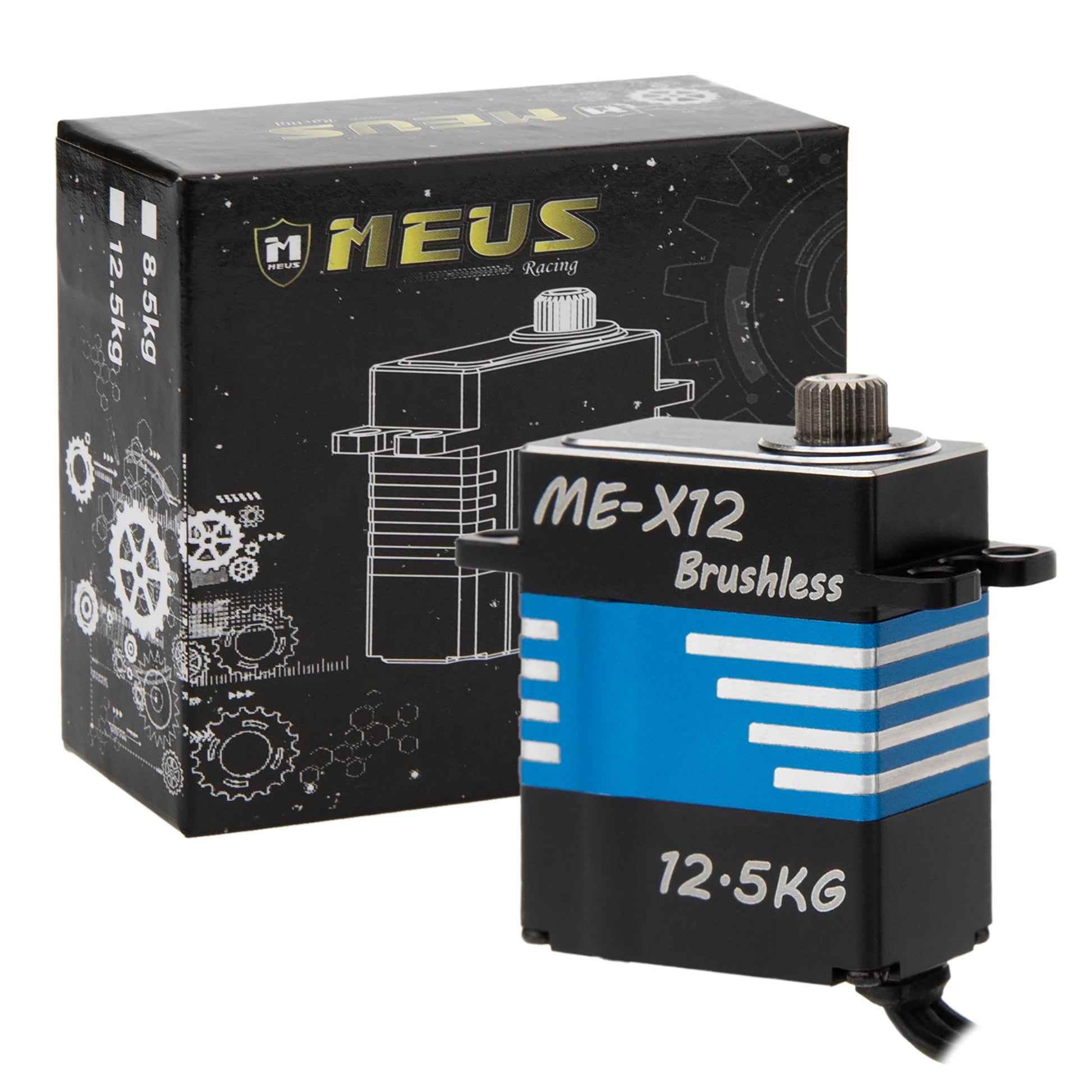

ME-X12 12.5kg Servo
- Operating Voltage：4.8~8.4VDC
- Max. Torque-6.0V：≥ 8 kg.cm
- Max. Torque-7.4V：≥ 11 kg.cm
- Max. Torque-8.4V：≥12.5 kg · cm
- No Load Speed-6.0V：≦0.07sec/60°
- No Load Speed-7.4V：≦0.06sec/60°
- No Load Speed-8.4V：≦0.06sec/60°
- Operating Travel Angle：90°+10°(500~2500 us)
- Motor Type: Brushless motor
- Horn Gear Spline：25T/∅4.90mm
- Gear Set Material: Metal gear
- Weight：21.6+ 0.5g

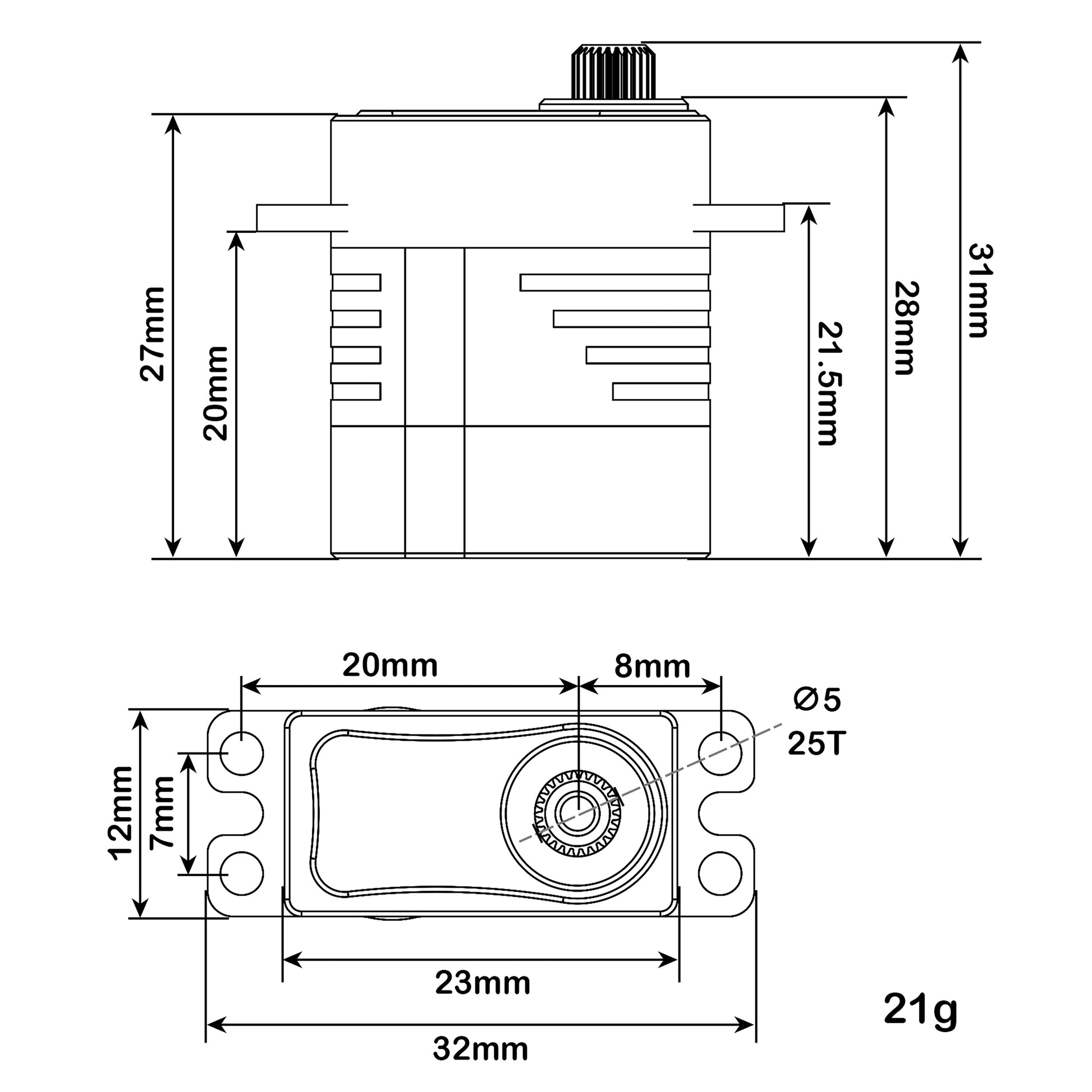

- Size：23*12*27mm

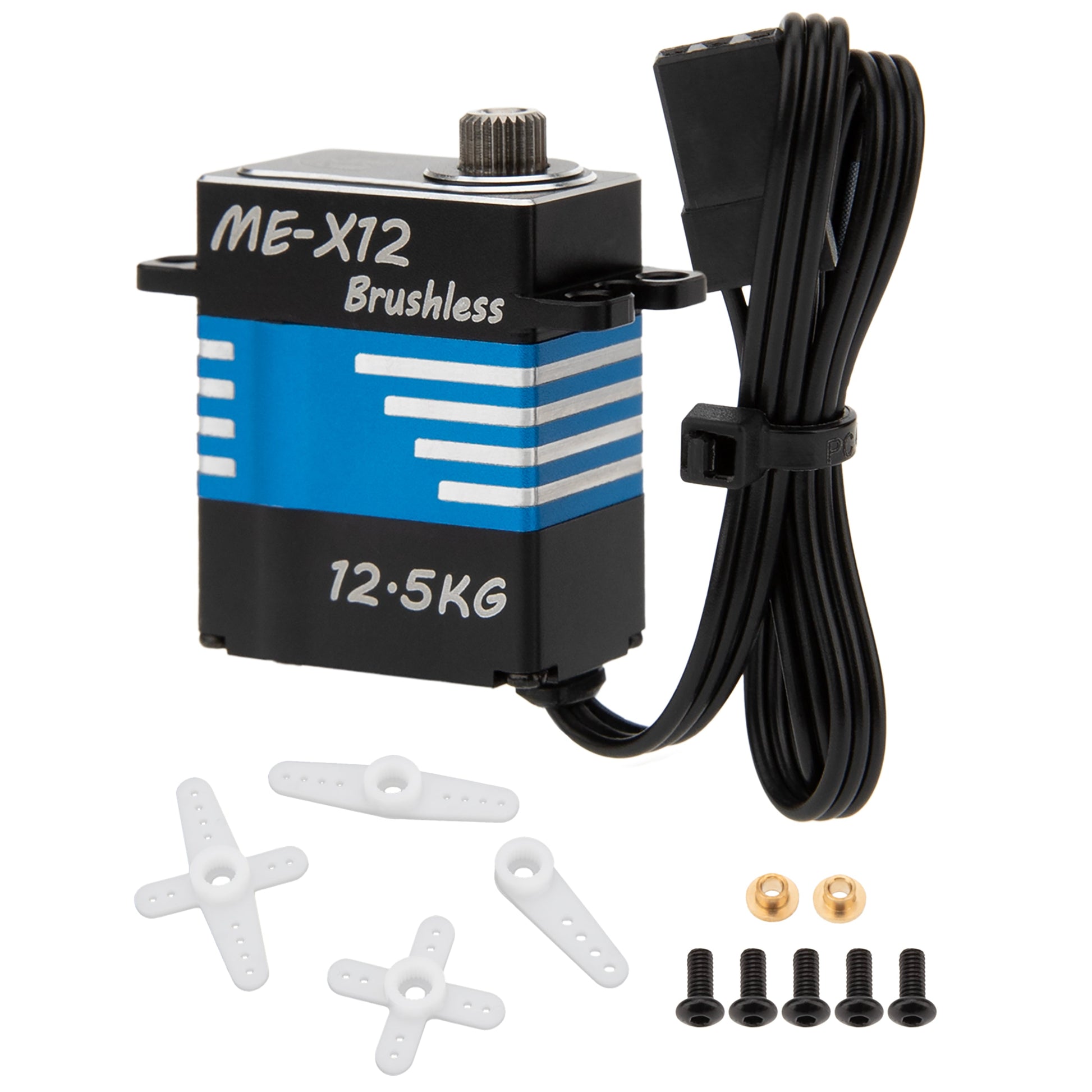

Package List:
- 1 × Brushless High Torque Micro Servo
- 1 × Servo Horn
